Improvement of Local Decrease in Material Thickness of Fuel Supply Pipe

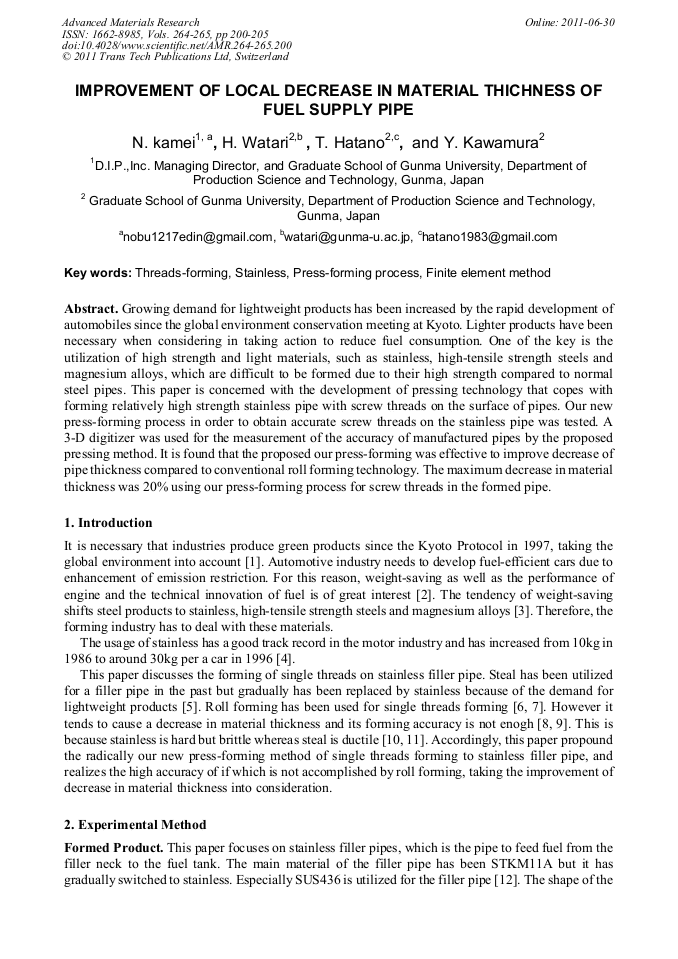

Article Preview

Abstract:

Growing demand for lightweight products has been increased by the rapid development of automobiles since the global environment conservation meeting at Kyoto. Lighter products have been necessary when considering in taking action to reduce fuel consumption. One of the key is the utilization of high strength and light materials, such as stainless, high-tensile strength steels and magnesium alloys, which are difficult to be formed due to their high strength compared to normal steel pipes. This paper is concerned with the development of pressing technology that copes with forming relatively high strength stainless pipe with screw threads on the surface of pipes. Our new press-forming process in order to obtain accurate screw threads on the stainless pipe was tested. A 3-D digitizer was used for the measurement of the accuracy of manufactured pipes by the proposed pressing method. It is found that the proposed our press-forming was effective to improve decrease of pipe thickness compared to conventional roll forming technology. The maximum decrease in material thickness was 20% using our press-forming process for screw threads in the formed pipe.

You might also be interested in these eBooks
Advances in Materials and Processing Technologies II View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 264-265)

Pages:

200-205

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.264-265.200

Citation:

Cite this paper

Online since:

June 2011

Authors:

Nobuyuki Kamei, Hisaki Watari, T. Hatano, Youichi Kawamura

Keywords:

Finite Element Model (FEM), Press-Forming Process, Stainless, Thread-Forming

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] H. Kubotera, Global environment and technology of plasticity: role of technology of plasticity in addressing global environmental issues, Journal of Materials Processing Technology, Volume 59 (1996), 213-217.

DOI: 10.1016/0924-0136(95)02133-7

Google Scholar

[2] S. Thibauda, N. Boudeaua, and J.C. Gelin, TRIP steel: Plastic behaviour modelling and influence on functional behaviour, Journal of Materials Processing Technology, Volume 177 (2006), 433-438.

DOI: 10.1016/j.jmatprotec.2006.03.234

Google Scholar

[3] H. Hayashi and T. Nakagawa, Recent trends in sheet metals and their formability in manufacturing automotive panels, Journal of Materials Processing Technology, Volume 46 (1994), 455-487.

DOI: 10.1016/0924-0136(94)90128-7

Google Scholar

[4] Y. Inoue, and M. Kikuchi, Present and Future Trends of Stainless Steel for Automotive Exhaust System, Nippon Steal Technical Report 378 (2003).

Google Scholar

[5] M. Kleiner, S. Chatti, and A. Klaus, Metal forming techniques for light weight construction, Journal of Materials Processing Technology, Volume 177 (2006), 2-7.

DOI: 10.1016/j.jmatprotec.2006.04.085

Google Scholar

[6] V. Ivanov, Profiling of Rollers for Thread Rolling, Journal of Materials Processing Technology, Volume 59 (1996), 333-336.

DOI: 10.1016/0924-0136(95)02159-0

Google Scholar

[7] A. Gontarz, Z, Pater, and W. Weronski, Head forging aspects of new forming process of screw spike, Journal of Materials Processing Technology, Volume 153-154 (2004), 736-740.

DOI: 10.1016/j.jmatprotec.2004.04.164

Google Scholar

[8] M. Salmani Tehrani, H. Moslemi Naeini, P. Hartley, and H. Khademizadeh, Localized edge backling in cold roll-forming of circular tube section. Journal of Materials Processing Technology, Volume 177 (2006), 617-620.

DOI: 10.1016/j.jmatprotec.2006.03.201

Google Scholar

[9] G. Nefussi, L. Proslier, and P. Gilormini, Simulation of the cold-roll forming of circular tubes, Journal of Materials Processing Technology, Volume 95 (1999), 216-221.

DOI: 10.1016/s0924-0136(99)00323-4

Google Scholar

[10] S. Kalpakjian, Manufacturing Processes for Engineering Materials, Addison-Wesley Publishing Company 3rd Edition (1997), 122-125.

Google Scholar

[11] T. Mori, and S. Kurimoto, Press formability of stainless steel and aluminum clad sheet, Journal of Materials Processing Technology, Volume 56 (1996), 242-253.

DOI: 10.1016/0924-0136(95)01838-7

Google Scholar

[12] M. Zhan, H. Yang, J. H. Zhang, Y. L. Xu, and F. Ma, 3D REM analysis of influence of rollerfeed rate on forming force quality of cone spinning, Journal of Materials Processing Technology, Volume 187-188 (2007), 486-491.

DOI: 10.1016/j.jmatprotec.2006.11.114

Google Scholar

[13] H. Yan, H. Bi, and Z. Xu, Microstructure texture and grain boundaries character distribution evolution of ferritic stainless steel during rolling process, Journal of Materials Processing Technology, Volume 209 (2009), 2627-2631.

DOI: 10.1016/j.jmatprotec.2008.06.012

Google Scholar

[14] Z. T. Wang, S. H. Zhang, Y. Xu, G. F. Luan, and G. R. Bai, Experiment study on the cariation of wall thickness during dieless drawing of stainless steel tube, Journal of Materials Processing Technology, Volume 120 (2002), 90-93.

DOI: 10.1016/s0924-0136(01)01171-2

Google Scholar

[15] Websdite: http: /www. k-dip. co. jp, Mail Address: dip@k-dip. co. jp.

Google Scholar

[16] Y. Abe, K. Mori, and O. Ebihara, Optimization of the distribution of wall thickness in the multistage sheet metal forming of wheel disks, Journal of Materials Processing Technology, Volume 125-126 (2002), 792-797.

DOI: 10.1016/s0924-0136(02)00394-1
