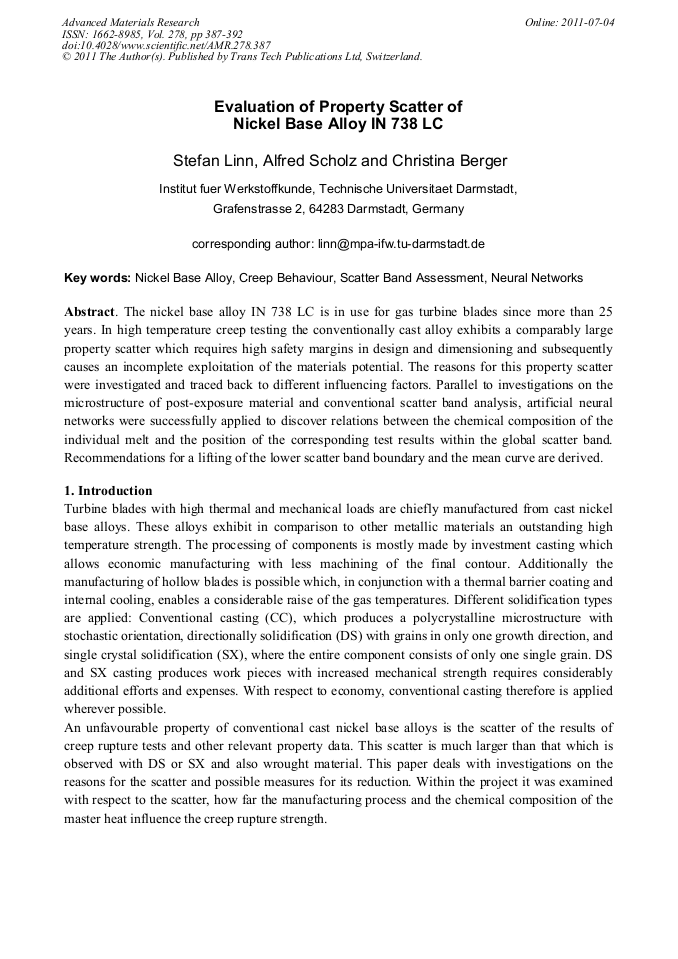

Evaluation of Property Scatter of Nickel Base Alloy IN 738 LC

Abstract:

The nickel base alloy IN 738 LC is in use for gas turbine blades since more than 25 years. In high temperature creep testing the conventionally cast alloy exhibits a comparably large property scatter which requires high safety margins in design and dimensioning and subsequently causes an incomplete exploitation of the materials potential. The reasons for this property scatter were investigated and traced back to different influencing factors. Parallel to investigations on the microstructure of post-exposure material and conventional scatter band analysis, artificial neural networks were successfully applied to discover relations between the chemical composition of the individual melt and the position of the corresponding test results within the global scatter band. Recommendations for a lifting of the lower scatter band boundary and the mean curve are derived.

By email View Pdf

You have full access to the following eBook

Read eBook

Info:

Periodical:

Advanced Materials Research (Volume 278)

Pages:

387-392

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.278.387

Citation:

Cite this paper

Online since:

July 2011

Authors:

Stefan Linn, Alfred Scholz, Christina Berger

Keywords:

Creep Behaviour, Neural Network (NN), Nickel Base Alloy, Scatter Band Assessment

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Citation:

References

[1] CEN/WS 11, Secretariat BSI: Measurement uncertainties in mechanical tests on metallic materials - Part3: The evaluation of uncertainties in creep testing, (2004).

Google Scholar

[2] Monkman, F. C. , Grant, N. J.: An empirical Relationship between Rupture Life and Minimum Creep Rate in Creep Rupture Tests. Proceedings ASTM 593-620, (1956).

Google Scholar

[3] Bhadeshia, H. K. D. H.: Neural Networks in Materials Science. ISIJ International, Vol. 39, No. 10, 966-979, (1999).

DOI: 10.2355/isijinternational.39.966

Google Scholar

[4] Balos, D., Klenk, A., Maile, K., Müller, W.: Anwendung von neuronalen Netzen zur Ermittlung schmelzenabhängigen Zeitstandverhaltens. 29. Vortragsveranstaltung FVW/FVHT, Tagungsband S. 137-148, Stahlinstitut VDEh, Düsseldorf, (2006).

Google Scholar

[5] Stein, K.: Die Gefügeausbildung und ihr Einfluss auf die mechanischen Eigenschaften der Nickelbasislegierung IN738LC in Abhängigkeit von gießtechnischer Erzeugung und Nachbehandlung. Diss. TH Darmstadt, (1983).

Google Scholar

[6] Müller, F., Scholz, A., Berger, C.: Creep Crack Behaviour of a Course Grain Nickel-base Super-Alloy. Submitted to: High Temperature Defect Assessment (HIDA) – 5 conference, University of Surrey, Guildford, 23-25. June (2010).

Google Scholar
