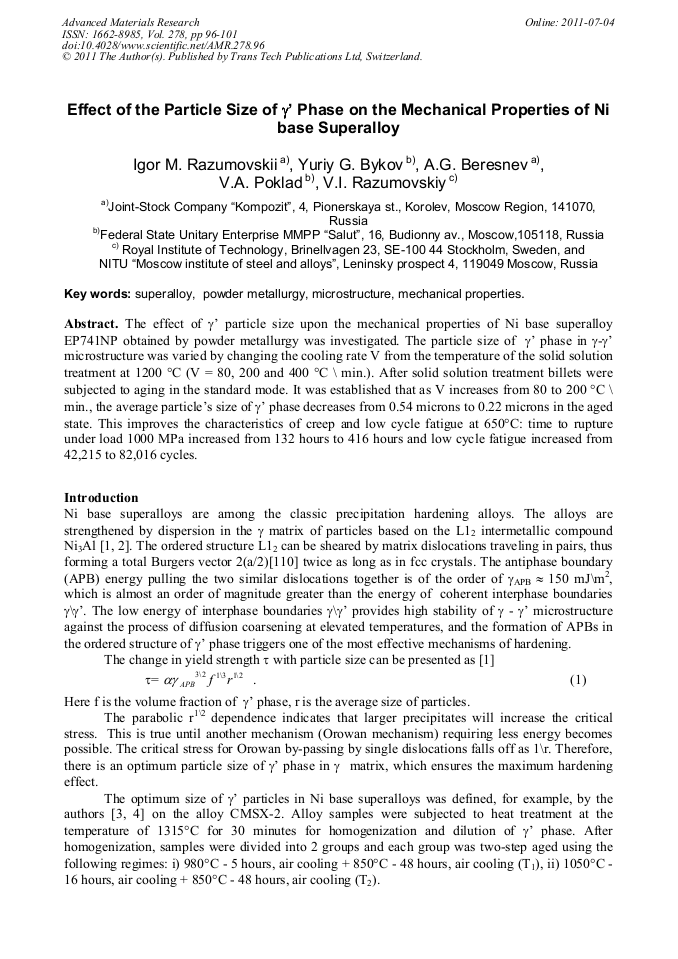

Effect of the Particle Size of γ’ Phase on the Mechanical Properties of Ni Base Superalloy

Abstract:

The effect of γ’ particle size upon the mechanical properties of Ni base superalloy EP741NP obtained by powder metallurgy was investigated. The particle size of γ’ phase in γ-γ’ microstructure was varied by changing the cooling rate V from the temperature of the solid solution treatment at 1200 °C (V = 80, 200 and 400 °C \ min.). After solid solution treatment billets were subjected to aging in the standard mode. It was established that as V increases from 80 to 200 °C \ min., the average particle’s size of γ’ phase decreases from 0.54 microns to 0.22 microns in the aged state. This improves the characteristics of creep and low cycle fatigue at 650°C: time to rupture under load 1000 MPa increased from 132 hours to 416 hours and low cycle fatigue increased from 42,215 to 82,016 cycles.

• Periodical: Advanced Materials Research (Volume 278)
• Pages: 96-101
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.278.96
• Online since: July 2011
• Authors: Igor M. Razumovskii, Yuriy G. Bykov, A.G. Beresnev, V.A. Poklad, V.I. Razumovskiy
• Keywords: Microstructure, Powder metallurgy, Superalloy

References

[1] J. -L. Strudel, in: Physical metallurgy, eds. by R.W. Cahn and P. Haasen, vol. III, the Netherlands, Elsevier Science (1996) p.2147.

[2] B.A. Kolachev, V.I. Elagin and V.I. Livanov. Metallovedenie i termicheskaya obrabotka cvetnyh metallov i splavov. Moscow: MISIS (2005) 328 p.

[3] P. Caron, T. Khan, Mat. Sci. Eng. 61 (1983) p.173.

[4] P. Caron, T. Khan, Aerosp. Sci. Technol. 3 (1999) p.513.

[5] А.I. Logacheva, A.G. Beresnev, A.V. Logunov, T.G. Bogdanova, A.V. Logachev. Aviakosmicheskaya tekhnika & tekhnologiya 2 (2008) p.35.

[6] J. Radavich, D. Furrer, T. Karneiro, J. Lemsky, in: Superalloys 2008, eds. by R.C. Reed et. al., TMS (The Minerals, Metals & Materials Society), 2008, p.63.

[7] J. Radavich, D. Furrer, in: Superalloys 2004, eds. by K.A. Green et. al. TMS (The Minerals, Metals & Materials Society), 2004, p.381.

[8] G.S. Garibov, A.V. Vostrikov, in: Proc. of the 2005 International Conference on Hot Isostatic Pressing. Paris, May 22-25, 2005, p.86.

[9] G.S. Garibov. Tekhnologiya legkikh splavov № 5-6 (2001) p.138.

[10] Y.G. Bykov, I.M. Razumovskii. Perspektivnye Materialy 1 (2010) p.10.

[11] R.D. Doherty, in: Physical metallurgy, eds. by R.W. Cahn and P. Haasen, vol. III, the Netherlands, Elsevier Science (1996) p.1438.

[12] L.G. Kornelyuk, A.Y. Lozovoi, I.M. Razumovskii. Phil. Mag. 77 (1998) p.465.

[13] S.Z. Bokshtein, N.V. Migunova, I.M. Razumovskii. Fizika metallov i metallovedenie 9 (1990) p.191.

[14] R. Valiev, L. Kornelyuk, I. Razumovskii. Dokl. Akad. Nauk SSSR 320 (1991) p.322.

[15] L. Kornelyuk, R. Valiev, V. Sergeev, I. Razumovskii. Mater. Sci. Eng. A. 167 (1993).
