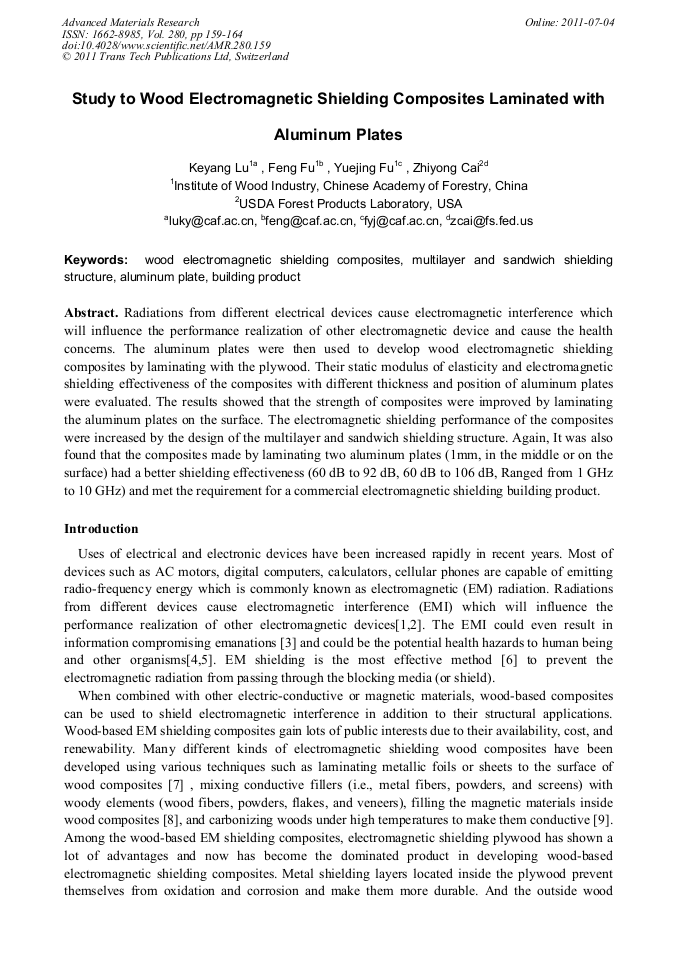

Study to Wood Electromagnetic Shielding Composites Laminated with Aluminum Plates

Abstract:

Radiations from different electrical devices cause electromagnetic interference which will influence the performance realization of other electromagnetic device and cause the health concerns. The aluminum plates were then used to develop wood electromagnetic shielding composites by laminating with the plywood. Their static modulus of elasticity and electromagnetic shielding effectiveness of the composites with different thickness and position of aluminum plates were evaluated. The results showed that the strength of composites were improved by laminating the aluminum plates on the surface. The electromagnetic shielding performance of the composites were increased by the design of the multilayer and sandwich shielding structure. Again, It was also found that the composites made by laminating two aluminum plates (1mm, in the middle or on the surface) had a better shielding effectiveness (60 dB to 92 dB, 60 dB to 106 dB, Ranged from 1 GHz to 10 GHz) and met the requirement for a commercial electromagnetic shielding building product.

• Periodical: Advanced Materials Research (Volume 280)
• Pages: 159-164
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.280.159
• Online since: July 2011
• Authors: Ke Yang Lu, Feng Fu, Yue Jin Fu, Zhi Yong Cai
• Keywords: Aluminum Plate, Building Product, Multilayer Shielding Structure, Sandwich Shielding Structure, Wood Electromagnetic Shielding Composites

References

[1] Gabriella T, Marta P, Federica S, et al. Electromagnetic interference and cochlear implants. Ann Ist Super Sanita. 3(3): 241-247(2007).

[2] Johnson F, Electromagnetic Interference in Implantable Rhythm Devices - The Indian Scenario. Indian Pacing Electrophysiology Journal. 2(3): 64-66(2002).

[3] Kuhn, M. G, Security limits for compromising emanations. Workshop on Cryptographic Hardware and Embedded Systems, Edinburgh, Scotland, 265-279(2005).

DOI: 10.1007/11545262_20

[4] Roland J. L, Richard A. N, Health risks associated with residential exposure to extremely low frequency electromagnetic radiation. Journal of Community Health. 17(5): 291-301(1992).

DOI: 10.1007/bf01324359

[5] Ozge S, Health effects of base stations. 11th International Symposium on Electromagnetic Fields in Electrical Engineering , Maribor, Slovenia, 18-20(2003).

[6] Clayton R. P, Introduction to electromagnetic Compatibility, 2nd Edition, 713-718(Published by John Wiley & Sons, Inc., Hoboken, New Jersey, 2006).

[7] Chohachiro N, Electromagnetic Shielding Particleboard with Nickel-Plated Wood Particles. Journal of Porous Materials. (6): 247-254(1999).

[8] Zhang X. J, Liu Y. X, Study on the wood fiber-copper wire net composite MDF. China Forest Products Industry. 31(5): 15~19(2004).

[9] Wang S. Y, Hung C. P, Electromagnetic shielding efficiency of the electric field of charcoal from six wood species. The Japan Wood Research Society. 49: 450-454(2003).

DOI: 10.1007/s10086-002-0506-6

[10] Luo Z. H, Zhu J. Q, Composition of wire net and wood veneer. China Wood Industry. 14(6): 25-27(2000).

[11] John J. T, Metal fibers and fabrics as shielding materials for composites, missiles and airframes. Electromagnetic Compatibility. (19): 5-7(1990).

DOI: 10.1109/isemc.1990.252722

[12] Chenga K. B, Ramakrishna S., Lee K.C. Electromagnetic shielding effectiveness of copper/glass fiber knitted fabric reinforced polypropylene composites. Composites: Part A. (31) 1039~1045(2000).

DOI: 10.1016/s1359-835x(00)00071-3

[13] Schelkunoff S A, Transmission Theory of Plane Electromagnetic Waves. Proceedings of the IRE. 25(11): 1457-1492(1937).

DOI: 10.1109/jrproc.1937.228764

[14] Wu J. J, Mclachlan D. S, Percolation exponents and thresholds in two nearly ideal anisotropic continuum systems. Physic A. 241: 360～366(1997).

DOI: 10.1016/s0378-4371(97)00108-8

[15] Wu J. H, Raffaele Z, Combined use of magnetic and electrically conductive fillers in a polymer matrix for electromagnetic interference shielding. Journal of Electronic Materials. 37(8): 1088-1094 (2008).

DOI: 10.1007/s11664-008-0486-4

[16] Du S. G, Wang B. P, Cao Y. J, Study of electromagnetic interference shielding effectiveness of electro-conductive polymer composite. Fiber Reinforced Plastics/Composite. 6: 19-21(2000).
