Preparation of AlN/Diamond Film Structure for High Frequency SAW Devices

Abstract:

Freestanding diamond film was prepared by hot filament chemical vapor deposition (HFCVD) method. Inter-Digital Transducer (IDT) was formed on the nucleation side of freestanding diamond film by photolithography technique. Then piezoelectric AlN film was deposited by RF reactive magnetron sputtering to obtain the AlN/diamond film structure. Surface morphologies of the nucleation side and the IDT were characterized by atomic force microscopy (AFM) and optical microscopy. The results indicated that the surface of nucleation side was very smooth and the IDT was of high quality without discontinuity and short circuit phenomenon. Room temperature frequency dependence of dielectric constant and dielectric loss for freestanding diamond film suggest a good stability of dielectric properties in high frequency region for diamond film. X-ray diffraction (XRD) pattern of the structure of AlN /diamond film structure showed a strong diffraction peak of AlN (002), which indicated that as-sputtered AlN film was highly c-axis oriented.

You might also be interested in these eBooks

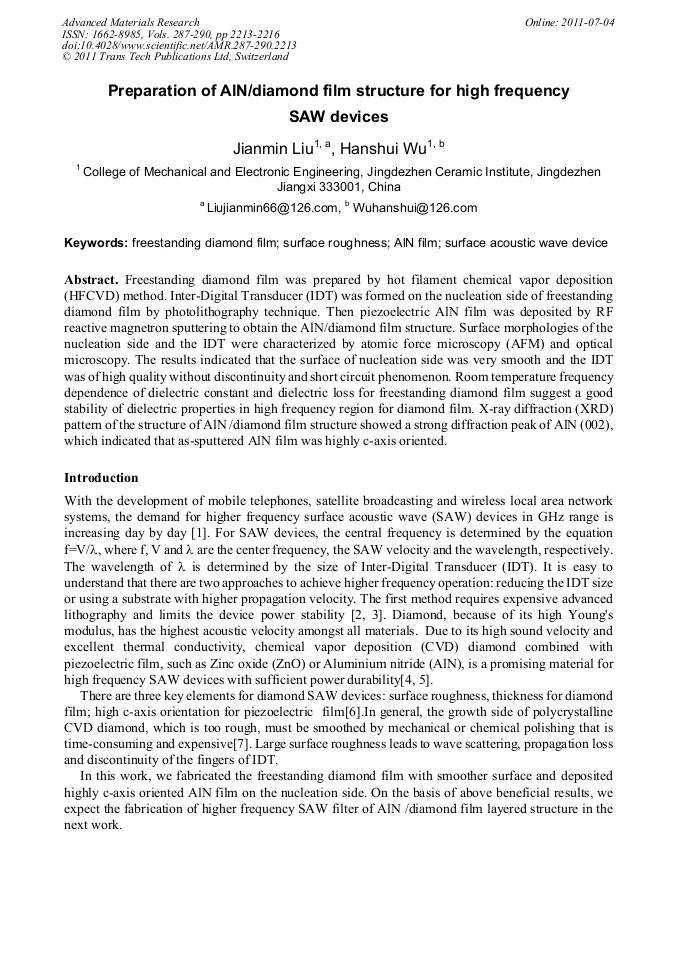

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 287-290)

Pages:

2213-2216

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.287-290.2213

Citation:

Cite this paper

Online since:

July 2011

Authors:

Jian Min Liu, Han Shui Wu

Keywords:

AlN Film, Freestanding Diamond Film, Surface Acoustic Wave Device, Surface Roughness (SR)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] D. Elhadj，R. Denis: Jpn.J.Appl.Phys. Vol. 42 (2003), p.572.

Google Scholar

[2] S. Shikate, H. Nakahate, K. Higaki, et al: IEEE Ultrasonics Symp .Proc, 1993, p.277.

Google Scholar

[3] S. F. Wang, Y. F. Hsuu, J. C. Pu, et al： Materials Chemistry and Physics Vol. 85 (2004), p.432.

Google Scholar

[4] F. Benedic, M. B. Assouar, F. Mohasseb: Diamond and Related Materials Vol. 13(2004), p.347.

Google Scholar

[5] H. Seos, W. C. Shin, J. S. PARK: Thin Solid Films.Vol. 416 (2002), p.190.

Google Scholar

[6] T. Lamara, M. Belmahi, O. Elmazria, et al: Diamond and Related Materials. Vol. 13 (2004), p.581.

Google Scholar

[7] F. Benedic, M. B. Assouar, F. Mohasseb, et al: Diamond and Related Materials. Vol. 13 (2004), p.347.

Google Scholar

[8] M Vijayakumar: Solid State Ionics. Vol. 148(2002), p.329.

Google Scholar

[9] I. W. Kim, D. S. Lee , S. H. Kang, et al: Thin solid films. Vol. 441 (2003), p.115.

Google Scholar

[10] C. J. Tang, A. J. Neves, A. J. S. Fernandes: Diamond and Related Materials. Vol. 12(2003), p.251.

Google Scholar

[11] T Shiosaki, T. Yamamoto, T. Oda, et al: Appl.phys.lett. Vol. 36 (1980), p.643.

Google Scholar
