Hoop Stress Analysis of High Grade Heavy Wall Thickness Pipe in Hydrostatic Test

Abstract:

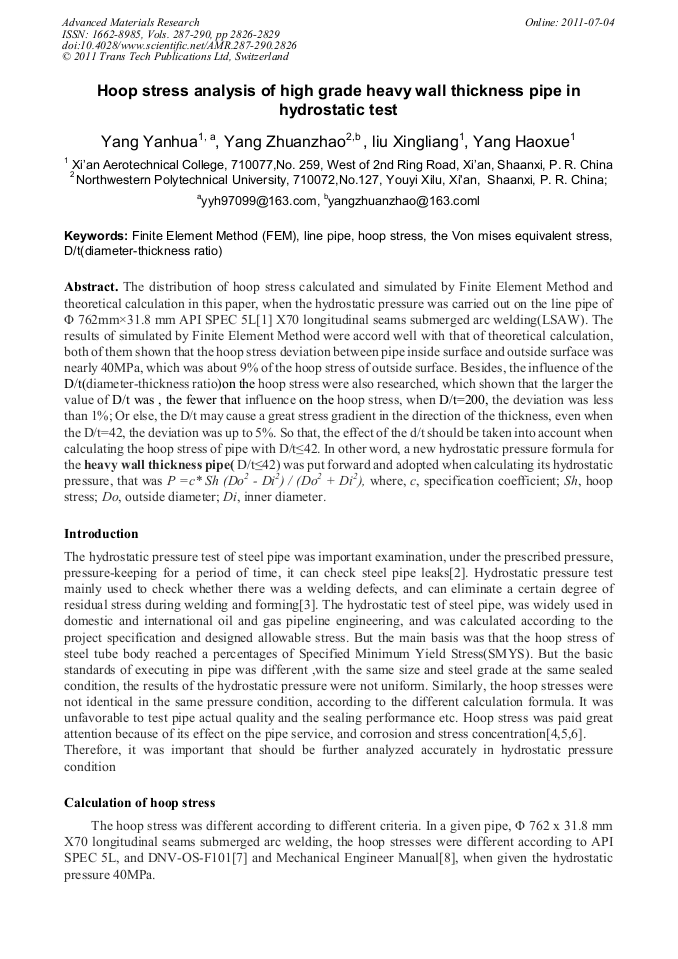

The distribution of hoop stress calculated and simulated by Finite Element Method and theoretical calculation in this paper, when the hydrostatic pressure was carried out on the line pipe of Φ 762mm×31.8 mm API SPEC 5L[1] X70 longitudinal seams submerged arc welding(LSAW). The results of simulated by Finite Element Method were accord well with that of theoretical calculation, both of them shown that the hoop stress deviation between pipe inside surface and outside surface was nearly 40MPa, which was about 9% of the hoop stress of outside surface. Besides, the influence of the D/t(diameter-thickness ratio)on the hoop stress were also researched, which shown that the larger the value of D/t was , the fewer that influence on the hoop stress, when D/t=200, the deviation was less than 1%; Or else, the D/t may cause a great stress gradient in the direction of the thickness, even when the D/t=42, the deviation was up to 5%. So that, the effect of the d/t should be taken into account when calculating the hoop stress of pipe with D/t≤42. In other word, a new hydrostatic pressure formula for the heavy wall thickness pipe( D/t≤42) was put forward and adopted when calculating its hydrostatic pressure, that was P =c* Sh (Do² - Di²) / (Do² + Di²), where, c, specification coefficient; Sh, hoop stress; Do, outside diameter; Di, inner diameter.

• Periodical: Advanced Materials Research (Volumes 287-290)
• Pages: 2826-2829
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.287-290.2826
• Online since: July 2011
• Authors: Yan Hua Yang, Zhuan Zhao Yang, Xing Liang Liu, Hao Xue Yang
• Keywords: D/T(Diameter-Thickness Ratio), Finite Element Model (FEM), Hoop Stress, Line Pipe, Von Mises Equivalent Stress

References

[1] API SPC 5L, Specification for Line Pipe, (44th Edition),(2008)

[2] Duan Qingquan, Zhang Hong, Yan Feng. Hydrostatic burst test of X80 grade steel pipe.Journal of Loss Prevention in the Process Industries, 2009,11,22(6): 897-900

DOI: 10.1016/j.jlp.2009.09.003

[3] Bianca de C. Pinheiro, Ilson P. Pasqualino. Fatigue analysis of damaged steel pipelines under cyclic internal pressure. International Journal of Fatigue, 2009,5,31(5): 962-973

DOI: 10.1016/j.ijfatigue.2008.09.006

[4] M. Kashani, R. Young. Hoop stress approximation in offshore design codes .Marine Structures, 2008.4-6,21(2-3):224-239

DOI: 10.1016/j.marstruc.2007.11.001

[5] Inge Lotsberg. Stress concentration factors at welds in pipelines and tanks subjected to internal pressure and axial force. Marine Structures, 2008, 4-6, 21(2-3): 138-159

DOI: 10.1016/j.marstruc.2007.12.002

[6] Y.G. Cao, X.Y. Sun, S.H. Zhang, S.F. Xue. Field experiments and FEM analysis of third-party damaged oil transmission pipeline .Engineering Failure Analysis, 2010.1.17(1):344-352

DOI: 10.1016/j.engfailanal.2009.08.001

[7] DNV-OS-F101, Offshore Standard, October (2007)

[8] Committee of Mechanical Engineer Manual. Mechanical Engineer Manual [M]. Beijing, .1997.2:165-170
