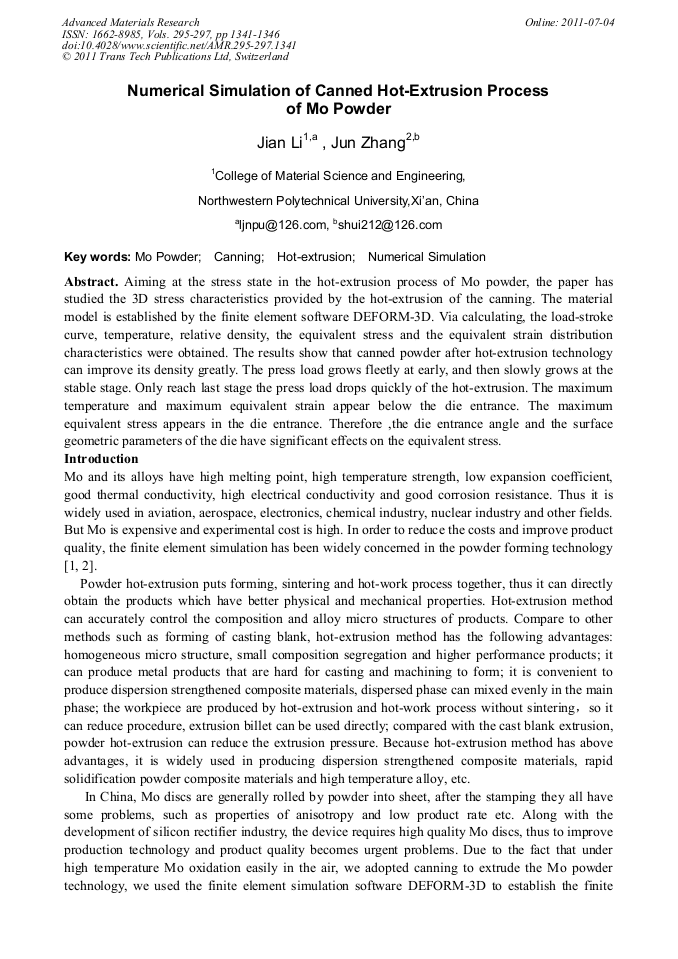

Numerical Simulation of Canned Hot-Extrusion Process of Mo Powder

Abstract:

Aiming at the stress state in the hot-extrusion process of Mo powder, the paper has studied the 3D stress characteristics provided by the hot-extrusion of the canning. The material model is established by the finite element software DEFORM-3D. Via calculating, the load-stroke curve, temperature, relative density, the equivalent stress and the equivalent strain distribution characteristics were obtained. The results show that canned powder after hot-extrusion technology can improve its density greatly. The press load grows fleetly at early, and then slowly grows at the stable stage. Only reach last stage the press load drops quickly of the hot-extrusion. The maximum temperature and maximum equivalent strain appear below the die entrance. The maximum equivalent stress appears in the die entrance. Therefore ,the die entrance angle and the surface geometric parameters of the die have significant effects on the equivalent stress.

• Periodical: Advanced Materials Research (Volumes 295-297)
• Pages: 1341-1346
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.295-297.1341
• Online since: July 2011
• Authors: Jian Li, Jun Zhang
• Keywords: Canning, Hot Extrusion, Mo Powder, Numerical Simulation

References

[1] J. Wang C.X. Li，X.L. Ruan et al. Metal forming technology [J],2000,18(2):1.

[2] P.Q. Chen. Mechanical modeling and numerical simulation of the metal powder compaction process[D].Guangzhou:South China University of Technology,2004.

[3] Kuhn H A,Downey C L. Intel J of Powder Metallurgy[J], 1971,7(1):15.

[4] Green R J. Intl J of Mech Sci [J],1972,14:215.

[5] Shima S,Oyane M. Intl J of Mech Sci [J].,1976,18(6):285.

[6] Doraivelu S M,Gegel H L.et al. Intl J of Mech Sci [J].Intl J Mech Sci,1984,26:527.

[7] L.H. Zhang, Z.T. Wang. Metal forming technology [J],1989(4):55.

[8] C.M. Li, X.L. Wang, H.J. Yan et al. Metal forming guiding tutorial examples of finite element analysis for DEFORM 5.03 [M].Beijing: China Machine Press,2007.
