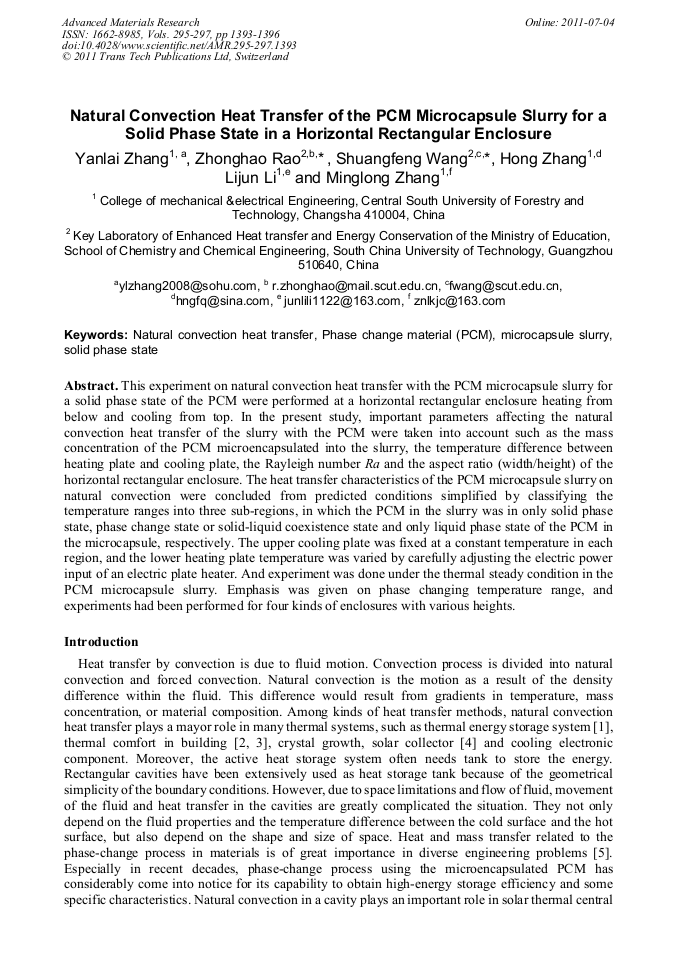

Natural Convection Heat Transfer of the PCM Microcapsule Slurry for a Solid Phase State in a Horizontal Rectangular Enclosure

Abstract:

This experiment on natural convection heat transfer with the PCM microcapsule slurry for a solid phase state of the PCM were performed at a horizontal rectangular enclosure heating from below and cooling from top. In the present study, important parameters affecting the natural convection heat transfer of the slurry with the PCM were taken into account such as the mass concentration of the PCM microencapsulated into the slurry, the temperature difference between heating plate and cooling plate, the Rayleigh number Ra and the aspect ratio (width/height) of the horizontal rectangular enclosure. The heat transfer characteristics of the PCM microcapsule slurry on natural convection were concluded from predicted conditions simplified by classifying the temperature ranges into three sub-regions, in which the PCM in the slurry was in only solid phase state, phase change state or solid-liquid coexistence state and only liquid phase state of the PCM in the microcapsule, respectively. The upper cooling plate was fixed at a constant temperature in each region, and the lower heating plate temperature was varied by carefully adjusting the electric power input of an electric plate heater. And experiment was done under the thermal steady condition in the PCM microcapsule slurry. Emphasis was given on phase changing temperature range, and experiments had been performed for four kinds of enclosures with various heights.

• Periodical: Advanced Materials Research (Volumes 295-297)
• Pages: 1393-1396
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.295-297.1393
• Online since: July 2011
• Authors: Yan Lai Zhang, Zhong Hao Rao, Shuang Feng Wang, Hong Zhang, Li Jun Li, Ming Long Zhang
• Keywords: Microcapsule Slurry, Natural Convection Heat Transfer, Phase Change Materials (PCM), Solid Phase State

References

[1] A. Shukla, D. Buddhi, R.L. Sawhney, "Solar water heaters with phase change material thermal energy storage medium: a review," Renew. Sustain. Energy Rev. 13 (2009), p.2119–2125.

DOI: 10.1016/j.rser.2009.01.024

[2] Pasupathy, R. Velraj, "Effect of double layer phase change material in building roof for year round thermal management," Energy Build. 40 (2008), p.193–203.

DOI: 10.1016/j.enbuild.2007.02.016

[3] A. Pasupathy, L. Athanasius, R. Velraj, R.V. Seeniraj, "Experimental investigation and numerical simulation analysis on the thermal performance of a building roof incorporating phase change material (PCM) for thermal management," Appl. Therm. Eng. 28 (2008), p.556–565

DOI: 10.1016/j.applthermaleng.2007.04.016

[4] A. Koca, H.F. Oztop, T. Koyun, Y. Varol, "Energy and exergy analysis of a latent heat storage system with phase change material for a solar collector," Renew. Energy 33 (2008), p.567–574.

DOI: 10.1016/j.renene.2007.03.012

[5] H. Inaba, "New Challenge in advanced Thermal Energy Transportation Using Functionally Thermal Fluid," International J. Thermal Sciences. Vol. 39 (9-11) (2000), p.991–1003.

DOI: 10.1016/s1290-0729(00)01191-1

[6] L. Stappers, Y. Yuan, and J. Fransaer, Novel Composite Coatings for Heat Sink Applications, Journal of The Electrochemical Society, vol.152 (7) (2005), p. C457-C461.

DOI: 10.1149/1.1926207

[7] Yinping Zhang, Xianxu Hu and Xin Wang, Theoretical analysis of convective heat transfer enhancement of microencapsulated phase change material slurries. Heat and Mass Transfer, vol.40 (2003), pp.59-66.

DOI: 10.1007/s00231-003-0410-7

[8] Choi E; Cho YI and Lorsch HG, A study of convective heat transfer with phase change particles. ASME HTD, vol.220 (1992), p.45–49.

[9] Guo ZY, Li Dy and Wang BX, A novel concept for convective heat transfer enhancement. Int J Heat Mass Transfer, vol.41 (14) (1998), p.2221–2225.

DOI: 10.1016/s0017-9310(97)00272-x

[10] Goel M; Roy SK; Sengupta S, Laminar forced convection heat transfer in microencapsulated phase change material suspensions. Int J Heat Mass Transfer, vol.37 (4) (1994), p.593–604.

DOI: 10.1016/0017-9310(94)90131-7

[11] Jenkins D.R., Interpretation of Shadowgraph patterns in Rayleigh-Bénard Convection. J. Fluid Mech., vol.190 (1988), pp.451-469.

DOI: 10.1017/s0022112088001405

[12] H. Inaba, C. Dai, A. Horibe, Natural convection heat transfer in enclosures with microemulsion phase change material slurry. Heat and Mass Transfer, vol.40 (2004), pp.179-189.

DOI: 10.1007/s00231-003-0419-y

[13] H. Inaba, C. Dai, A. Horibe, Numerical simulation of Rayleigh-Bénard convection in non-Newtonian phase-change-material slurry. Int J Therm Sci., vol.42 (2003), pp.471-480.

DOI: 10.1016/s1290-0729(02)00048-0
