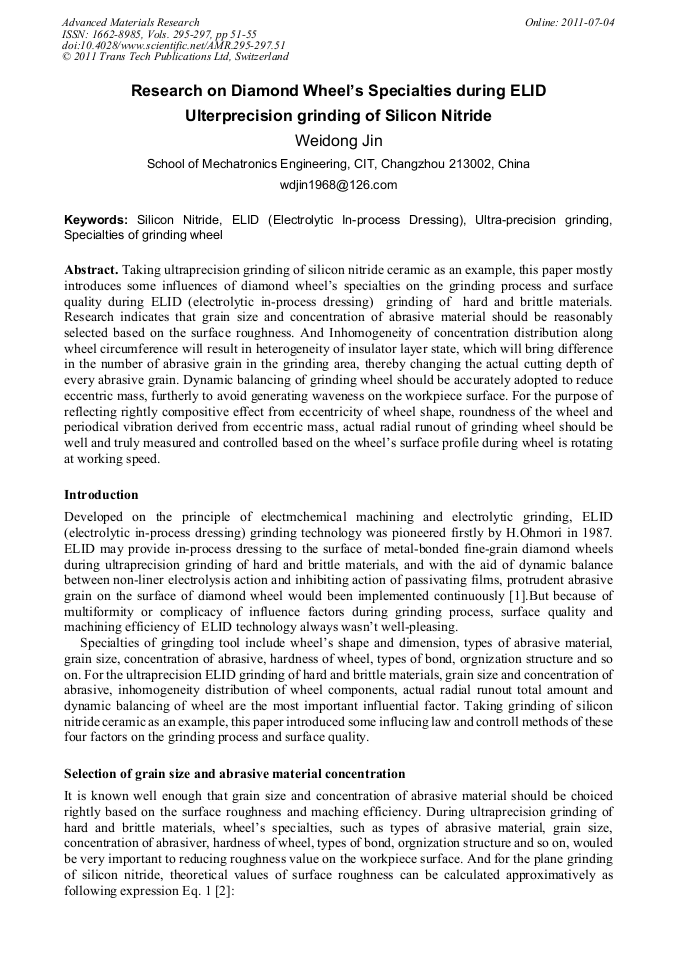

Research on Diamond Wheel’s Specialties during ELID Ulterprecision Grinding of Silicon Nitride

Abstract:

Taking ultraprecision grinding of silicon nitride ceramic as an example, this paper mostly introduces some influences of diamond wheel’s specialties on the grinding process and surface quality during ELID (electrolytic in-process dressing) grinding of hard and brittle materials. Research indicates that grain size and concentration of abrasive material should be reasonably selected based on the surface roughness. And Inhomogeneity of concentration distribution along wheel circumference will result in heterogeneity of insulator layer state, which will bring difference in the number of abrasive grain in the grinding area, thereby changing the actual cutting depth of every abrasive grain. Dynamic balancing of grinding wheel should be accurately adopted to reduce eccentric mass, furtherly to avoid generating waveness on the workpiece surface. For the purpose of reflecting rightly compositive effect from eccentricity of wheel shape, roundness of the wheel and periodical vibration derived from eccentric mass, actual radial runout of grinding wheel should be well and truly measured and controlled based on the wheel’s surface profile during wheel is rotating at working speed.

• Periodical: Advanced Materials Research (Volumes 295-297)
• Pages: 51-55
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.295-297.51
• Online since: July 2011
• Authors: Wei Dong Jin
• Keywords: ELID (Electrolytic In-Process Dressing), Silicon Nitride, Specialties of Grinding Wheel, Ultra-Precision Grinding

References

[1] B.P. Bandyopadhyay, H.Ohmori and I.Takahashi: Journal of Material Process Technology, Vol.66 (1997), pp.18-24

[2] P. Wang: Study on Mechanism & Technique of ELID Precision Mirror Grinding for Hard Brittle Materials (Harbin Institute of Technology, 1995, In Chinese)

[3] C. H. Zhang: Resarch on Theory and Technology of Precision Mirror Grinding with a Electrolytic In-process Dressing Wheel (Harbin Institute of Technology, 1996, In Chinese)

[4] W. D. Jin: Research on Ultra-precision Grinding of Hard and Brittle material Si3N4 with Electrolytic In-process Dressing (ELID) (Tianjin University, 2005, In Chinese)

[5] Y. W. Jiang: Journal of Changchun Institute of Optics and Fine Mechanics Vol. 24-3 (2001), pp.29-32 (In Chinese)

[6] Jin Weidong, Ren Chengzu, HUA Jjinhai, WANG Taiyong: Transactions of Tianjin University Vol.11 (2005), pp.176-182
