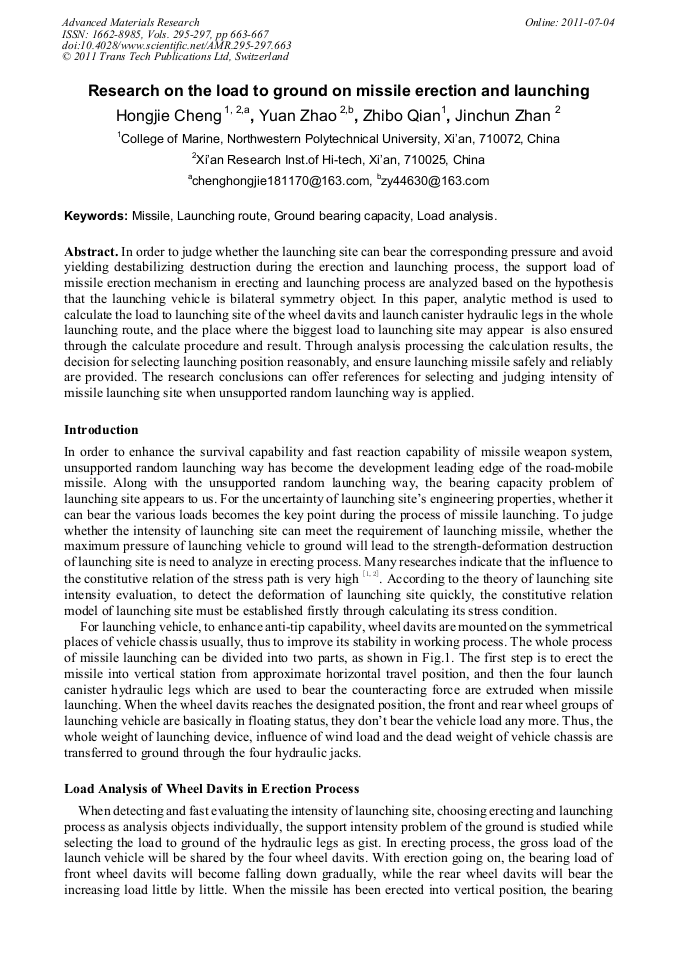

Research on the Load to Ground on Missile Erection and Launching

Abstract:

In order to judge whether the launching site can bear the corresponding pressure and avoid yielding destabilizing destruction during the erection and launching process, the support load of missile erection mechanism in erecting and launching process are analyzed based on the hypothesis that the launching vehicle is bilateral symmetry object. In this paper, analytic method is used to calculate the load to launching site of the wheel davits and launch canister hydraulic legs in the whole launching route, and the place where the biggest load to launching site may appear is also ensured through the calculate procedure and result. Through analysis processing the calculation results, the decision for selecting launching position reasonably, and ensure launching missile safely and reliably are provided. The research conclusions can offer references for selecting and judging intensity of missile launching site when unsupported random launching way is applied.

• Periodical: Advanced Materials Research (Volumes 295-297)
• Pages: 663-667
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.295-297.663
• Online since: July 2011
• Authors: Hong Jie Cheng, Yuan Zhao, Zhi Bo Qian, Jin Chun Zhan
• Keywords: Ground Bearing Capacity, Launching Route, Load Analysis, Missile

References

[1] Guo Xiao-song, Zhan Jin-chun, et al. Model transformation method in dynamic response calculation of non-uniform random fields [C]. Proceeding-2009 IEEE International Conference on Intelligent Computing and Intelligent Systems (Volume 2), 2009.

DOI: 10.1109/icicisys.2009.5358073

[2] Zhan Jin-chun, Guo Xiao-song, et al. Study on multi-body modeling and load on the ground for heavy equipment [J]. Hoisting and Conveying Machinery, 2010 (8).

[3] Zhan Jin-chun, Guo Xiao-song, et al. Modeling and simulation on bearing strength evaluation of unpaved road [C]. Proceeding of the 2010 International Conference on Future Computer and Communication (Volume 2), 2010.

DOI: 10.1109/icfcc.2010.5497351

[4] YAO Xiao-guang, GUO Xiao-song, FENG Yong-bao, et al. Load analysis on missile erection [J]. Acta Armamentarii, 2008 (6). (in Chinese ).

[5] Zhang Sheng-san. Erector structure analysis of missile launcher [J]. Missiles and Space Vehicles, 1996 (1). (in Chinese ).

[6] Zhang Sheng-san. Calculation of leg force and stability of launching vehicle [J]. Missiles and Space Vehicles, 1994 (3). (in Chinese ).

[7] Shao Yang. Analysis of mechanical characteristics about operating state of the missile launcher erecting [J]. Missiles and Space Vehicles, 1995 (5). (in Chinese ).

[8] Xie Jian, Deng Biao, et al. Missile launching technology [M]. Xi'an: Northwestern Polytechnical University Publishing House, 2006.
