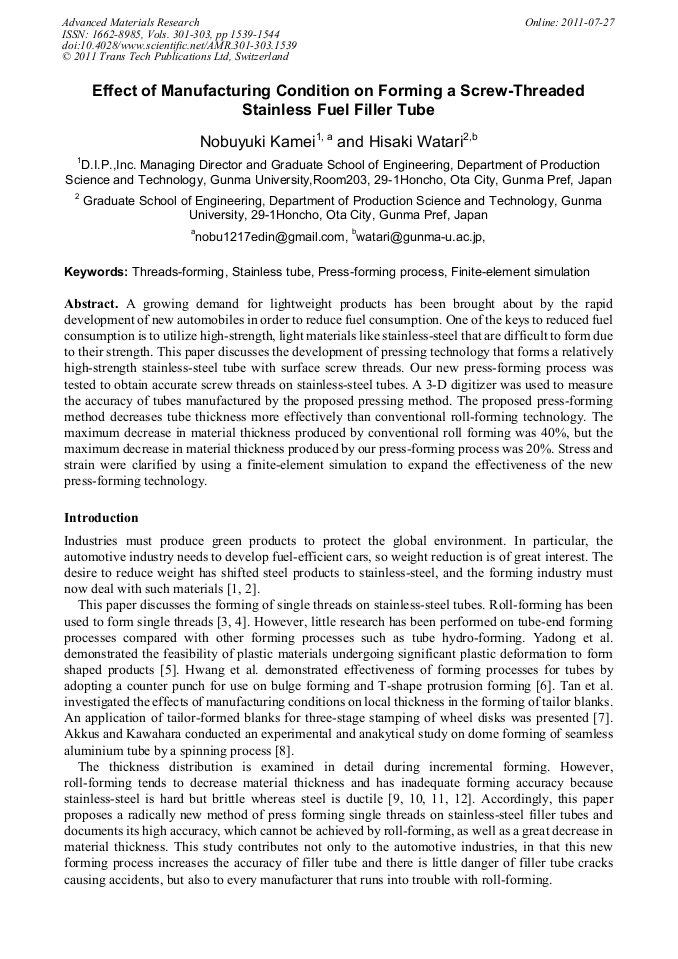

Effect of Manufacturing Condition on Forming a Screw-Threaded Stainless Fuel Filler Tube

Abstract:

A growing demand for lightweight products has been brought about by the rapid development of new automobiles in order to reduce fuel consumption. One of the keys to reduced fuel consumption is to utilize high-strength, light materials like stainless-steel that are difficult to form due to their strength. This paper discusses the development of pressing technology that forms a relatively high-strength stainless-steel tube with surface screw threads. Our new press-forming process was tested to obtain accurate screw threads on stainless-steel tubes. A 3-D digitizer was used to measure the accuracy of tubes manufactured by the proposed pressing method. The proposed press-forming method decreases tube thickness more effectively than conventional roll-forming technology. The maximum decrease in material thickness produced by conventional roll forming was 40%, but the maximum decrease in material thickness produced by our press-forming process was 20%. Stress and strain were clarified by using a finite-element simulation to expand the effectiveness of the new press-forming technology.

• Periodical: Advanced Materials Research (Volumes 301-303)
• Pages: 1539-1544
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.301-303.1539
• Online since: July 2011
• Authors: Nobuyuki Kamei, Hisaki Watari
• Keywords: Finite Element (FE) Simulation, Press-Forming Process, Stainless Tube, Thread-Forming

References

[1] H. Hayashi and T. Nakawaga, Recent trends in sheet metals and their formability in manufacturing automotive panels, Journal of Materials Processing Technology, Volume 46 (1994), 455-487.

DOI: 10.1016/0924-0136(94)90128-7

[2] M. Kleiner, S. Chatti, and A. Klaus, Metal forming techniques for light weight construction, Journal of Material Processing Technology, Volume 177 (2006), 2-7.

[3] V. Ivanov, Profiling of Rollers for Thread Rolling, Journal of Materials Processing Technology, Volume 59 (1996), 333-336.

DOI: 10.1016/0924-0136(95)02159-0

[4] A. Gontarz, Z. Pater, and W. Weronski, Head forging aspects of new forming process of screw spike, Journal of Materials Processing Technology, Volume 153-154 (2004), 736-740.

DOI: 10.1016/j.jmatprotec.2004.04.164

[5] He Yadong, Xue Ping, Tang Wenzhong, and Zhu Fuhua, Experimental investigation of bulge forming of plastic branch pipe, Journal of Materials Processing Technology 142 (2003) 551-555.

DOI: 10.1016/s0924-0136(03)00657-5

[6] Y. M. Hwang, T. C. Lin, and W. C. Chang, Experiments on T-shape hydroforming with counter punch, Journal of Materials Processing Technology 192-193 (2007) 243-248.

DOI: 10.1016/j.jmatprotec.2007.04.087

[7] C. J. Tan, K. Mori, and Y. Abe, Forming of tailor blanks having local thickening for control of wall thickness of stamped products, Journal of Materials Processing Technology 202 (2008) 443-449.

DOI: 10.1016/j.jmatprotec.2007.10.014

[8] N. Akkus and M. Kawahara, An experimental and analytical study on dome forming of seamless Al tube by spinning process, Journal of Materials Processing Technology 173 (2006) 145-150.

DOI: 10.1016/j.jmatprotec.2005.11.011

[9] M. Salmani Tehrani, H. Moslemi Naeini, P. Hartley, and H. Khandemizadeh, Localized edge buckling in cold roll-forming of circular tube section, Journal of Materials Processing Technology, Volume 177 (2006), 617-620.

DOI: 10.1016/j.jmatprotec.2006.03.201

[10] G. Nefussi, L. Proslier, and P. Gilormini, Simulation of the cold-roll forming of circular tubes, Journal of Materials Processing Technology, Volume 95 (1999), 216-221.

DOI: 10.1016/s0924-0136(99)00323-4

[11] S. Kalpakjian, Manufacturing Processes for Engineering Materials, Addison-Wesley Publishing Company 3rd Edition (1997), 122-125.

[12] T. Mori and S. Kurimoto, Press formability of stainless steel and aluminum clad sheet, Journal of Materials Processing Technology, Volume 56 (1996), 242-253.

DOI: 10.1016/0924-0136(95)01838-7

[13] M. Zhan, H. Yang, J. H. Zhang, Y. L. Xu, and F. Ma, 3D REM analysis of influence of roller feed rate on forming force quality of cone spinning, Journal of Materials Processing Technology, Volume 187-188 (2007), 486-491.

DOI: 10.1016/j.jmatprotec.2006.11.114

[14] H. Yan, H. Bi, and Z. Xu, Microstructure texture and grain boundaries character distribution evolution of ferritic stainless steel during rolling process, Journal of Materials Processing Technology, Volume 209 (2009), 2627-2631.

DOI: 10.1016/j.jmatprotec.2008.06.012

[15] Y. Abe, K. Mori, and O. Ebihara, Optimization of the distribution of wall thickness in the multistage sheet metal forming of wheel disks, Journal of Materials Processing Technology, Volume 125-126 (2002), 792-797.

DOI: 10.1016/s0924-0136(02)00394-1
