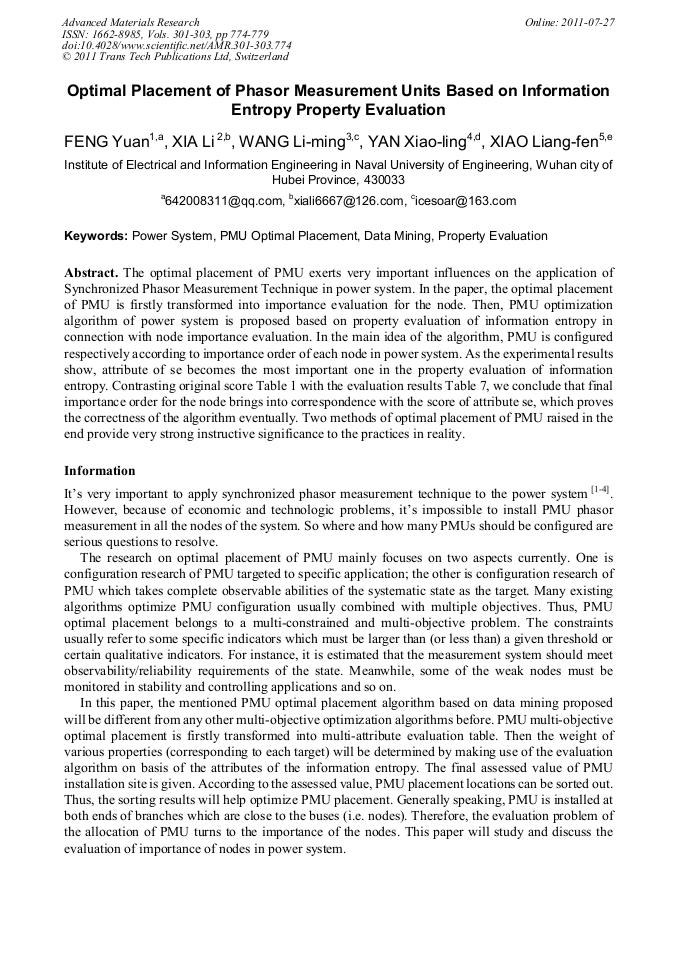

Optimal Placement of Phasor Measurement Units Based on Information Entropy Property Evaluation

Abstract:

The optimal placement of PMU exerts very important influences on the application of Synchronized Phasor Measurement Technique in power system. In the paper, the optimal placement of PMU is firstly transformed into importance evaluation for the node. Then, PMU optimization algorithm of power system is proposed based on property evaluation of information entropy in connection with node importance evaluation. In the main idea of the algorithm, PMU is configured respectively according to importance order of each node in power system. As the experimental results show, attribute of se becomes the most important one in the property evaluation of information entropy. Contrasting original score Table 1 with the evaluation results Table 7, we conclude that final importance order for the node brings into correspondence with the score of attribute se, which proves the correctness of the algorithm eventually. Two methods of optimal placement of PMU raised in the end provide very strong instructive significance to the practices in reality.

• Periodical: Advanced Materials Research (Volumes 301-303)
• Pages: 774-779
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.301-303.774
• Online since: July 2011
• Authors: Yuan Feng, Li Xia, Li Ming Wang, Xiao Ling Yan, Liang Fen Xiao
• Keywords: Data Mining (DM), PMU Optimal Placement, Power System, Property Evaluation

References

[1] Gabriel B, Schweitzer E O．Synchronized phasor measurement in protective relays for protection, control, and analysis of electric power systems[C/OL]．Protective Relay Engineers．57th Annual Conference for　Protective Relay．New York：IEEE, 2004：1-32.

DOI: 10.1109/cpre.2004.238608

[2] Phadke A G．Synchronized phasor measurements in power systems [J/OL]．IEEE Computer Applications in Power, 1993, 62(4)：10-15.

[3] Cory B J, Gale P F．Satellites for power system applications [J/OL]．Power Engineering Journal, 1993, 77(10)：201-207.

[4] IEEE Std C37 118TM-2005．IEEE Standard for Synchrophasors for Power Systems-2005[S], New York：IEEE．2006.

[5] Yan Xizum Song Zhongmin, Bi Chunjia. Mathematical modeling and experiments [M]. Beijing: Science Press, 2009: 9-40.

[6] Ian H. Witten, Eibe Frank. Data Mining: Practical Machine Learning Tools and Techniques (2nd edition) [M]. Amsterdam：Morgan Kaufmann Publishers, 2005: 1-324.

DOI: 10.1186/1475-925x-5-51

[7] Cendrowska J. PRISM： An algorithm for inducing modular rules [J]. Man-Machine Studies, 1987, 27(2): 349-370.

DOI: 10.1016/s0020-7373(87)80003-2
