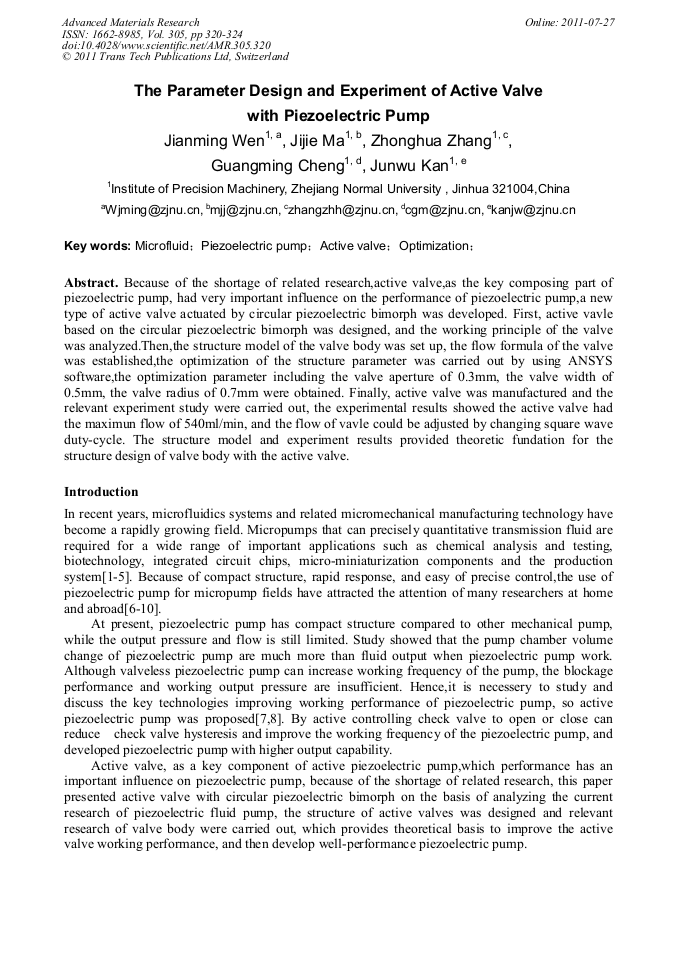

The Parameter Design and Experiment of Active Valve with Piezoelectric Pump

Abstract:

Because of the shortage of related research,active valve,as the key composing part of piezoelectric pump, had very important influence on the performance of piezoelectric pump,a new type of active valve actuated by circular piezoelectric bimorph was developed. First, active vavle based on the circular piezoelectric bimorph was designed, and the working principle of the valve was analyzed.Then,the structure model of the valve body was set up, the flow formula of the valve was established,the optimization of the structure parameter was carried out by using ANSYS software,the optimization parameter including the valve aperture of 0.3mm、the valve width of 0.5mm、the valve radius of 0.7mm were obtained. Finally, active valve was manufactured and the relevant experiment study were carried out, the experimental results showed the active valve had the maximun flow of 540ml/min, and the flow of vavle could be adjusted by changing square wave duty-cycle. The structure model and experiment results provided theoretic fundation for the structure design of valve body with the active valve.

• Periodical: Advanced Materials Research (Volume 305)
• Pages: 320-324
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.305.320
• Online since: July 2011
• Authors: Jian Ming Wen, Ji Jie Ma, Zhong Hua Zhang, Guang Ming Cheng, Jun Wu Kan
• Keywords: Active Valve, Micro-Fluid, Optimization, Piezoelectric Pump

References

[1] Mandar Deshpande, Laxman Saggere: An analytical model and working equations for static deflections of a circular multi-layered diaphragm-type piezoelectric actuator. Sensors and Actuators, A: Physical, Vol. 136 (2007) No. 2, pp.673-689.

DOI: 10.1016/j.sna.2006.12.022

[2] S.Y. Lin: Study on the radial composite piezoelectric ceramic transducer in radial vibration. Ultrasonics, Vol. 46 (2007) No. 1, pp.51-59.

DOI: 10.1016/j.ultras.2006.10.005

[3] Melih Papila, Mark Sheplak and Louis N. Cattafesta Iii: Optimization of clamped circular piezoelectric composite actuators. Sensors and Actuators, A: Physical, Vol. 147 (2008) No. 1, pp.310-323.

DOI: 10.1016/j.sna.2008.05.018

[4] D.A. Wang, C. -H. Cheng, et al: Analysis of an annular PZT actuator for a droplet ejector . Sensors and Actuators A , Vol. 137 (2007), p.330–337.

DOI: 10.1016/j.sna.2007.03.020

[5] T. Wu, Paul I Ro: Dynamic Peak Amplitude Analysis and Bonding Layer Effects of Piezoelectric Bimorph Cantilevers. Smart Materials and Structurec, Vol. 13 (2004) No. 1, pp.203-210.

DOI: 10.1088/0964-1726/13/1/024

[6] J.H. Zhang, Y. L. LI and J.Y. Liu, et al: Simulation and experim ent of valveless piezoelectric pum p with Y-shape tubes. Opt. Precision Eng., Vol. 16 (2008) No. 12, pp.669-675(in Chinese).

[7] Q.X. Xia, J.H. Zhang and H. Lei, et al: Theoretical analysis of novel valveless piezoelectric pump with cluster of unsymmetrical hum p structure. Opt. Precision Eng., Vol. 16 (2008) No. 4, pp.2391-2397.

[8] Z.G. Zhang,X. Sun F, D.J. Zhang, et al: Performance research on double-valved and three-valved piezoelectric pumps with double series-wound chambers. Opt. Precision Eng., Vol. 15 (2007) No. 2, pp.219-223(in Chinese).

[9] Y.S. Chen, Y.L. Huang, et al: Investigation of design parameters for droplet generators driven by piezoelectric actuators. International Journal of Mechanical Sciences, Vol. 49 (2007), pp.733-740.

DOI: 10.1016/j.ijmecsci.2006.10.004

[10] Thanh Tung Nguyen, Nam Seo Goo and Vinh Khanh Nguyen, et al: Design, fabrication, and experimental characterization of a flap valve IPMC micropump with a flexibly supported diaphragm. Sensors and Actuators A: Physical, Vol. 141 (2008).

DOI: 10.1016/j.sna.2007.09.017
