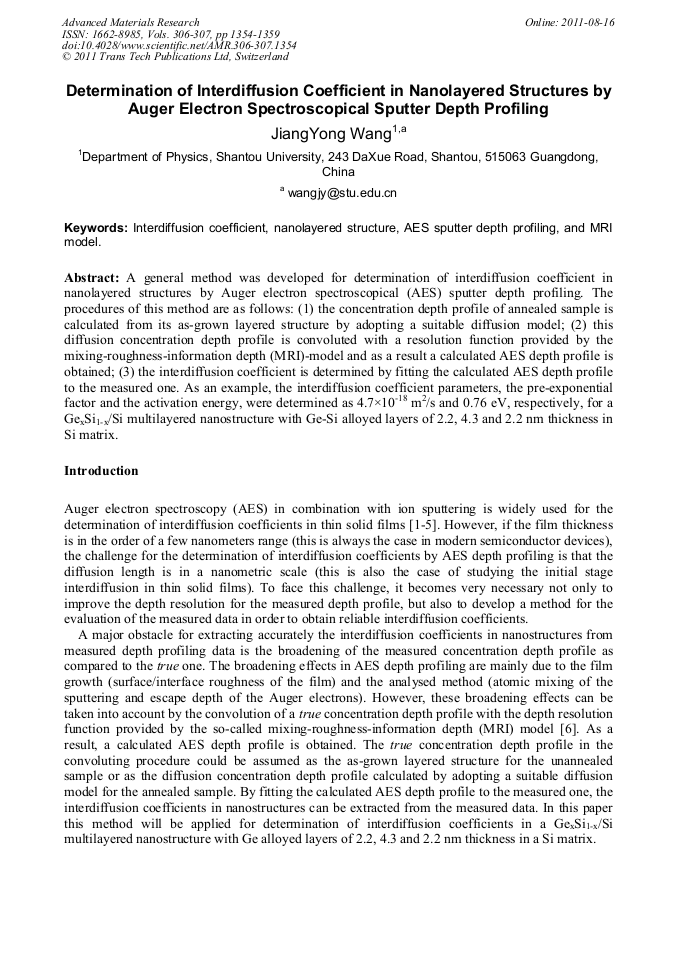

Determination of Interdiffusion Coefficient in Nanolayered Structures by Auger Electron Spectroscopical Sputter Depth Profiling

Abstract:

A general method was developed for determination of interdiffusion coefficient in nanolayered structures by Auger electron spectroscopical (AES) sputter depth profiling. The procedures of this method are as follows: (1) the concentration depth profile of annealed sample is calculated from its as-grown layered structure by adopting a suitable diffusion model; (2) this diffusion concentration depth profile is convoluted with a resolution function provided by the mixing-roughness-information depth (MRI)-model and as a result a calculated AES depth profile is obtained; (3) the interdiffusion coefficient is determined by fitting the calculated AES depth profile to the measured one. As an example, the interdiffusion coefficient parameters, the pre-exponential factor and the activation energy, were determined as 4.7×10-18 m2/s and 0.76 eV, respectively, for a GexSi1-x/Si multilayered nanostructure with Ge-Si alloyed layers of 2.2, 4.3 and 2.2 nm thickness in Si matrix.

• Periodical: Advanced Materials Research (Volumes 306-307)
• Pages: 1354-1359
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.306-307.1354
• Online since: August 2011
• Authors: Jiang Yong Wang
• Keywords: AES Sputter Depth Profiling, Interdiffusion Coefficient, Mri Model, Nanolayered Structure

References

[1] A. Bukaluk: Surf. Interface Anal. Vol. 5 (1983), p.20.

[2] P.M. Hall and J.M. Morabito: Surf. Sci. Vol. 54 (1976), p.79.

[3] R.J. Highmore, J.E. Evetts, A.L. Greer and R.E. Somekh: Appl. Phys. Lett. Vol. 50 (1987), p.566.

[4] W. Pamler: Appl. Phys. A Vol. 42 (1987), p.219.

[5] H.C. Swart, A.J. Jonker, C.H. Claassens, R. Chen, L.A. Venter, P. Ramoshebe, E. Wurth, J.J. Terblans and W.D. Roos: Appl. Surf. Sci. Vol. 205 (2003), p.231.

DOI: 10.1016/s0169-4332(02)01070-x

[6] S. Hofmann: Surf. Interface Anal. Vol. 21 (1994), p.673.

[7] S. Hofmann: Rep. Prog. Phys. Vol. 61 (1998), p.827.

[8] V. Kesler and S. Hofmann: J. Surf. Anal. Vol. 9 (2002), p.428

[9] J.Y. Wang, A. Zalar, Y.H. Zhao and E.J. Mittemeijer: Thin Solid Films, Vol. 433 (2003), p.92

[10] P.C. Zalm and R.C.M. De Kruif: Appl. Surf. Sci. Vol. 70-71 (1993), p.73.

[11] M.G. Dowsett, in Secondary Ion Mass Spectrometry, SIMS X, edited by A. Benninghoven, B. Hagenhoff, H.W. Werner (Wiley, Chichester, 1997), p.355.

[12] J. Crank, The Mathematics of diffusion, 2nd edition (Clarendon, Oxford, 1975)

[13] S. Hofmann and V. Kesler: Surf. Interface Anal. Vol. 33 (2002), p.461.

[14] J.F. Ziegler, TRIM Code, IBM Corporation, Yorktown Heights, NY, (http://www.srim.org).

[15] NIST Electron EAL, NIST Database 82 (2001)

[16] Y.S. Lim, J.Y. Lee, H.S. Kim and D. W. Moon: Appl. Phys. Lett. Vol. 77 (2000), p.4157.

[17] G.L. McVay and A.R. DuCharme: Phys. Rev. B Vol. 9 (1974), p.627.
