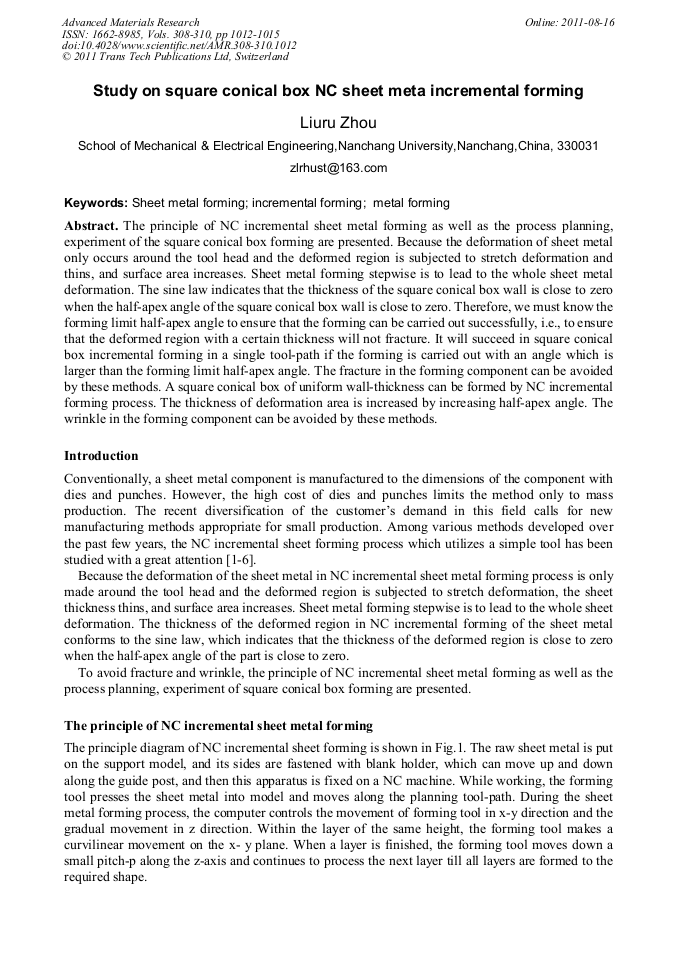

Study on Square Conical Box NC Sheet Meta Incremental Forming

Abstract:

The principle of NC incremental sheet metal forming as well as the process planning, experiment of the square conical box forming are presented. Because the deformation of sheet metal only occurs around the tool head and the deformed region is subjected to stretch deformation and thins, and surface area increases. Sheet metal forming stepwise is to lead to the whole sheet metal deformation. The sine law indicates that the thickness of the square conical box wall is close to zero when the half-apex angle of the square conical box wall is close to zero. Therefore, we must know the forming limit half-apex angle to ensure that the forming can be carried out successfully, i.e., to ensure that the deformed region with a certain thickness will not fracture. It will succeed in square conical box incremental forming in a single tool-path if the forming is carried out with an angle which is larger than the forming limit half-apex angle. The fracture in the forming component can be avoided by these methods. A square conical box of uniform wall-thickness can be formed by NC incremental forming process. The thickness of deformation area is increased by increasing half-apex angle. The wrinkle in the forming component can be avoided by these methods.

• Periodical: Advanced Materials Research (Volumes 308-310)
• Pages: 1012-1015
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.308-310.1012
• Online since: August 2011
• Authors: Liu Ru Zhou
• Keywords: Incremental Forming, Metal Forming, Sheet Metal Forming

References

[1] Matsubara, S. A. Computer numerically controlled dieless incremental forming of a sheet metal. Proceedings of the Institution of Mechanical Engineers B, Journal of Engineering Manufacture , 2001, (215): 959-966

DOI: 10.1243/0954405011518863

[2] Park, J.J；Kim, Y.H. Fundamental studies on the incremental sheet metal forming technique. Journal of Materials Processing Technology, 2003, (140): 447-453

DOI: 10.1016/s0924-0136(03)00768-4

[3] Ambrogio G, De Napoli. Application of Incremental Forming process for high customised medical product manufacturing. Journal of Materials Processing Technology, 2005. 162,156-162

DOI: 10.1016/j.jmatprotec.2005.02.148

[4] G. Hussain, N.U. Dar, L. Gao, M.H. Chen.A comparative study on the forming limits of an aluminum sheet-metal in negative incremental forming. Journal of Materials Processing Technology, 187–188 (2007) 94-98

DOI: 10.1016/j.jmatprotec.2006.11.112

[5] Ghulam Hussain, Gao Lin and Nasir Hayat.Improving profile accuracy in SPIF process through statistical optimization of forming parameters. Journal of Mechanical Science and Technology 25 (1) (2011) 177-182

DOI: 10.1007/s12206-010-1018-8

[6] M. Bambach, B. Taleb Araghi, G. Hirt. Strategies to improve the geometric accuracy in asymmetric single point incremental forming. Prod. Eng. Res. Devel. (2009) 3:145–156

DOI: 10.1007/s11740-009-0150-8
