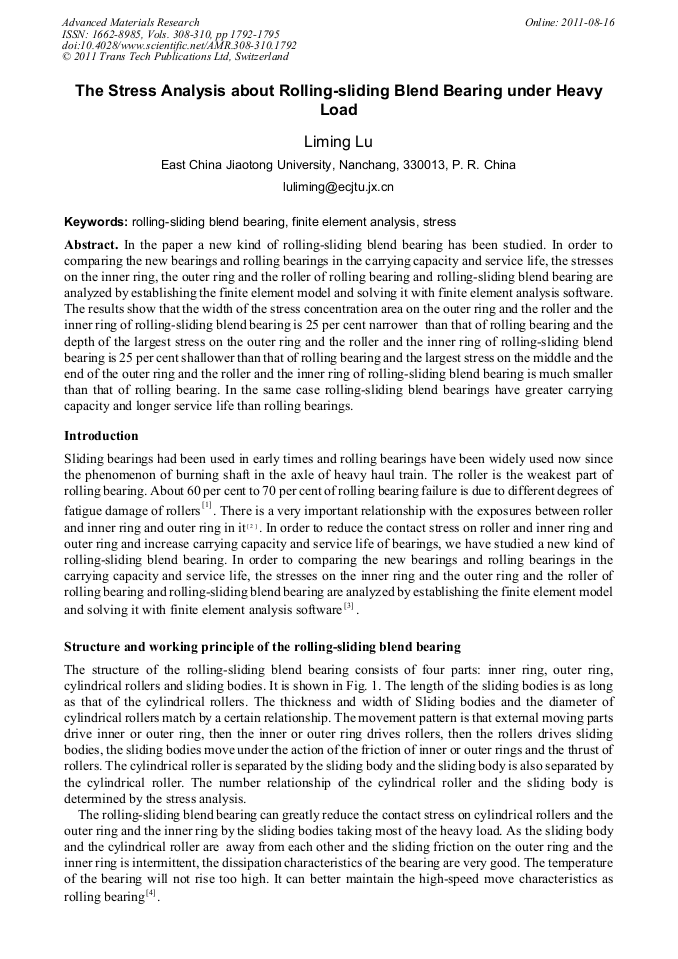

The Stress Analysis about Rolling-Sliding Blend Bearing under Heavy Load

Abstract:

In the paper a new kind of rolling-sliding blend bearing has been studied. In order to comparing the new bearings and rolling bearings in the carrying capacity and service life, the stresses on the inner ring, the outer ring and the roller of rolling bearing and rolling-sliding blend bearing are analyzed by establishing the finite element model and solving it with finite element analysis software. The results show that the width of the stress concentration area on the outer ring and the roller and the inner ring of rolling-sliding blend bearing is 25 per cent narrower than that of rolling bearing and the depth of the largest stress on the outer ring and the roller and the inner ring of rolling-sliding blend bearing is 25 per cent shallower than that of rolling bearing and the largest stress on the middle and the end of the outer ring and the roller and the inner ring of rolling-sliding blend bearing is much smaller than that of rolling bearing. In the same case rolling-sliding blend bearings have greater carrying capacity and longer service life than rolling bearings.

• Periodical: Advanced Materials Research (Volumes 308-310)
• Pages: 1792-1795
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.308-310.1792
• Online since: August 2011
• Authors: Li Ming Lu
• Keywords: Finite Element Analysis (FEA), Rolling-Sliding Blend Bearing, Stress

References

[1] Harsha S P.: Non-linear dynamic response of a balanced rotor supported on rolling element bearings. Mechanical Systems and Signal Processing 19(3), 557～578 (2005)

DOI: 10.1016/j.ymssp.2004.04.002

[2] SHI Yan.: Contact stress analysis of axle box bearing for locomotive with axle load of25 t. Diesel locomotive 8 (8), 10~12 (2008) (in chinese)

[3] Wing Kam Liu,Shangwu Xiong,Yong Guo.: Finite element method for mixed elastohydrodynamic lubrication of journal-bearing systems. Int.J.Numer. Meth.Engng 60, 1759～179 (2004)

DOI: 10.1002/nme.1022

[4] TIAN Hongping, ZHANG Furun, YANG Chumin. : Research on rolling slide compound bearing. Exploration Project1, 60~62 (2003) (in chinese)

[5] El-Marhomy Abd Alla, Abdel-Sattar Nasar Eldin.: Stability analysis of rotor-bearing systems via Routh-Hurwitz criterion. Applied Energy 77(3), 287～308 (2004)

DOI: 10.1016/s0306-2619(03)00139-9
