Study on a Large Opening in a Pressure Vessel

Wei Wang; Jing Bao Shi; Ming Fu Luo; Yu Fang Wang

doi:10.4028/www.scientific.net/AMR.308-310.58

Paper Titles

Research on Fault Knowledge Base Technology of High-End CNC Machining System
p.35

The Improved Design for Automated Teller Machine Based on the Theory of User Requirements
p.41

Numerical Simulation of Spray Process of Fuel Nozzle
p.47

Preparation of High Performance Aluminum Foam Using Carbon Fibers as Stabilizing Additive
p.53

Study on a Large Opening in a Pressure Vessel
p.58

Multi-Domain and Hybrid Behavioral Modeling for Complex Product Systems
p.62

Research on the Face Finder and Behavior Decoding Technology in Synchronous Modeling
p.67

A Design Method Based on Healthy Industrial Design (HID)
p.72

Knowledge Acquisition from Simulation Data to Product Configuration Rules
p.77

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 308-310Study on a Large Opening in a Pressure Vessel

Study on a Large Opening in a Pressure Vessel

Abstract:

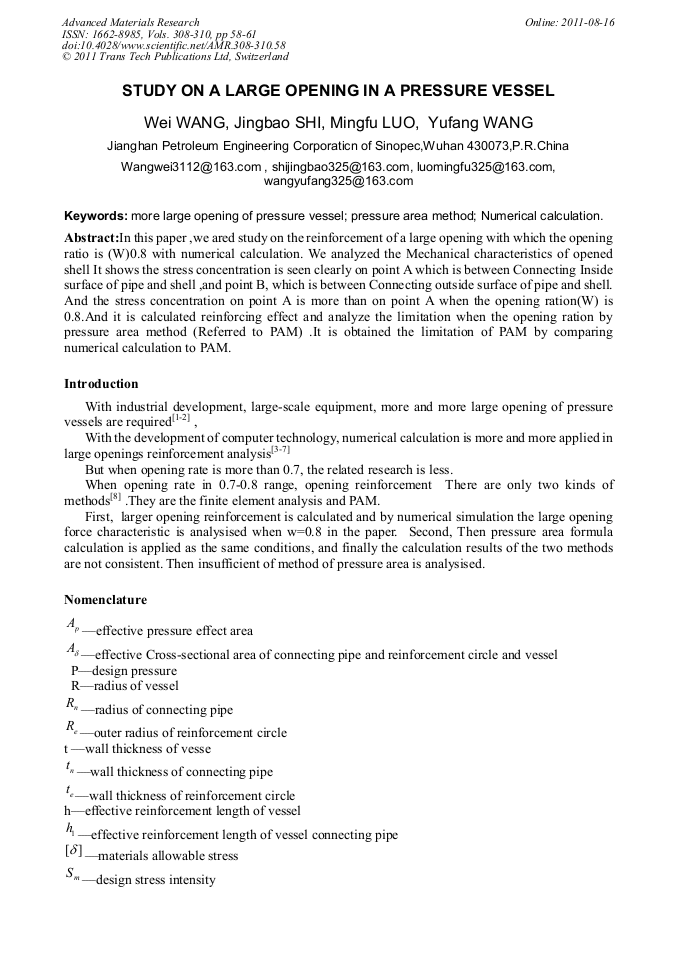

In this paper ,we ared study on the reinforcement of a large opening with which the opening ratio is (W)0.8 with numerical calculation. We analyzed the Mechanical characteristics of opened shell It shows the stress concentration is seen clearly on point A which is between Connecting Inside surface of pipe and shell ,and point B, which is between Connecting outside surface of pipe and shell. And the stress concentration on point A is more than on point A when the opening ration(W) is 0.8.And it is calculated reinforcing effect and analyze the limitation when the opening ration by pressure area method（Referred to PAM）.It is obtained the limitation of PAM by comparing numerical calculation to PAM.
