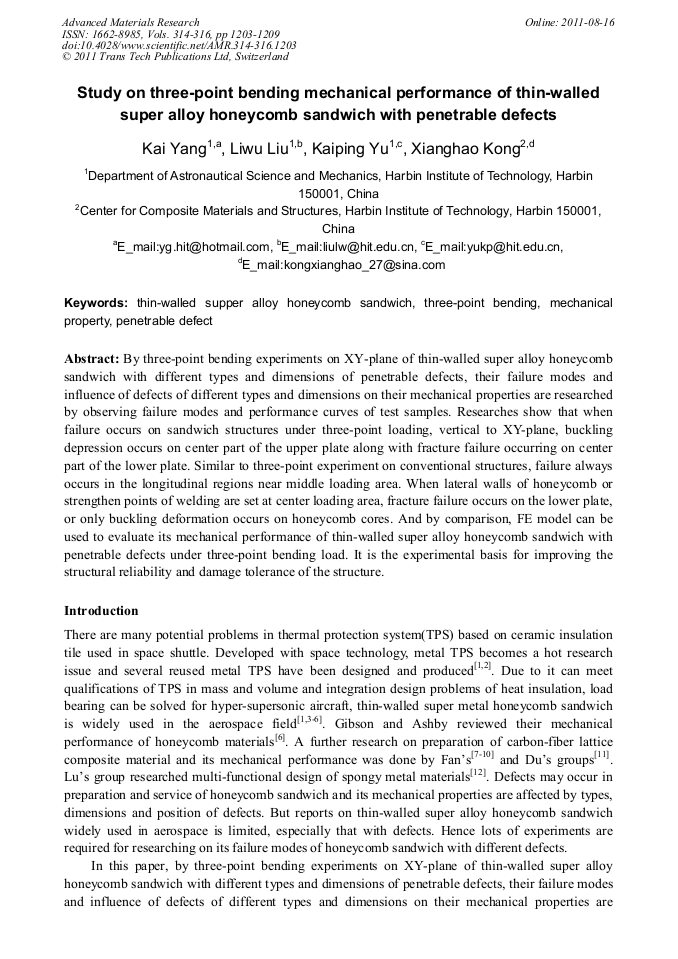

Study on Three-Point Bending Mechanical Performance of Thin-Walled Super Alloy Honeycomb Sandwich with Penetrable Defects

Abstract:

By three-point bending experiments on XY-plane of thin-walled super alloy honeycomb sandwich with different types and dimensions of penetrable defects, their failure modes and influence of defects of different types and dimensions on their mechanical properties are researched by observing failure modes and performance curves of test samples. Researches show that when failure occurs on sandwich structures under three-point loading, vertical to XY-plane, buckling depression occurs on center part of the upper plate along with fracture failure occurring on center part of the lower plate. Similar to three-point experiment on conventional structures, failure always occurs in the longitudinal regions near middle loading area. When lateral walls of honeycomb or strengthen points of welding are set at center loading area, fracture failure occurs on the lower plate, or only buckling deformation occurs on honeycomb cores. And by comparison, FE model can be used to evaluate its mechanical performance of thin-walled super alloy honeycomb sandwich with penetrable defects under three-point bending load. It is the experimental basis for improving the structural reliability and damage tolerance of the structure.

• Periodical: Advanced Materials Research (Volumes 314-316)
• Pages: 1203-1209
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.314-316.1203
• Online since: August 2011
• Authors: Kai Yang, Li Wu Liu, Kai Ping Yu, Xiang Hao Kong
• Keywords: Mechanical Property, Penetrable Defect, Thin-Walled Supper Alloy Honeycomb Sandwich, Three-Point Bending

References

[1] C. F. Gartrell, General Research Corporation, McLean. A View of Future Technology Needs for Space Transportation. AIAA Paper, 1984, 9: 146~159.

[2] Guo Linli, Zhu Yonggui . Pilot study of astronautical systems engineering . Missiles and space vechicles . 2000,(1):7-11(In Chinese)

[3] J. Tirpak, A. John. The Flight to Orbit. Air Force Magazine, 1998, 81(1): 41~44.

[4] B. Correll, T. John. Destiny in Space. Air Force Magazine, 1998, 81(2): 11~16.

[5] B. Correll, T. John. The Integration of Aerospace. Air Force Magazine, 1999, 82(2): 10~16.

[6] Gibson L J, Ashby M F. Cellular solids: structure and properties, Second edition. Cambridge: Cambridge University Press, 1997.

[7] Fan Hualin, Yang Wei . Development of lattice materials with high specific stiffness and strength . Advances in mechanics, 2007,37(1):99-112(In Chinese)

[8] Fan Hualin, Jin Fengnian and Fang Daining . Structural mechanical of lattice grids. Advances in mechanics . 2008, 38(1):35-52(In Chinese)

[9] Fan H. L., Meng F. and Yang W. . Sandwich panels with Kagome lattice cores reinforced by carbon fibers . Composite Structures, 2007,81(4):533-539

DOI: 10.1016/j.compstruct.2006.09.011

[10] Fan H. L. , Yang W. and Chao Z. M. . Microwave absorbing composite lattice grids . Composite Science and Technology, 2007, 67:3472-3479

DOI: 10.1016/j.compscitech.2007.03.002

[11] Du Shanyi, Zhang Jifeng and Zhang Boming . Overview of application and research on advanced composite grid structures . Acta aeronautica et astronautica sinica . 2007, 28(2):419-424(In Chinese)

[12] Lu Tianjian, Liu Tao and Deng Ziche . Multifunctional design of cellular metals: a review . Mechanics in engineering . 2008, 30(1):1-9(In Chinese)
