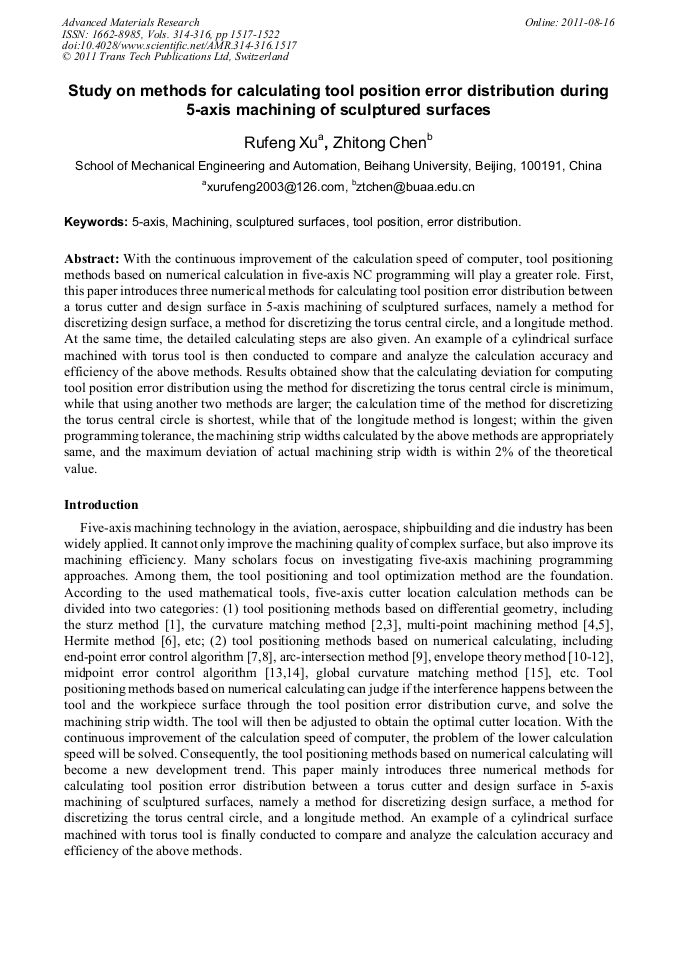

Study on Methods for Calculating Tool Position Error Distribution during 5-Axis Machining of Sculptured Surfaces

Abstract:

With the continuous improvement of the calculation speed of computer, tool positioning methods based on numerical calculation in five-axis NC programming will play a greater role. First, this paper introduces three numerical methods for calculating tool position error distribution between a torus cutter and design surface in 5-axis machining of sculptured surfaces, namely a method for discretizing design surface, a method for discretizing the torus central circle, and a longitude method. At the same time, the detailed calculating steps are also given. An example of a cylindrical surface machined with torus tool is then conducted to compare and analyze the calculation accuracy and efficiency of the above methods. Results obtained show that the calculating deviation for computing tool position error distribution using the method for discretizing the torus central circle is minimum, while that using another two methods are larger; the calculation time of the method for discretizing the torus central circle is shortest, while that of the longitude method is longest; within the given programming tolerance, the machining strip widths calculated by the above methods are appropriately same, and the maximum deviation of actual machining strip width is within 2% of the theoretical value.

• Periodical: Advanced Materials Research (Volumes 314-316)
• Pages: 1517-1522
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.314-316.1517
• Online since: August 2011
• Authors: Ru Feng Xu, Zhi Tong Chen
• Keywords: 5-Axis, Error Distribution, Machining, Sculptured Surfaces, Tool Position

References

[1] G.W. Vickers, K. Quan, Ball-mills Versus end-mills for curved surface Machining, ASME Journal of Engineering for Industry. 111 (1989) 22-26.

DOI: 10.1115/1.3188728

[2] J.P. Kruth, P. Klewais, Optimization and dynamic adaptation of the cutter inclination during five-axis milling of sculptured surfaces, CIRP Annals. 43 (1994) 443-448.

DOI: 10.1016/s0007-8506(07)62249-5

[3] Y.S. Lee, Admissible tool orientation control of gouging avoidance for 5-axis complex surface machining, Computer Aided Design. 29 (1997) 507-521.

DOI: 10.1016/s0010-4485(97)00002-x

[4] A. Warkentin, S. Bedi, F. Ismail, Five-axis milling of spherical surfaces, International Journal of Machine Tools and Manufacture. 36 (1996) 229-243.

DOI: 10.1016/0890-6955(95)98763-w

[5] A. Warkentin, F. Ismail, S. Bedi, Multi-point tool positioning strategy for 5-axis mashining of sculptured surfaces, Computer Aided Geometric Design. 17(2000) 83-100.

DOI: 10.1016/s0167-8396(99)00040-0

[6] M. Engeli, J. Waldvogel, T. Schnider, U.S. Patent 6,485,236 B1. (2002)

[7] M. Jin, L. Zhang, Z.T. Chen, End-points error controlling method for torus tool position optmiization in five-axis NC machinin, Journal of Beijing University of Aeronautics and Astronautics. 32 (2006) 1125-1128. (In Chinese)

[8] R.Q. Wang, M. Jin, W.Y. Chen, Z.T. Chen, Improvement of end-point error controlling tool path generation Method, Acta Aeronouticaet Astronautica Sinica. 28 (2007) 438-444. (In Chinese)

[9] P.J. Gray, S. Bedi, F. Ismail, Arc-intersect method for 5-axis tool positioning, Computer-Aided Design. 37 (2005) 663-674.

DOI: 10.1016/j.cad.2004.08.006

[10] D. Roth, S. Bedi, F. Ismail, S. Mann, Surface swept by a toroidal cutter during 5-axis machining, Computer-Aided Design. 33 (2001) 57-63.

DOI: 10.1016/s0010-4485(00)00063-4

[11] C.J. Chiou, Y.S. Lee, Swept surface determination for five-axis numerical control machining, International Journal of Machine Tools and Manufacture. 42 (2002) 1497-1507.

DOI: 10.1016/s0890-6955(02)00110-4

[12] C.J. Chiou, Accurate tool position for five-axis ruled surface machining by swept envelope approach, Computer-Aided Design. 36 (2004, 10): 967-974.

DOI: 10.1016/j.cad.2003.10.001

[13] R.F. Xu, W.Y. Chen, Z.T. Chen, Longitude Approach for 5-axis Tool Positioning with a Non-circle-section Revolving Cutter, Acta Aeronouticaet Astronautica Sinica. 31 (2010) 410-417. (In Chinese)

[14] Z.T. Chen, Y. Yue, R.F. Xu, A middle-point-error method in strip-width maximization-machining, Journal of Mechanical Engineering. 47 (2011) 117-123. (In Chinese)

DOI: 10.3901/jme.2011.01.117

[15] Y.R. Ni, D. Z Ma, H. Zhang, J.P. Guo, Optimal orientation control for torus tool 5-axis sculptured surface NC machining, Chinese Journal of Mechanical Engineering. 37 (2001) 87-91. (In Chinese)

DOI: 10.3901/jme.2001.02.087

[16] Y.J. Gong, M. Yun, X.C. Wang, Iterative algorithm of distance between free curve and surface and its visualization, Min-Micro Systems. 24 (2003) 2306-2308. (In Chinese)
