Studying on Rare Earth Aluminizing Process of GH4169 Superalloy

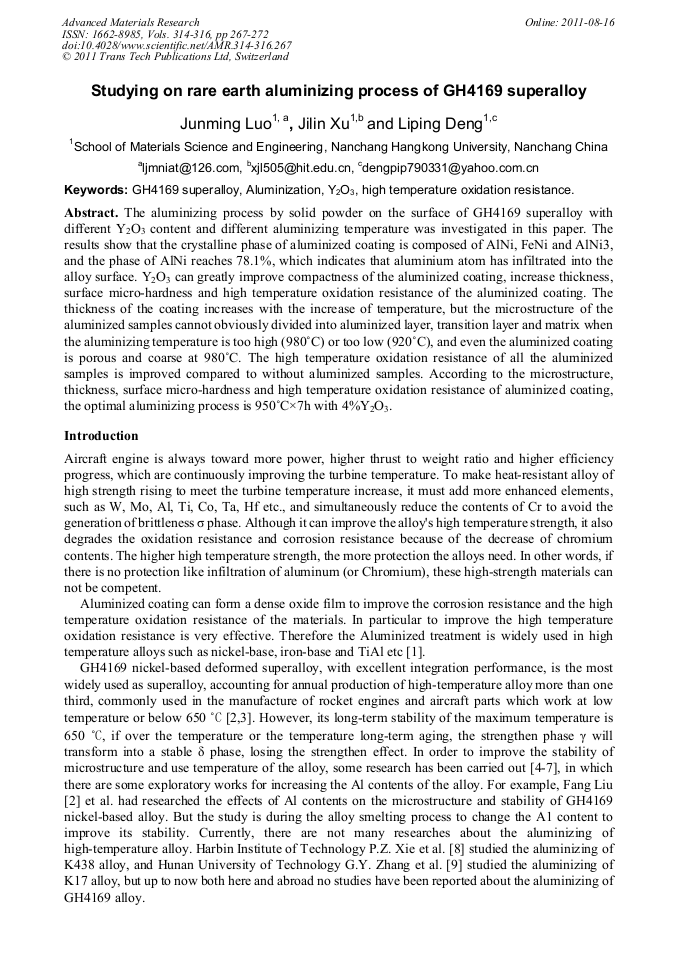

Abstract:

The aluminizing process by solid powder on the surface of GH4169 superalloy with different Y₂O₃ content and different aluminizing temperature was investigated in this paper. The results show that the crystalline phase of aluminized coating is composed of AlNi, FeNi and AlNi3, and the phase of AlNi reaches 78.1%, which indicates that aluminium atom has infiltrated into the alloy surface. Y₂O₃ can greatly improve compactness of the aluminized coating, increase thickness, surface micro-hardness and high temperature oxidation resistance of the aluminized coating. The thickness of the coating increases with the increase of temperature, but the microstructure of the aluminized samples cannot obviously divided into aluminized layer, transition layer and matrix when the aluminizing temperature is too high (980°C) or too low (920°C), and even the aluminized coating is porous and coarse at 980°C. The high temperature oxidation resistance of all the aluminized samples is improved compared to without aluminized samples. According to the microstructure, thickness, surface micro-hardness and high temperature oxidation resistance of aluminized coating, the optimal aluminizing process is 950°C×7h with 4%Y₂O₃.

• Periodical: Advanced Materials Research (Volumes 314-316)
• Pages: 267-272
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.314-316.267
• Online since: August 2011
• Authors: Jun Ming Luo, Ji Lin Xu, Li Ping Deng
• Keywords: Aluminization, GH4169 Superalloy, High Temperature Oxidation Resistance, Y₂O₃

References

[1] Y.G. Zhao, W. Zhou, Y.Q. Zhao, Rare metal Mater. and Eng. Vol. 34 (2005), p.1575

[2] F. Liu, W.R. Sun, S.L. Yang, Acta Metall sinica Vol 44 (2007), p.791 In Chinere

[3] G.A. Rao, M. Srinivas D.S. Sarma, Mater. Sci. Eng. A Vol 435~436 (2006), p.84

[4] C. Ruiz, A. Obabueki, K.Gillespie, Seventh Internationa Symposium on Superalloys, TMS, (1992), p.33

[5] J.F. Radavich, First International Symposium on the Metallurgy and Applications of Superalloy, TMS, (1989), p.229

[6] M.G. Burke M.K. Miller, Second International Symposium on Superalloys, TMS, (1991), p.337

[7] S.T. Wlodek, R.D. Field, Third International Symposium on Superalloys, TMS, (1994), p.659

[8] F.Z. Xie, S.W. Yang, L. Gao, Hot Working Technol. Vol 3 (2004), p.11 In Chinere

[9] G. Y. Zhang, H. Zhang, H.A. Zhang, Precious Metals Vol 27 (2007), p.48 In Chinere

[10] L.M. Zhu, J.B. Wen, L.S. Yang, Precious Metals Vol 42 (2009), p.12 In Chinere

[11] J.B. Wen, Q.A. Li, X.Y. Zhang. Hot Working Technol. Vol 5 (2002), p.24 In Chinere

[12] Y. Zhang, B.H. Tian, X.H. Chen, Foundry Technol. Vol 27 (2006), p.255 In Chinere

[13] J.B. Wen, W. Zhang. Trans. Mater. Heat Treat. Vol 22 (2004), p.291 In Chinere

[14] J.H. Yan, G.B. Chen, J.H. Lu, Vol 144 (2001), p.8 In Chinere

[15] W. Zhang, Z.Y. Zhang, G.H. Xu, Chinese Nonfer. Metals. Vol 144 (2001), p.8 In Chinere
