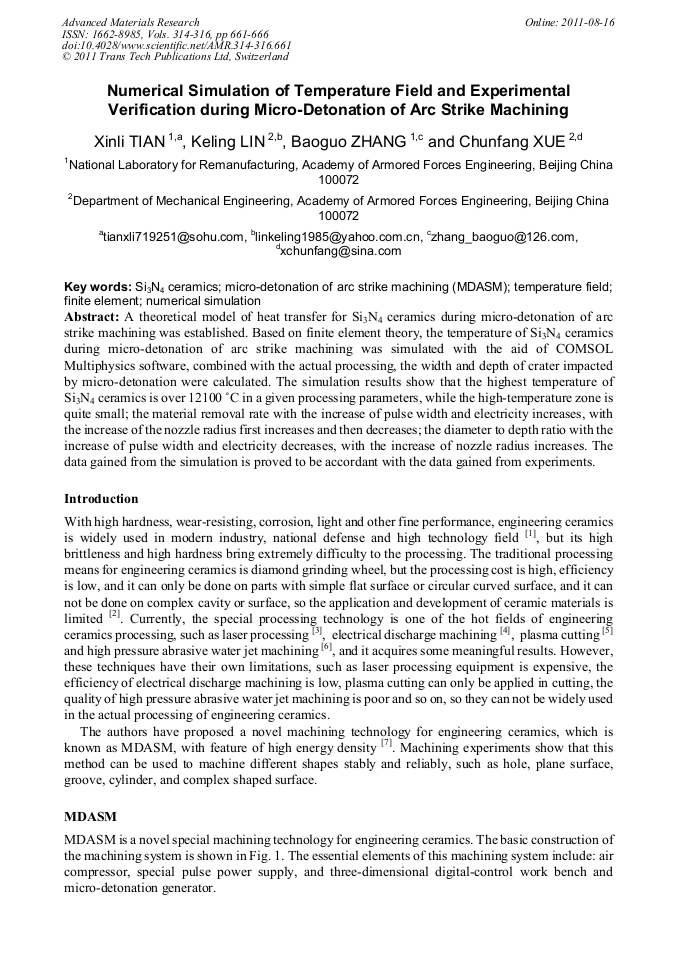

Numerical Simulation of Temperature Field and Experimental Verification during Micro-Detonation of Arc Strike Machining

Abstract:

A theoretical model of heat transfer for Si3N4 ceramics during micro-detonation of arc strike machining was established. Based on finite element theory, the temperature of Si3N4 ceramics during micro-detonation of arc strike machining was simulated with the aid of COMSOL Multiphysics software, combined with the actual processing, the width and depth of crater impacted by micro-detonation were calculated. The simulation results show that the highest temperature of Si3N4 ceramics is over 12100 °C in a given processing parameters, while the high-temperature zone is quite small; the material removal rate with the increase of pulse width and electricity increases, with the increase of the nozzle radius first increases and then decreases; the diameter to depth ratio with the increase of pulse width and electricity decreases, with the increase of nozzle radius increases. The data gained from the simulation is proved to be accordant with the data gained from experiments.

• Periodical: Advanced Materials Research (Volumes 314-316)
• Pages: 661-666
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.314-316.661
• Online since: August 2011
• Authors: Xin Li Tian, Ke Ling Lin, Bao Guo Zhang, Chun Fang Xue
• Keywords: Finite Element, Micro-Detonation of Arc Strike Machining, Numerical Simulation, Si₃N₄ Ceramics, Temperature Field

References

[1] Malzbender J, Steinbrech R W. Threshold fracture stress of thin ceramic components [J]. Journal of the European Ceramic Society, 2008, 28 (1): 247-252.

DOI: 10.1016/j.jeurceramsoc.2007.05.017

[2] Zhigao Luo. Study on surface quality of ceramics after electrical discharge machining [J]. Chinese Journal of Mechanical Engineering, 2000, 36(11): 75-79.

DOI: 10.3901/jme.2000.11.075

[3] Lei Hong, Lijun Li, Chunlei Ju. Investigation of cutting of Si3N4 engineering ceramics with Q-switched pulse CO2 laser [J]. Chinese Journal of Mechanical Engineering, 2002, 38(6): 61-66.

DOI: 10.3901/jme.2002.06.061

[4] Yonghong Liu, Lili Yu, Xiaopeng Li , et al. Technology for electrical discharge grinding of non-conductive engineering ceramics [J]. Chinese Journal of Mechanical Engineering, 2008, 44(8): 132-136.

DOI: 10.1049/cp:20060968

[5] Wenji Xu, Yishen Lu, Zhuji Jin, et al. Plasma arc cutting process for engineering ceramics [J]. Chinese Journal of Mechanical Engineering, 2002, 38(Supplement): 73-75.

DOI: 10.3901/jme.2002.supp.073

[6] Jun Wang. Abrasive waterjet machining of engineering materials [M]. Switzerland:Tans Tech Publications LTD, 2003: 12-15.

[7] Xinli Tian, Junfei Yang, Chao Liu, et al. Study of engineering ceramic machining with a new design of ripple controlled micro-detonation of electrode arc striking [J]. International Journal of Advanced Manufacture Technology, 2010, 48: 529-536.

DOI: 10.1007/s00170-009-2289-z

[8] Chuansong Wu. The jointing heat process and the modality of melt pool [M]. Chinese Press of Mechanical Industry, 2008, 1: 22-24.

[9] Dalun Ye, Jianhua Hu. Practical inorganic thermodynamic data manual [M]. Metallurgical Industry Press, 2002: 72-73.
