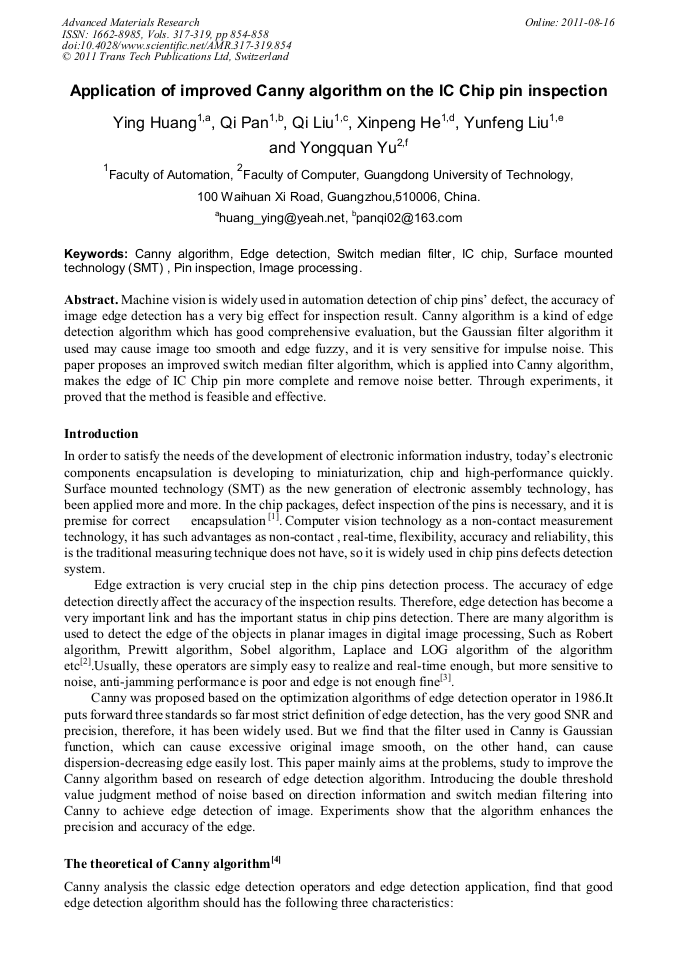

Application of Improved Canny Algorithm on the IC Chip pin Inspection

Abstract:

Machine vision is widely used in chip pin automation detection of defects, the accuracy of image edge extraction for detection result has very big effect. Canny edge detection algorithm is a kind of edge detection algorithm which have good comprehensive evaluation, but the Gaussian filter algorithm it used may cause image too smooth and fuzzy of the edge, and it is very sensitive for impulse noise. This paper discusses the improved methods of Canny, proposes an improved switch median filter algorithm, which is applied into Canny algorithm, makes the edge of IC Chip pin more complete and remove noise better.

• Periodical: Advanced Materials Research (Volumes 317-319)
• Pages: 854-858
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.317-319.854
• Online since: August 2011
• Authors: Ying Huang, Qi Pan, Qi Liu, Xin Peng He, Yun Feng Liu, Yong Quan Yu
• Keywords: Canny Algorithm, Edge Detection, IC Chip, Image Processing, Pin Inspection, Surface Mounted Technology (SMT), Switch Median Filter

References

[1] Shiying ZHANG: Electronic Components & Materials. J. Vol. 18(1999), p.29.

[2] Jixiang SUN: Image Processing (Science Press, China 2005).

[3] Milan Sonka, Vaclav Hlavac, Roger Boyle: Image processing, Analysis and Machine Vision(3th), (CL-Engineering, American 2007).

DOI: 10.1117/12.256634

[4] CANNY J F: IEEE Transactions on Pattern Analysis and Machine Intelligence. J. Vol. 8(1986), pp.658-663.

[5] Yunde JIA: Machine Vision(Science Press, China 2000).

[6] Yuchi LIN, Yanping CUI, Yinguo HUANG: Optics and Precision Engineering. J. Vol. 14(2006), p.509.

[7] Zhengjun TANG, Daizhi LIU: Aerospace Shanghai. J. 17(2000), p.7.

[8] Wenjuan WANG, Feng HAN, Tong CUI: Journal of Inner Mongolia Polytechnic University. J. 27(2008), p.65.

[9] Wen-hao HE, Kui YUAN, Wei ZOU: Systems Engineering and Electronics. J. 31(2009), p.233.

[10] Peng QING, Run-tao DING: Journal of Image and Graphics. J. 9 (2004) , p.412.
