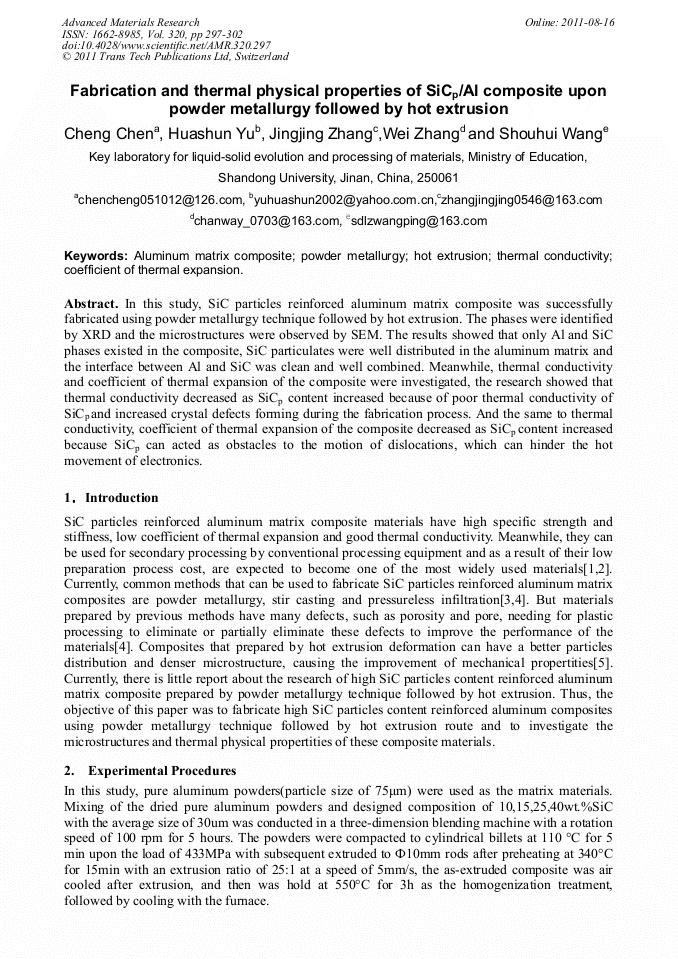

Fabrication and Thermal Physical Properties of SiC_p/Al Composite upon Powder Metallurgy Followed by Hot Extrusion

Abstract:

In this study, SiC particles reinforced aluminum matrix composite was successfully fabricated using powder metallurgy technique followed by hot extrusion. The phases were identified by XRD and the microstructures were observed by SEM. The results showed that only Al and SiC phases existed in the composite, SiC particulates were well distributed in the aluminum matrix and the interface between Al and SiC was clean and well combined. Meanwhile, thermal conductivity and coefficient of thermal expansion of the composite were investigated, the research showed that thermal conductivity decreased as SiC_p content increased because of poor thermal conductivity of SiC_p and increased crystal defects forming during the fabrication process. And the same to thermal conductivity, coefficient of thermal expansion of the composite decreased as SiC_p content increased because SiC_p can acted as obstacles to the motion of dislocations, which can hinder the hot movement of electronics.

• Periodical: Advanced Materials Research (Volume 320)
• Pages: 297-302
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.320.297
• Online since: August 2011
• Authors: Cheng Chen, Hua Shun Yu, Jing Jing Zhang, Wei Zhang, Shou Hui Wang
• Keywords: Aluminum Matrix Composite (AMC), Coefficient of Thermal Expansion, Hot Extrusion, Powder metallurgy, Thermal Conductivity (TC)

References

[1] G. Ramu, Ranjit Bauri: Materials and Design. Vol. 30(2009), p.3554.

[2] M.H. Song, Z.Y. Xiu, G.H. Wu and T. Song: Aerospace Material & Technology. Vol. 6(2005), p.44.

[3] J.M. Torralba, C.E. da Costa and F. Velasco: J. Mater. Pro. Technol. Vol. 133(2003), pp.204-205.

[4] N.P. Cheng, S.M. Zeng and Z.Q. Chen: Powder Metallurgy Technology. Vol. 24(6)(2006), p.417.

[5] B. Mani, M.H. Paydar: J. Alloy. Compd. (2009), p.1.

[6] B.D. Cullity: Elements of X-ray Diffraction(Prentice Hall, London 2001).

[7] Z.L. Shi, J.M. Yang, J.C. Lee and D. Zhang: Mater. Sci. Eng. A. Vol. 303(2001), p.46.

[8] H.S. Lee, J.S. Yeo, S.H. Hong and D.J. Yoon: J. Mater. Pro. Technol. Vol. 113(2001), pp.204-205.

[9] N.S. R: J. Am. Ceram. Soc. Vol. 67(6)(1984), p.428.

[10] J. Chen, F.S. Pan and T.M. Liu: Light Metals. Vol. 9(2000), p.52.

[11] S. Seshan, M. Jayamathy and S.V. Kailas: Mater. Sci. Eng. A. Vol. 363(2003), p.345.

[12] C.C. Wang: PhD thesis of Shangdong University(2006).
