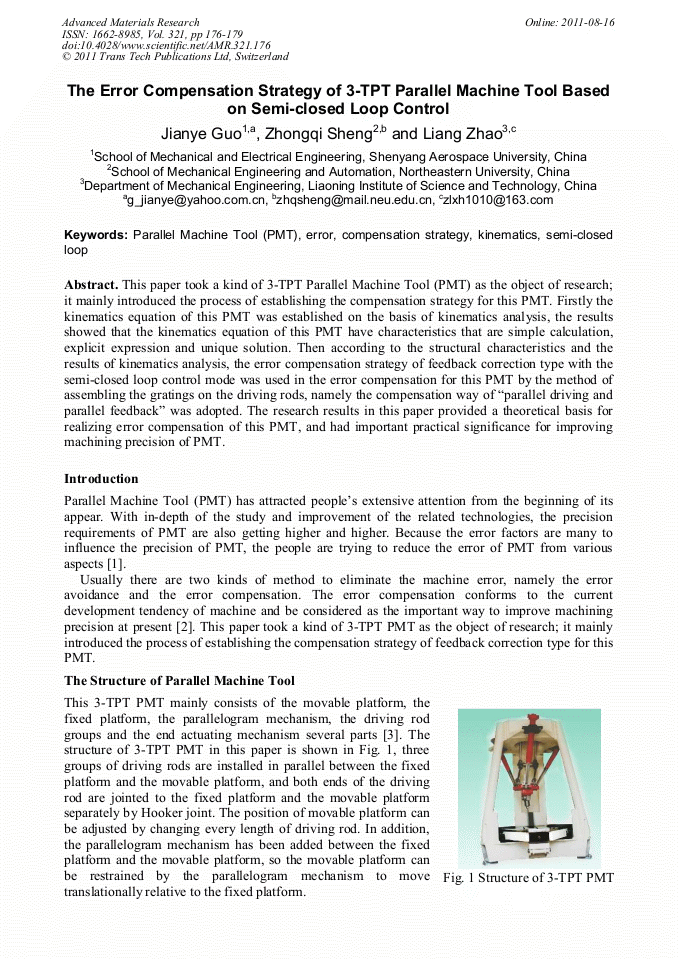

The Error Compensation Strategy of 3-TPT Parallel Machine Tool Based on Semi-Closed Loop Control

Abstract:

This paper took a kind of 3-TPT Parallel Machine Tool (PMT) as the object of research; it mainly introduced the process of establishing the compensation strategy for this PMT. Firstly the kinematics equation of this PMT was established on the basis of kinematics analysis, the results showed that the kinematics equation of this PMT have characteristics that are simple calculation, explicit expression and unique solution. Then according to the structural characteristics and the results of kinematics analysis, the error compensation strategy of feedback correction type with the semi-closed loop control mode was used in the error compensation for this PMT by the method of assembling the gratings on the driving rods, namely the compensation way of “parallel driving and parallel feedback” was adopted. The research results in this paper provided a theoretical basis for realizing error compensation of this PMT, and had important practical significance for improving machining precision of PMT.

• Periodical: Advanced Materials Research (Volume 321)
• Pages: 176-179
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.321.176
• Online since: August 2011
• Authors: Jian Ye Guo, Zhong Qi Sheng, Liang Zhao
• Keywords: Compensation Strategy, Error, Kinematics, Parallel Machine Tool (PMT), Semi-Closed Loop

References

[1] Huang Zhen, Kong Lingfu and Fang Yuefa: The Parallel Robot Mechanism and Control Theory, China Machine Press, Beijing (1997).

[2] Cao Yongjie and Fu Jianzhong: Research on the Error Measurement and Error Compensation Technology for CNC Machine Tools, Manufacturing Technology & Machine Tool, 4(2007), pp.38-41.

[3] Guo Jianye: Research on the Accuracy Analysis and Relevant Problems of Lower-mobility Tripod Hybrid Machine Tools, Ph.D., Northeastern University(2009).

[4] Jingxia Yuan and Jun Ni: The real-time compensation technique for CNC machining systems, Mechatronics, 8(1998), pp.359-380.

DOI: 10.1016/s0957-4158(97)00062-7

[5] Huang T and Whitehouse D. J.: A simple yet effective approach for error compensation of a tripod-based parallel kinematic machine, CIRP Annals, Vol.49-1(2000), pp.281-285.

DOI: 10.1016/s0007-8506(07)62947-3

[6] Jiao Guotai, Li Qing, Feng Yonghe and Wang Feng: A Compensation Method of The Robot Pose Error, Journal of North China Institute of Technology, Vol.24-2(2003), pp.104-107.
