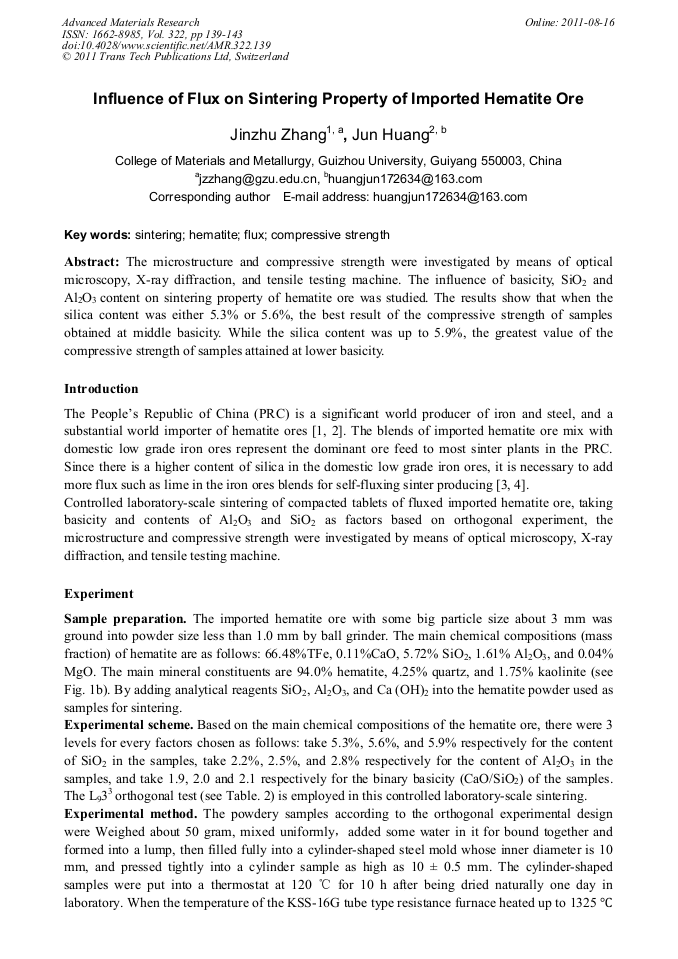

Influence of Flux on Sintering Property of Imported Hematite Ore

Abstract:

The microstructure and compressive strength were investigated by means of optical microscopy, X-ray diffraction, and tensile testing machine. The influence of basicity, SiO₂ and Al₂O₃ content on sintering property of hematite ore was studied. The results show that when the silica content was either 5.3% or 5.6%, the best result of the compressive strength of samples obtained at middle basicity. While the silica content was up to 5.9%, the greatest value of the compressive strength of samples attained at lower basicity.

• Periodical: Advanced Materials Research (Volume 322)
• Pages: 139-143
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.322.139
• Online since: August 2011
• Authors: Jin Zhu Zhang, Jun Huang
• Keywords: Compressive Strength, Flux, Hematite, Sintering

References

[1] J.M.F. Clout, J.R. Manuel. Powder technology, 2003, 130: 393-399.

[2] Chen Ping, Wang Chang-qiu, Wu Keng, etal. Iron and Steel, 2004, 39(5): 1-4. (in Chinese).

[3] Feng Xiangpeng, Zhang Yu-zhu, Li Zhenguo, etal. Sintering and Pelletizing, 2004, 29(2): 9-11. (in Chinese).

[4] Zhang Tie-gen, He Shu-zheng. Research on Iron and Steel, 2008, 36(1): 13-16. (in Chinese).

[5] Wu Sheng-li, Du Jian-xin, Ma Hong-bin, etal. Journal of University of Science and Technology Beijing, 2005, 27(3): 291-293. (in Chinese).

[6] Ao Wan-zhong, Deng Hai-liang, Xiao Ju-guang, etal. Sintering and Pelletizing, 2006, 31(3): 12-15 (in Chinese).

[7] Jin Ming-fang, Zhu Dao-fei, Zheng Zhong, Shen Feng-man. Journal of Northeastern University (Natural Science), 2009. 30(1): 86-89. (in Chinese).
