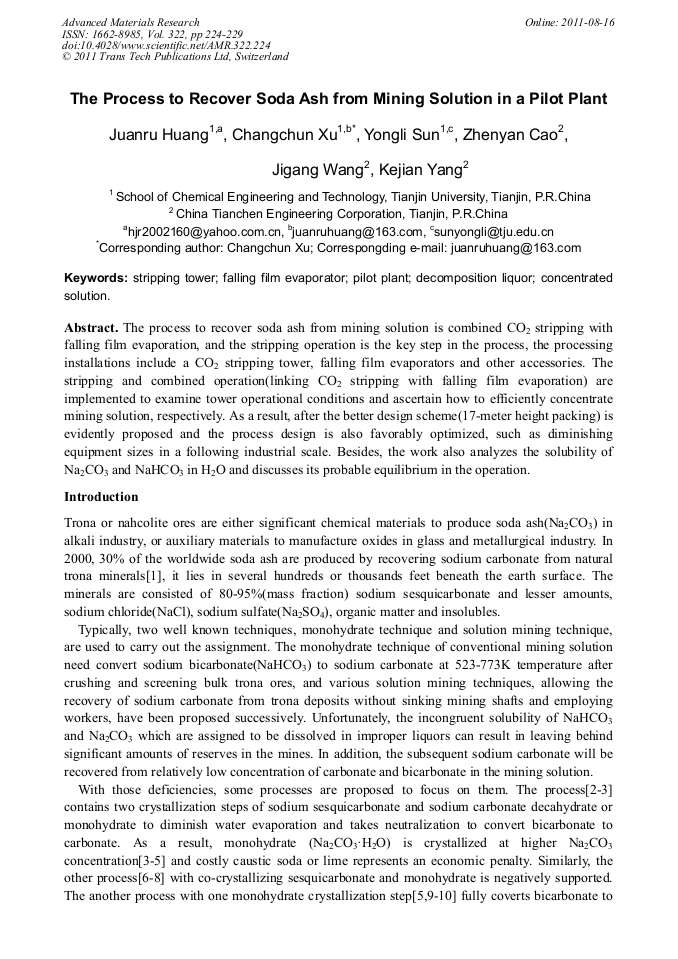

The Process to Recover Soda Ash from Mining Solution in a Pilot Plant

Abstract:

The process to recover soda ash from mining solution is combined CO₂ stripping with falling film evaporation, and the stripping operation is the key step in the process, the processing installations include a CO₂ stripping tower, falling film evaporators and other accessories. The stripping and combined operation(linking CO₂ stripping with falling film evaporation) are implemented to examine tower operational conditions and ascertain how to efficiently concentrate mining solution, respectively. As a result, after the better design scheme(17-meter height packing) is evidently proposed and the process design is also favorably optimized, such as diminishing equipment sizes in a following industrial scale. Besides, the work also analyzes the solubility of Na₂CO₃ and NaHCO₃ in H₂O and discusses its probable equilibrium in the operation.

• Periodical: Advanced Materials Research (Volume 322)
• Pages: 224-229
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.322.224
• Online since: August 2011
• Authors: Juan Ru Huang, Chang Chun Xu, Yong Li Sun, Zhen Yan Cao, Ji Gang Wang, Ke Jian Yang
• Keywords: Concentrated Solution, Decomposition Liquor, Falling Film Evaporator, Pilot Plant, Stripping Tower

References

[1] Information on http: /www. cefic. be/files/Publications/ESAPA_Soda_Ash_Process_BREF3. pdf.

[3] W.R. Flint, W.C. Copenhafer, and W.C. Copenhaver, U.S. Patent 5, 262, 134. (1993).

[4] W.C. Copenhafer, U.S. Patent 140, 945. (2007).

[5] Gartner, R.S. Seckler and Witkamp: Chem Eng. Data. Vol. 49(2004), pp.116-125.

[6] D.E. Smith, W.C. Copenhafer and R.W. Chastain, U.S. Patent, 6, 428, 759. (2002).

[7] W.C. Copenhafer and D.E. Smith, U.S. Patent 6, 228, 335. (2001).

[8] W.C. Copenhafer and D.E. Smith, U.S. Patent 054, 842. (2002).

[9] W.C. Copenhafer and D.E. Smith, U.S. Patent 009, 409. (2002).

[10] W.C. Copenhafer, D.E. Smith and D.F. Niedringhaus, U.S. Patent 5, 283, 054. (1994).

[11] D.E. Smith, U.S. Patent 2, 192, 140. (2002).

[12] W.C. Copenhafer and T.H. Neuman, U.S. Patent 007, 923. (2003).

[13] T.H. Neuman and R.W. Chastain, U.S. Patent 5, 766, 270. (1998).

[14] W.C. Copenhafer, U.S. Patent 095, 912. (2003).

[15] T.A. Liang, Z.T. Zhang and S.M. Xu, CN Patent 97, 220, 464. 4. (1999).

[16] X.G. Li, B. Jiang, S.M. Xu and W. Zhou CN Patent 02, 285, 267. 0. (2004).

[17] Wuhan University: Analytical Chemistry Experiment(Higher Education Press, Beijing 2001).
