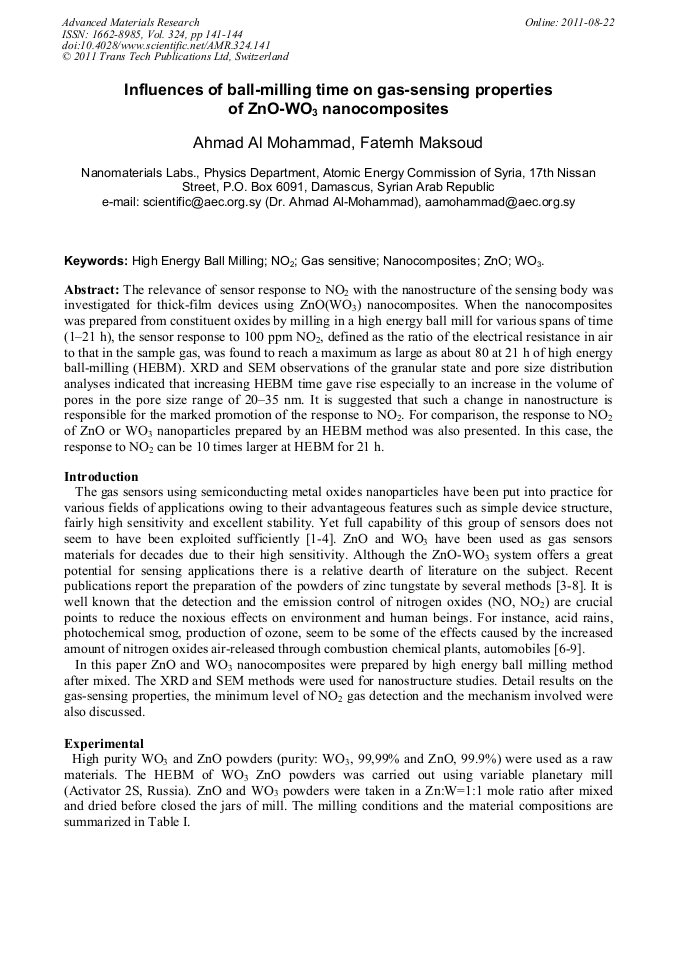

Influences of Ball-Milling Time on Gas-Sensing Properties of ZnO-WO₃ Nanocomposites

Abstract:

The relevance of sensor response to NO₂ with the nanostructure of the sensing body was investigated for thick-film devices using ZnO(WO₃) nanocomposites. When the nanocomposites was prepared from constituent oxides by milling in a high energy ball mill for various spans of time (1–21 h), the sensor response to 100 ppm NO₂, defined as the ratio of the electrical resistance in air to that in the sample gas, was found to reach a maximum as large as about 80 at 21 h of high energy ball-milling (HEBM). XRD and SEM observations of the granular state and pore size distribution analyses indicated that increasing HEBM time gave rise especially to an increase in the volume of pores in the pore size range of 20–35 nm. It is suggested that such a change in nanostructure is responsible for the marked promotion of the response to NO₂. For comparison, the response to NO₂ of ZnO or WO₃ nanoparticles prepared by an HEBM method was also presented. In this case, the response to NO₂ can be 10 times larger at HEBM for 21 h.

• Periodical: Advanced Materials Research (Volume 324)
• Pages: 141-144
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.324.141
• Online since: August 2011
• Authors: Ahmad Al Mohammad, Fatemh Maksoud
• Keywords: Gas Sensitive, High-Energy Ball Milling (HEM), Nanocomposite, No₂, WO₃, Zinc Oxide (ZnO)

References

[1] Gil-Su Kim, Young Jung Lee, Dae-Gun Kim, Young Do Kim, J. Alloys Comp. 454 (2008) 327.

[2] Dae-Gun Kima, Kyung Ho Mina, Si-Young Changb, Sung-Tag Ohc, Chang-Hee Lee, Young Do Kima, Mater. Sci. Eng. A 399 (2005) 326.

[3] Ahmad Al Mohammad, phys. Stat. sol. (a) 205, No. 12 (2008) 2880.

[4] C.V. Ramana, S. Utsunomiya, R.C. Ewing, C.M. Julien, U. Becker, J. Phys. Chem. B 110 (2006) 10430.

[5] H. Meixner, J. Gerblinger, U. Lampe, M. Fleischer, Sensors Actuators B 23 (1995) 119.

[6] Z.G. Huanga, Z.P. Guoa, A. Calka, D. Wexler, C. Lukeyc, H.K. Liu, J. Alloys Comp. 422 (2006) 299.

[7] Gwan-Hyoung Lee, Shinhoo Kang, J. Alloys Comp. 419 (2006) 281.

[8] M.C. Yang, J. Xu, Z.Q. Hu, Int. J. Refractory Metals Hard Mater. 22 (2004) 1.

[9] Zhen Xiong, Gangqin Shao, Xiaoliang Shi, Xinglong Duan, Li Yan, Int. J. Refractory Metals Hard Mater. 26 (2008) 242.

[10] Ahmad Al Mohammad, Vacuum, 83 (2009) 1326.

[11] A. Galembeck, O. L. Alves, Thin Solid Films 365 (2000) 90.

[12] S. Sathyamurthy, K. Salama, Physica C 34 (2000) 12479.

[13] A. Al Mohammad, Phys. Status Solidi A 205 (2008) 2880.

[14] O.K. Tan, W. Zhu, Q. Yan, L.B. Kong, Sens. Actuators B 65 (2000) 361.

[15] O.K. Tan, W. Cao, W. Zhu, Sens. Actuators B 63 (2000) 129.

[16] Ahmad Al Mohammad, Acta Physica Polonica A, Vol. 116 (2009) 240.
