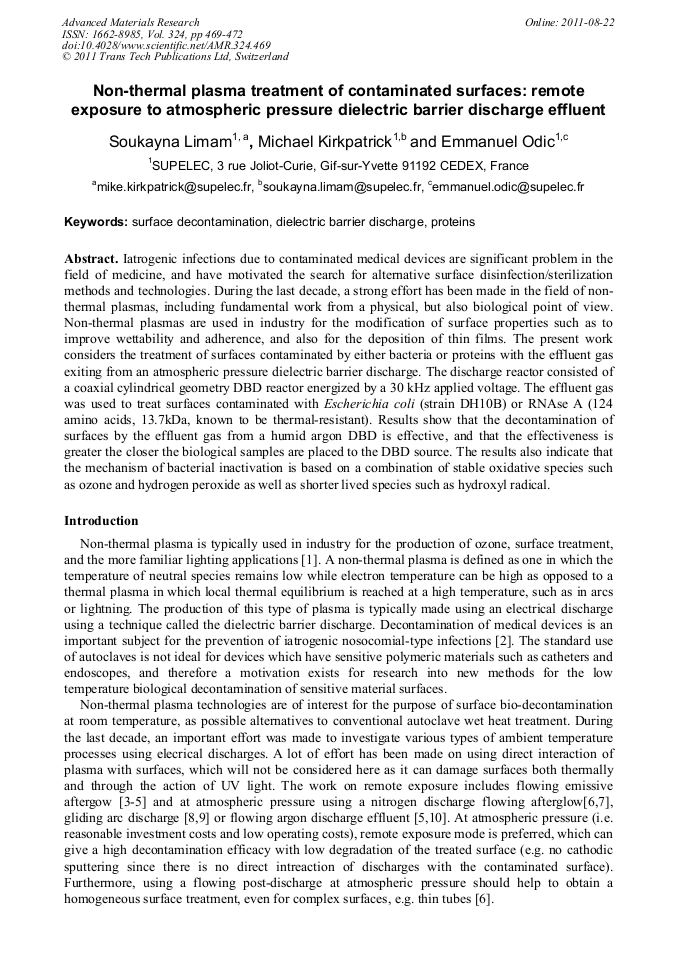

Non-Thermal Plasma Treatment of Contaminated Surfaces: Remote Exposure to Atmospheric Pressure Dielectric Barrier Discharge Effluent

Abstract:

Iatrogenic infections due to contaminated medical devices are significant problem in the field of medicine, and have motivated the search for alternative surface disinfection/sterilization methods and technologies. During the last decade, a strong effort has been made in the field of non-thermal plasmas, including fundamental work from a physical, but also biological point of view. Non-thermal plasmas are used in industry for the modification of surface properties such as to improve wettability and adherence, and also for the deposition of thin films. The present work considers the treatment of surfaces contaminated by either bacteria or proteins with the effluent gas exiting from an atmospheric pressure dielectric barrier discharge. The discharge reactor consisted of a coaxial cylindrical geometry DBD reactor energized by a 30 kHz applied voltage. The effluent gas was used to treat surfaces contaminated with Escherichia coli (strain DH10B) or RNAse A (124 amino acids, 13.7kDa, known to be thermal-resistant). Results show that the decontamination of surfaces by the effluent gas from a humid argon DBD is effective, and that the effectiveness is greater the closer the biological samples are placed to the DBD source. The results also indicate that the mechanism of bacterial inactivation is based on a combination of stable oxidative species such as ozone and hydrogen peroxide as well as shorter lived species such as hydroxyl radical.

• Periodical: Advanced Materials Research (Volume 324)
• Pages: 469-472
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.324.469
• Online since: August 2011
• Authors: Soukayna Limam, Michael Kirkpatrick, Emmanuel Odic
• Keywords: Dielectric Barrier Discharge, Protein, Surface Decontamination

References

[1] U. Kogelschatz, Dielectric-Barrier Discharges: Their History, Discharge Physics, and Industrial Applications, Plasma Chemistry and Plasma Processing. 23 (2003) 1-46.

[2] C.J. Crnich, D.G. Maki, The Promise of Novel Technology for the Prevention of Intravascular Device-Related Bloodstream Infection. I. Pathogenesis and Short-Term Devices, Clinical Infectious Diseases. 34 (2002) 1232-1242.

DOI: 10.1086/339863

[3] M. Moisan, J. Barbeau, S. Moreau, J. Pelletier, M. Tabrizian, L. Yahia, Low-temperature sterilization using gas plasmas: a review of the experiments and an analysis of the inactivation mechanisms, International Journal of Pharmaceutics. 226 (2001) 1-21.

DOI: 10.1016/s0378-5173(01)00752-9

[4] S. Villeger, S. Cousty, A. Ricard, M. Sixou, Sterilization of E. coli bacterium in a flowing N2–O2 post-discharge reactor, J. Phys. D: Appl. Phys. 36 (2003) L60-L62.

DOI: 10.1088/0022-3727/36/13/102

[5] J. Sarrette, S. Cousty, N. Merbahi, A. Nègre-Salvayre, F. Clément, Observation of antibacterial effects obtained at atmospheric and reduced pressures in afterglow conditions, The European Physical Journal Applied Physics. 49 (2010) 4.

DOI: 10.1051/epjap/2009169

[6] A. Pointu, A. Ricard, E. Odic, M. Ganciu, Nitrogen Atmospheric Pressure Post Discharges for Surface Biological Decontamination inside Small Diameter Tubes, Plasma Process. Polym. 5 (2008) 559-568.

DOI: 10.1002/ppap.200800016

[7] A. Pointu, A. Ricard, B. Dodet, E. Odic, J. Larbre, M. Ganciu, Production of active species in N2-O2 flowing post-discharges at atmospheric pressure for sterilization, J. Phys. D: Appl. Phys. 38 (2005) 1905-1909.

DOI: 10.1088/0022-3727/38/12/009

[8] G. Kamgang-Youbi, J. Herry, T. Meylheuc, J. Brisset, M. Bellon-Fontaine, A. Doubla, et al., Microbial inactivation using plasma-activated water obtained by gliding electric discharges, Letters in Applied Microbiology. 48 (2009) 13-18.

DOI: 10.1111/j.1472-765x.2008.02476.x

[9] J. Kamgang, R. Briandet, J. Herry, J. Brisset, M. Naïtali, Destruction of planktonic, adherent and biofilm cells of Staphylococcus epidermidis using a gliding discharge in humid air, Journal of Applied Microbiology. 103 (2007) 621-628.

DOI: 10.1111/j.1365-2672.2007.03286.x

[10] M. Kirkpatrick, B. Dodet, E. Odic, Atmospheric Pressure Humid Argon DBD Plasma for the Application of Sterilization - Measurement and Simulation of Hydrogen, Oxygen, and Hydrogen Peroxide Formation, Intern. J. of Plasma Environnemental Science & Technol. 1 (2007) 96-101.
