Effect of Complex Electrodischarge Grinding for Electrically Conductive PCD

Abstract:

Polycrystalline Composite Diamond (PCD) is excellent in chipping resistance despite its very high hardness. However, it is not easy to EDM or grind PCD. To realize high efficiency and high quality processing of PCD simply and at low cost, the authors devised new PCD (EC-PCD) by using electrically conductive diamond particles and applied a complex electrodischarge grinding method. In this study, investigation is made on effective grinding condition to realize high efficiency, low and stable grinding force and low wheel wear in complex electrodischarge grinding. As a result, superior grinding property was obtained when the grinding wheel was set at minus polarity, and set peak current of i_P= 4 and 6 A was applied. Furthermore it also became clear that additional conventional grinding process followed after complex electrodischarge grinding improved the surface condition.

You might also be interested in these eBooks

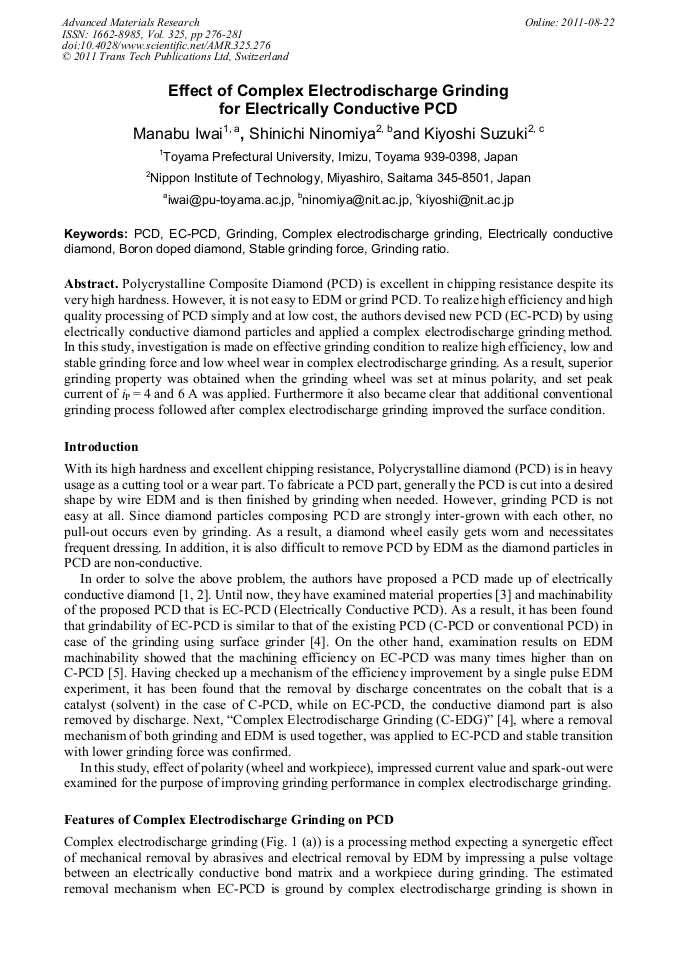

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 325)

Pages:

276-281

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.325.276

Citation:

Cite this paper

Online since:

August 2011

Authors:

Manabu Iwai, Shinichi Ninomiya, Kiyoshi Suzuki

Keywords:

Boron-Doped Diamond (BDD), Complex Electrodischarge Grinding, EC-PCD, Electrically Conductive Diamond, Grinding, Grinding Ratio, PCD, Stable Grinding Force

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] K. Suzuki, M. Iwai, S. Ninomiya: Complex grinding assisted with electrical discharge machining for EC-PCD, Proceeding of JSAT Conference ABTEC2009 (2009) pp.101-104.

Google Scholar

[2] K. Suzuki, M. Iwai, S. Ninomiya, T. Uematsu, et al.: Development of New PCD Made Up of Boron Doped Diamond Particles and its Machinability by EDM, Advanced Materials Research Vols. 76-78 (Trans Tech Publications, 2009) pp.684-689.

DOI: 10.4028/www.scientific.net/amr.76-78.684

Google Scholar

[3] M. Iwai, S. Ninomiya, K. Suzuki, et al.: Investigation on Material Property of Electrically Conductive Polycrystalline Composite Diamond (EC-PCD), Advanced Materials Research Vols. 126-128 (Trans Tech Publications, 2010) pp.639-644.

DOI: 10.4028/www.scientific.net/amr.126-128.639

Google Scholar

[4] M. Iwai, S. Ninomiya, K. Suzuki, et al.: Complex Grinding Assisted with Electrical Discharge Machining for Electrically Conductive PCD, Advanced Materials Research Vols. 126-128 (Trans Tech Publications, 2010) pp.591-596.

DOI: 10.4028/www.scientific.net/amr.126-128.591

Google Scholar

[5] S. Ninomiya, M. Iwai, K. Suzuki, et al.: EDM properties of EC-PCD using a copper electrode, Advanced Materials Research Vols. 126-128 (Trans Tech Publications, 2010) pp.521-526.

DOI: 10.4028/www.scientific.net/amr.126-128.521

Google Scholar
