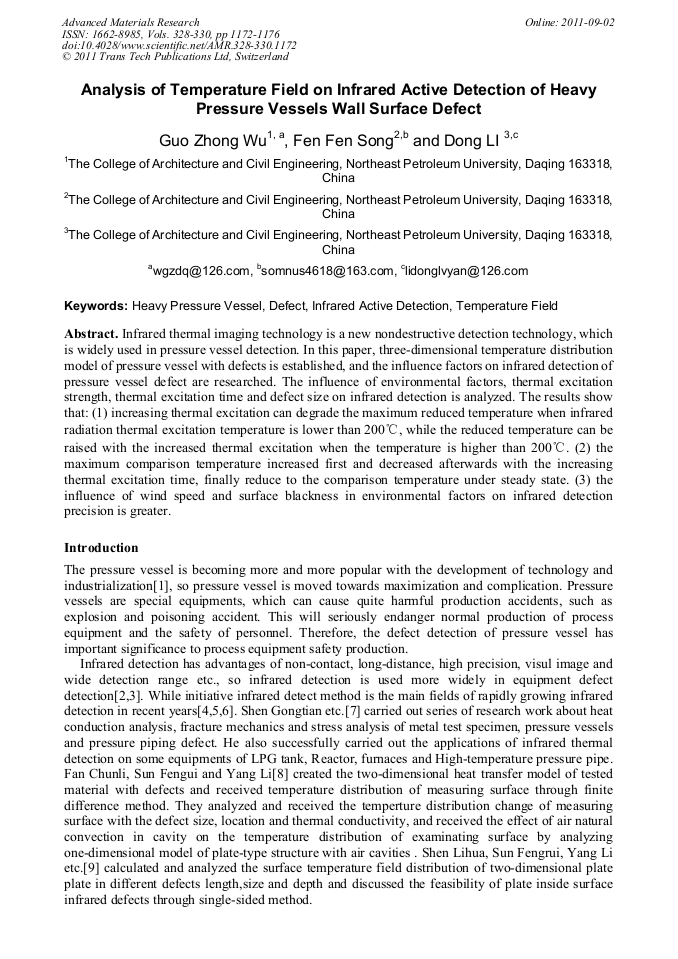

Analysis of Temperature Field on Infrared Active Detection of Heavy Pressure Vessels Wall Surface Defect

Abstract:

Infrared thermal imaging technology is a new nondestructive detection technology, which is widely used in pressure vessel detection. In this paper, three-dimensional temperature distribution model of pressure vessel with defects is established, and the influence factors on infrared detection of pressure vessel defect are researched. The influence of environmental factors, thermal excitation strength, thermal excitation time and defect size on infrared detection is analyzed. The results show that: (1) increasing thermal excitation can degrade the maximum reduced temperature when infrared radiation thermal excitation temperature is lower than 200°C, while the reduced temperature can be raised with the increased thermal excitation when the temperature is higher than 200°C. (2) the maximum comparison temperature increased first and decreased afterwards with the increasing thermal excitation time, finally reduce to the comparison temperature under steady state. (3) the influence of wind speed and surface blackness in environmental factors on infrared detection precision is greater.

• Periodical: Advanced Materials Research (Volumes 328-330)
• Pages: 1172-1176
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.328-330.1172
• Online since: September 2011
• Authors: Guo Zhong Wu, Fen Fen Song, Dong Li
• Keywords: Defect, Heavy Pressure Vessel, Infrared Active Detection, Temperature Field

References

[1] G.T. Shen and W.L. Zhang: National Center of Boiler and Pressure Vessel Inspection and Research, Vol. 26 (2004), p.37. (In Chinese).

[2] A.M. Birk and M.H. Cunningham: Thermographic Inspection of Rail-Car Thermal Insulation, Vol. 122 (2000) , p.494.

DOI: 10.1115/1.1310365

[3] T. Sakagami and S. Kubo: Development of a New Non-destructive Testing Technique for Quantitative Evaluations of Delamination Defects in Concrete Structures Based on Phase Delay Measurement Using Lock-in Thermography, Vol. 43 (2002) , p.311.

DOI: 10.1016/s1350-4495(02)00157-3

[4] Y.M. Wang, S.S. Wang and N. Ma: Pulse Thermographic Method for Measuring Defect Depth. Nondestructive Testing, Vol. 26 (2004) , p.124. (In Chinese).

[5] Ch.R. Arndt, M. Röllig and C. Rieck: Application of Impulse-thermography for Non-destructive Assessment of Concrete Structures, Vol. 28 (2006) , p.393.

DOI: 10.1016/j.cemconcomp.2006.02.011

[6] K. Kurita and M. Oyado: Active Infrared Thermographic Inspection Technique for Elevated Concrete Structures Using Remote Heating System, Vol. 52 (2009) , p.208.

DOI: 10.1016/j.infrared.2009.07.010

[7] G.T. Shen, T. Li and Z.H. Yao: Infrared Thermography for High Temperature Pressure Pipes. Nondestructive Testing, Vol. 24 (2002) , p.473. (In Chinese).

[8] C.L. Fan, F.R. Sun and L. Yang: Temperature Distribution of Defect Surface and Effect of Natural Convection on Thermographic Inspection, Vol. 37 (2005) , p.505. (In Chinese).

[9] F.R. Sun and L. Yang: Study on Temperature Distribution Rule of Steel Plate with Inner Surface Defect Inspected by Single-sided Thermography, Vol. 36 (2006) , p.19. (In Chinese).
