Preparation of Flexible Graphite Sheet with Fine Flake Graphite

Qi Lai

doi:10.4028/www.scientific.net/AMR.328-330.1642

Paper Titles

Research on Inner Cooling Apparatus Sets in the Mold of 700mm×700mm Bloom
p.1623

Study on the Graphite-Based Cementitious Material for the Soil Moisture Detective Probe
p.1627

Preparation and Applications of Compatibilizer in HPVC/EPDM
p.1632

Comparative Study on Thermal, Compressive, and Wear Properties of Palm Slag Brake Pad Composite with other Fillers
p.1636

Preparation of Flexible Graphite Sheet with Fine Flake Graphite
p.1642

The Bending of Symmetrical Laminated Composite Plate Based on Symplectic Method
p.1646

Effects of La on the Microstructures and Mechanical Properties of AZ91 Magnesium Alloy and its Mechanism
p.1650

Studies on Mechanical Properties and Wear Behaviour of In Situ Al-TiC Composites
p.1654

Research on the Development of Large Application Specific Integrated Circuit Based on SOPC
p.1663

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 328-330Preparation of Flexible Graphite Sheet with Fine...

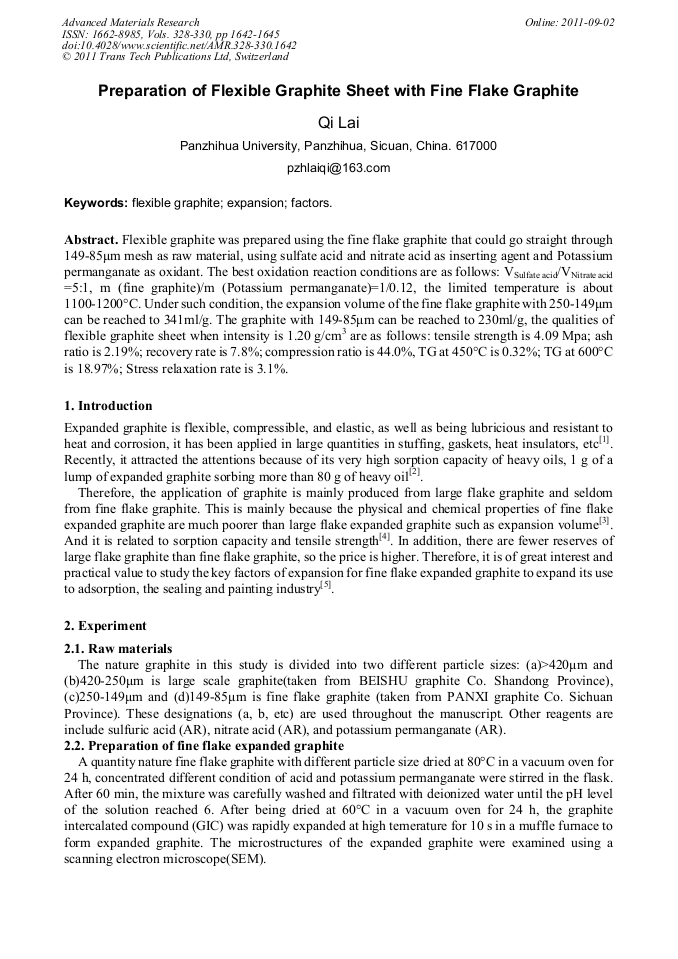

Preparation of Flexible Graphite Sheet with Fine Flake Graphite

Abstract:

Flexible graphite was prepared using the fine flake graphite that could go straight through 149-85μm mesh as raw material, using sulfate acid and nitrate acid as inserting agent and Potassium permanganate as oxidant. The best oxidation reaction conditions are as follows: V_{Sulfate acid}/V_{Nitrate acid}=5:1, m (fine graphite)/m (Potassium permanganate)=1/0.12, the limited temperature is about 1100-1200°C. Under such condition, the expansion volume of the fine flake graphite with 250-149μm can be reached to 341ml/g. The graphite with 149-85μm can be reached to 230ml/g, the qualities of flexible graphite sheet when intensity is 1.20 g/cm³ are as follows: tensile strength is 4.09 Mpa; ash ratio is 2.19%; recovery rate is 7.8%; compression ratio is 44.0%, TG at 450°C is 0.32%; TG at 600°C is 18.97%; Stress relaxation rate is 3.1%.
