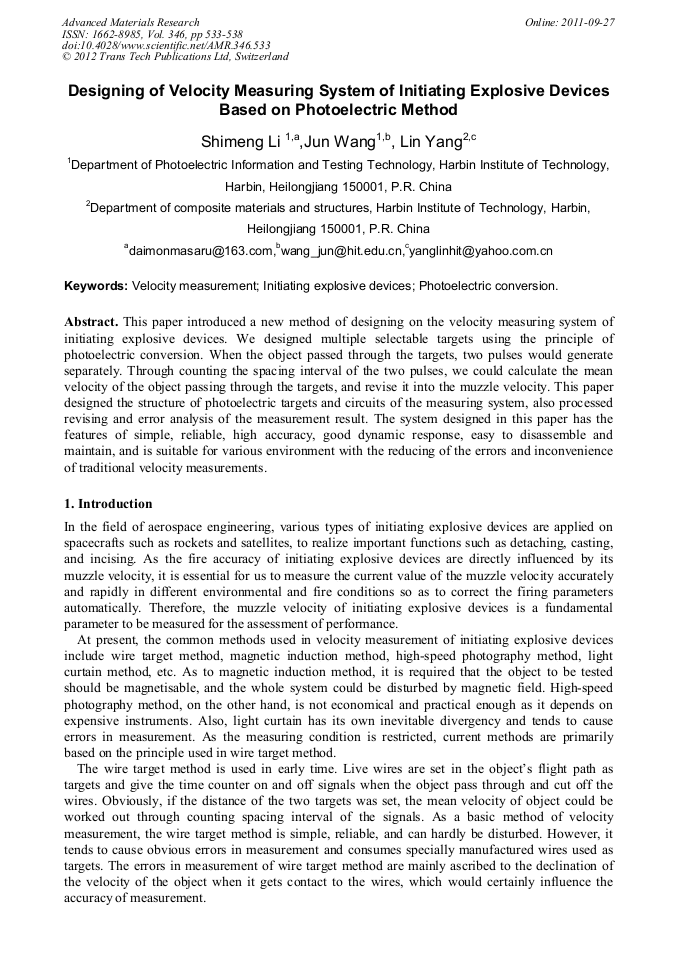

Designing of Velocity Measuring System of Initiating Explosive Devices Based on Photoelectric Method

Abstract:

This paper introduced a new method of designing on the velocity measuring system of initiating explosive devices. We designed multiple selectable targets using the principle of photoelectric conversion. When the object passed through the targets, two pulses would generate separately. Through counting the spacing interval of the two pulses, we could calculate the mean velocity of the object passing through the targets, and revise it into the muzzle velocity. This paper designed the structure of photoelectric targets and circuits of the measuring system, also processed revising and error analysis of the measurement result. The system designed in this paper has the features of simple, reliable, high accuracy, good dynamic response, easy to disassemble and maintain, and is suitable for various environment with the reducing of the errors and inconvenience of traditional velocity measurements.

• Periodical: Advanced Materials Research (Volume 346)
• Pages: 533-538
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.346.533
• Online since: September 2011
• Authors: Shi Meng Li, Jun Wang, Lin Yang
• Keywords: Initiating Explosive Devices, Photoelectric Conversion, Velocity Measurement

References

[1] Wenfeng Zhang, Bin Gao, and Zhiqin Lu, The Application of Photoelectric Method in Velocity Measurement of Explosives, Spacecraft Recovery &Remote Sensing, pp.58-59, (1998).

[2] Bo Tang, Xuanze Wang, and Hong Yan, Protable Bullet Velocity Measurement System Based on Laser Screen Target, J of China Three Gorges Univ. (Natural Sciences), vol. 26, No. 6, December 2004, pp.6-9.

[3] Fa Pu, Discussion of the Ballistic Coefficient and the Law of Air Resistance, Journal of Projectiles, Rockets, Missiles and Guidance, vol. 3, (1981).

[4] Sigler W, Mirada L, Calif, Passive Velocity Data System, USP5827958, October (1998).
