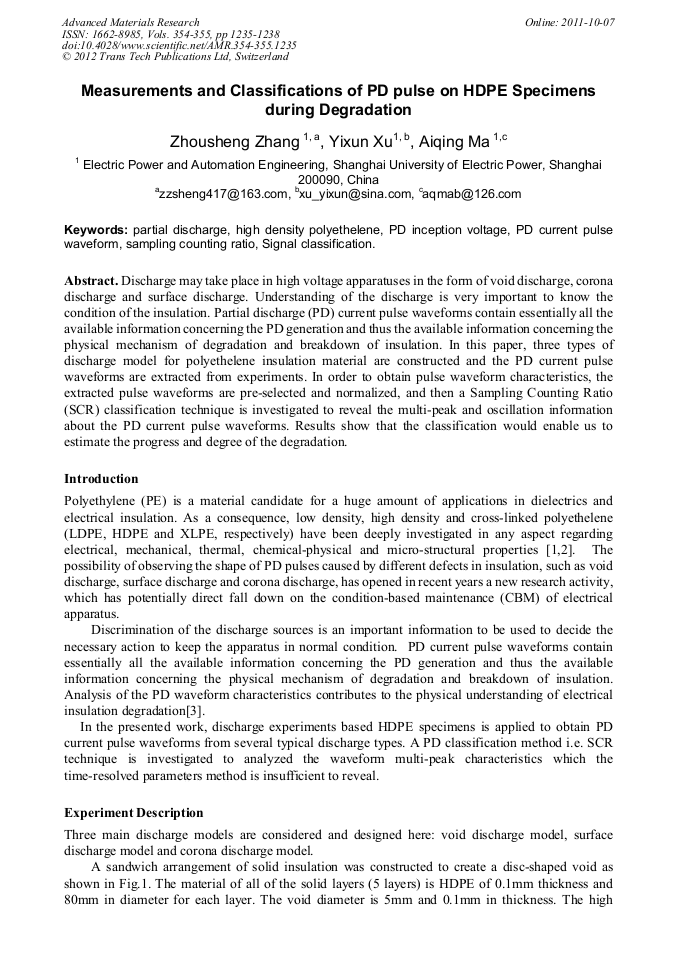

Measurements and Classifications of PD Pulse on HDPE Specimens during Degradation

Abstract:

Discharge may take place in high voltage apparatuses in the form of void discharge, corona discharge and surface discharge. Understanding of the discharge is very important to know the condition of the insulation. Partial discharge (PD) current pulse waveforms contain essentially all the available information concerning the PD generation and thus the available information concerning the physical mechanism of degradation and breakdown of insulation. In this paper, three types of discharge model for polyethelene insulation material are constructed and the PD current pulse waveforms are extracted from experiments. In order to obtain pulse waveform characteristics, the extracted pulse waveforms are pre-selected and normalized, and then a Sampling Counting Ratio (SCR) classification technique is investigated to reveal the multi-peak and oscillation information about the PD current pulse waveforms. Results show that the classification would enable us to estimate the progress and degree of the degradation.

• Periodical: Advanced Materials Research (Volumes 354-355)
• Pages: 1235-1238
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.354-355.1235
• Online since: October 2011
• Authors: Zhou Sheng Zhang, Yi Xun Xu, Ai Qing Ma
• Keywords: High Density Polyethelene, Partial Discharge (PD), PD Current Pulse Waveform, PD Inception Voltage, Sampling Counting Ratio, Signal Classification

References

[1] G.C. Montanari, G. Mazzanti, F. Palmieri and A. Motori: Investigation of Charge Transport and Trapping In LDPE and HDPE through Space Charge and Conduction Current Measurements. 2001 IEEE 7th International Conference on Solid Dielectrics, pp.240-244.

DOI: 10.1109/icsd.2001.955606

[2] D.K. Das Gupta, G.C. Montanari: Measurements of Space Charge on HDPE Specimens During Long-Time Depolarization. 2002 Annual report Conference on Electrical Insulation and Dielectric Phenomena, pp.279-282.

DOI: 10.1109/ceidp.2002.1048789

[3] H. Okubo, N. Hayakawa, A. Matsushita: The Relationship Between Partial Discharge Current Pulse Waveforms and Physical Mechanisms. IEEE Electrical Insulation Magazine, Vol. 18 (2002), No. 3, pp.38-45.

DOI: 10.1109/mei.2002.1014966

[4] C. S. Chang, K. H. Lee and C. Chang: Recognition of Partial Discharge Waveshape Patterns for Gas Insulated Switchgear. Australasian Universities Power Engineering Conference (2004), pp.1-5.

DOI: 10.1080/1448837x.2005.11464128
