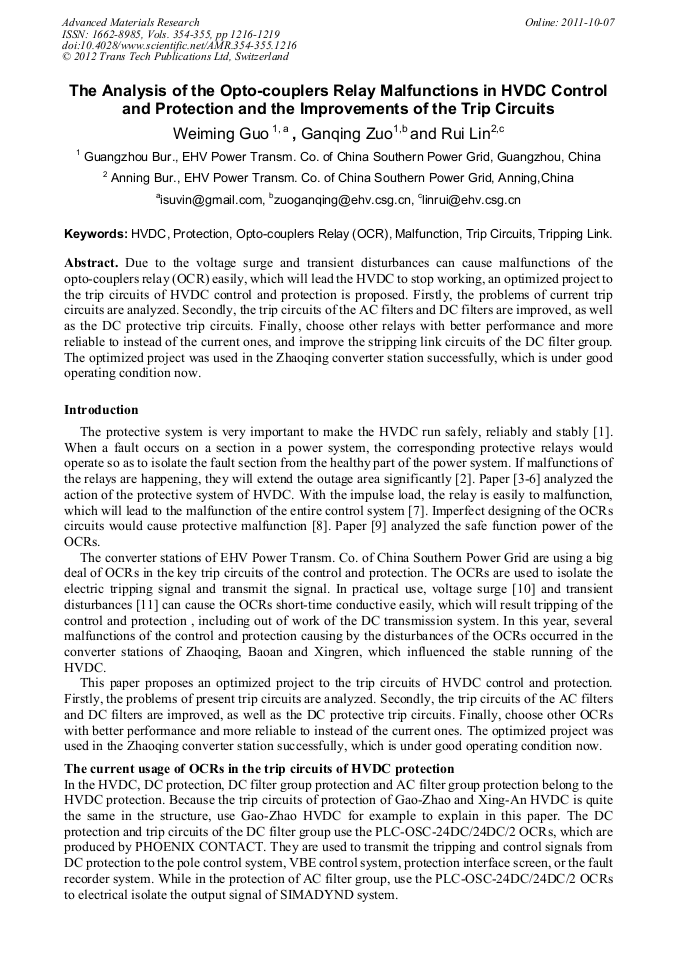

The Analysis of the Opto-Couplers Relay Malfunctions in HVDC Control and Protection and the Improvements of the Trip Circuits

Abstract:

Due to the voltage surge and transient disturbances can cause malfunctions of the opto-couplers relay (OCR) easily, which will lead the HVDC to stop working, an optimized project to the trip circuits of HVDC control and protection is proposed. Firstly, the problems of current trip circuits are analyzed. Secondly, the trip circuits of the AC filters and DC filters are improved, as well as the DC protective trip circuits. Finally, choose other relays with better performance and more reliable to instead of the current ones, and improve the stripping link circuits of the DC filter group. The optimized project was used in the Zhaoqing converter station successfully, which is under good operating condition now.

• Periodical: Advanced Materials Research (Volumes 354-355)
• Pages: 1216-1219
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.354-355.1216
• Online since: October 2011
• Authors: Wei Ming Guo, Gan Qing Zuo, Rui Lin
• Keywords: HVDC, Malfunction, Opto-Couplers Relay (OCR), Protection, Trip Circuits, Tripping Link

References

[1] Tian Jie. "Design and realization of HVDC control and protection system," Electric Power Automation Equipment, Vol.25, No.9, pp.10-14, 42, Sep.2005 (In Chinese)

[2] Wenxin Guo; Fushuan Wen; Ledwich, G.; Zhiwei Liao; Xiangzhen He; Junhui Liang. "An Analytic Model for Fault Diagnosis in Power Systems Considering Malfunctions of Protective Relays and Circuit Breakers," IEEE Trans. Power Electron., Vol.25, No.3, pp.1394-1401, (2010)

DOI: 10.1109/tpwrd.2010.2048344

[3] Zhou Xiangsheng, Lin Rui. "Analysis of Relay Protection Action for HVDC Line and Testing Method," High Voltage Engineering, Vol.32, No.9, pp.33-37,49, Sep. 2006 (In Chinese)

[4] Mei Nian, Li Yinhong, Liu Dengfeng, Duan Xianzhong, Fu Chuang, Rao Hong. "Study on the Operational Equation for Valve Short Circuit Protections in HVDC Projects," Proceedings of the CSEE, Vol.29, No.1, pp.40-47, Jan. 2009 (In Chinese)

[5] Li Aimin, Cai Zexiang, Ren Dayong, Li Xiaohua. "Analysis on the Dynamic Performance Characteristics of HVDC Control and Protections for the HVDC Line Faults," Vol.33, No.11, pp.72-75, 93, Jun. 2009 (In Chinese)

DOI: 10.1109/pes.2009.5275974

[6] Wang Gang, Luo Jianbin, Li Haifeng, Li Zhikeng. "Transient Energy Protection for ±800 kV UHVDC Transmission Lines," Automation of Electric Power Systems, Vol.34, No.1, pp.28-31, Jan. 2010 (In Chinese)

DOI: 10.1049/cp:20060057

[7] Ren Zengxun. "The Switching Off Response Analysis of the Relay Sustaining Impulse Load," Journal of Vibration and Shock, No.2, pp.38-51, 1985 (In Chinese)

[8] Gao Xu, Xu Guixian, Sun Jiwei, Niu Siqing, Wang Ning. "The Malfunction Analysis of a typical 500kV Failure Protection," Automation of Electric Power Systems, Vol.31, No.8, pp.104-106, Apr. 2007 (In Chinese)

[9] Meng Hengxin. "Research on Safety Action Power of Out-tripping Relay," Automation of Electric Power Systems, Vol.33, No.6, pp.104-107, Mar. 2009 (In Chinese)

[10] Ben Hongqi, Liu Zhaohe, Cai Hegao. "Origins Analysis of Surge on Switch-tube," Journal of Harbin Institute of Technology. Vol.31, No.3, pp.126-128,June 1999 (In Chinese)

[11] CHENG Lijun,LI Yiqun,JIAO Shaohua. "Influence of EFT on data acquisition system of numerical protection and its countermeasure," Electric Power Automation Equipment, Vol.24, No.1, pp.14-19, Jan. 2004 (In Chinese)

[12] Cai Min, Cheng Lijun. "Research on Transient Saturation of Opto-couplers for Electrical fast Transient/Burst," Automation of Electric Power Systems, Vol.28, No.8, pp.72-75, Apr. 2004 (In Chinese)
