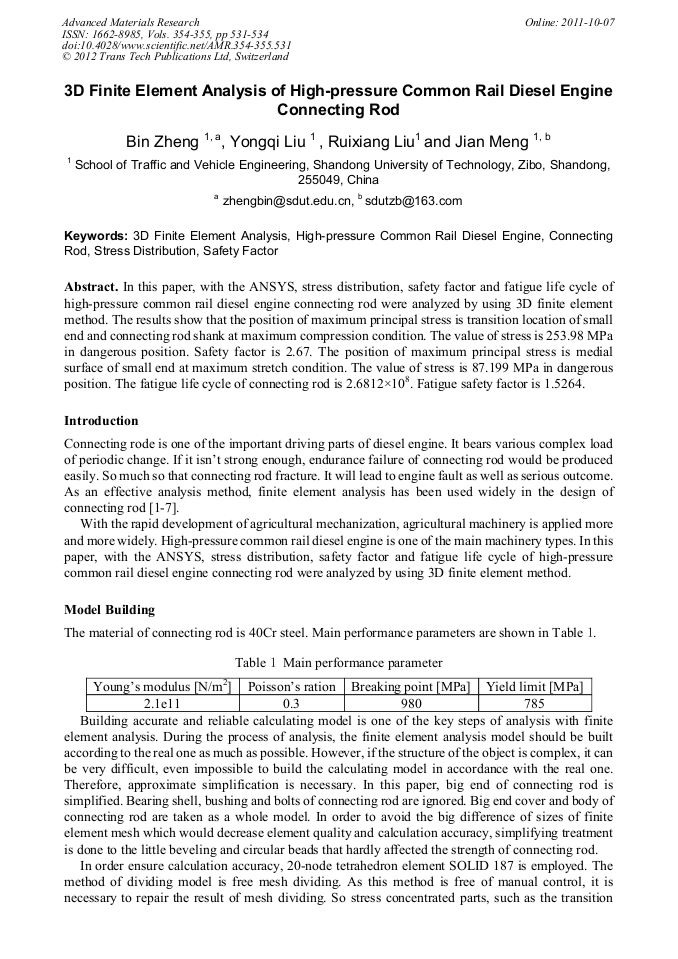

3D Finite Element Analysis of High-Pressure Common Rail Diesel Engine Connecting Rod

Abstract:

In this paper, with the ANSYS, stress distribution, safety factor and fatigue life cycle of high-pressure common rail diesel engine connecting rod were analyzed by using 3D finite element method. The results show that the position of maximum principal stress is transition location of small end and connecting rod shank at maximum compression condition. The value of stress is 253.98 MPa in dangerous position. Safety factor is 2.67. The position of maximum principal stress is medial surface of small end at maximum stretch condition. The value of stress is 87.199 MPa in dangerous position. The fatigue life cycle of connecting rod is 2.6812×108. Fatigue safety factor is 1.5264.

• Periodical: Advanced Materials Research (Volumes 354-355)
• Pages: 531-534
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.354-355.531
• Online since: October 2011
• Authors: Bin Zheng, Yong Qi Liu, Rui Xiang Liu, Jian Meng
• Keywords: 3D Finite Element Analysis, Connecting Rod, High-Pressure Common Rail Diesel Engine, Safety Factor, Stress Distribution

References

[1] J.C. Zhang, X.H. Li, and G. Sun: Tractor & Farm Transporter Vol. 33(2006), p.27. In Chinese

[2] Z.J. Tang, Z.X. Zuo, and R.H. Zhang: China Mechanical Engineering Vol. 15(2004), p.365. In Chinese

[3] W.F. Dai, W.X. Fan, and Z.J. Cheng: Small Internal Combustion Engine and Motorcycle Vol. 37(2008), p.48. In Chinese

[4] K. HO-LE: Computer Aided Design Vol. 20(1998), p.27.

[5] S.T. Xiong: Small Internal Combustion Engine and Motorcycle Vol. 30(2001), p.22. In Chinese

[6] D.H. Tu, S.L. Jiang, and M.L. Cao: Transactions of CSICE Vol. 22(2004), p.176. In Chinese

[7] H. Wu, F. Wang, and H.Y. Gan: Chinese Internal Combustion Engine Engineering Vol. 24(2003), p.31. In Chinese
