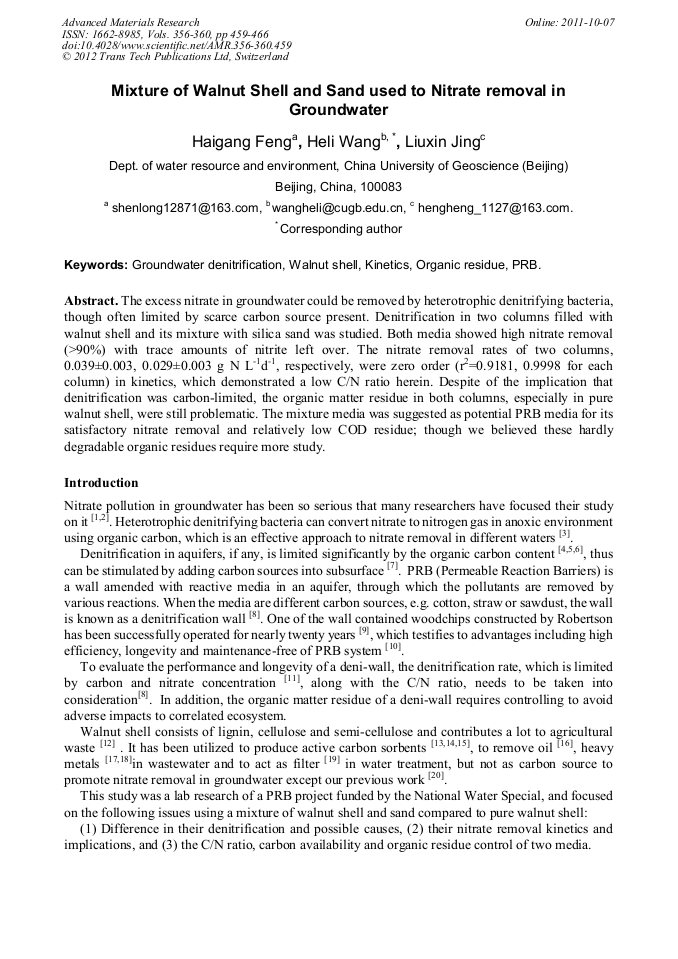

Mixture of Walnut Shell and Sand Used to Nitrate Removal in Groundwater

Abstract:

The excess nitrate in groundwater could be removed by heterotrophic denitrifying bacteria, though often limited by scarce carbon source present. Denitrification in two columns filled with walnut shell and its mixture with silica sand was studied. Both media showed high nitrate removal (>90%) with trace amounts of nitrite left over. The nitrate removal rates of two columns, 0.039±0.003, 0.029±0.003 g N L^-1d^-1, respectively, were zero order (r²=0.9181, 0.9998 for each column) in kinetics, which demonstrated a low C/N ratio herein. Despite of the implication that denitrification was carbon-limited, the organic matter residue in both columns, especially in pure walnut shell, were still problematic. The mixture media was suggested as potential PRB media for its satisfactory nitrate removal and relatively low COD residue; though we believed these hardly degradable organic residues require more study.

• Periodical: Advanced Materials Research (Volumes 356-360)
• Pages: 459-466
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.356-360.459
• Online since: October 2011
• Authors: Hai Gang Feng, He Li Wang, Liu Xin Jing
• Keywords: Groundwater Denitrification, Kinetic, Organic Residue, PRB, Walnut Shell

References

[1] Della Rocca C, Belgiorno V, Meric S (2007) Overview of in-situ applicable nitrate removal processes. Desalination 204: 46-62.

DOI: 10.1016/j.desal.2006.04.023

[2] Roy S, Speed C, Bennie J, Swift R, Wallace P (2007) Identifying the significant factors that influence temporal and spatial trends in nitrate concentrations in the Dorset and Hampshire Basin Chalk aquifer of Southern England. Quarterly Journal of Engineering Geology and Hydrogeology 40: 377-392.

DOI: 10.1144/1470-9236/07-025

[3] Soares MIM (2000) Biological denitrification of groundwater. Water Air and Soil Pollution 123: 183-193.

[4] Smith RL, Duff JH (1988) Denitrification in a Sand and Gravel Aquifer. Appl Environ Microbiol 54: 1071-1078.

DOI: 10.1128/aem.54.5.1071-1078.1988

[5] Starr RC, Gillham RW (1993) DENITRIFICATION AND ORGANIC-CARBON AVAILABILITY IN 2 AQUIFERS. Ground Water 31: 934-947.

DOI: 10.1111/j.1745-6584.1993.tb00867.x

[6] Devito KJ, Fitzgerald D, Hill AR, Aravena R (2000) Nitrate dynamics in relation to lithology and hydrologic flow path in a river riparian zone. Journal of Environmental Quality 29: 1075-1084.

DOI: 10.2134/jeq2000.00472425002900040007x

[7] Rivett MO, Smith JWN, Buss SR, Morgan P (2007) Nitrate occurrence and attenuation in the major aquifers of England and Wales. Quarterly Journal of Engineering Geology and Hydrogeology 40: 335-352.

DOI: 10.1144/1470-9236/07-032

[8] Schipper LA, Robertson WD, Gold AJ, Jaynes DB, Cameron SC (2010) Denitrifying bioreactors-An approach for reducing nitrate loads to receiving waters. Ecological Engineering 36: 1532-1543.

DOI: 10.1016/j.ecoleng.2010.04.008

[9] Robertson WD (2010) Nitrate removal rates in woodchip media of varying age. Ecological Engineering 36: 1581-1587.

DOI: 10.1016/j.ecoleng.2010.01.008

[10] Hunter WJ (2001) Use of vegetable oil in a pilot-scale denitrifying barrier. Journal of Contaminant Hydrology 53: 119-131.

DOI: 10.1016/s0169-7722(01)00137-1

[11] Korom SF (1992) NATURAL DENITRIFICATION IN THE SATURATED ZONE - A REVIEW. WATER RESOURCES RESEARCH 28: 1657-1668.

DOI: 10.1029/92wr00252

[12] Acikalin K (2011) Thermogravimetric analysis of walnut shell as pyrolysis feedstock. Journal of Thermal Analysis and Calorimetry 105: 145-150.

DOI: 10.1007/s10973-010-1267-x

[13] Heschel W, Klose E (1995) ON THE SUITABILITY OF AGRICULTURAL BY-PRODUCTS FOR THE MANUFACTURE OF GRANULAR ACTIVATED CARBON. Fuel 74: 1786-1791.

DOI: 10.1016/0016-2361(95)80009-7

[14] Kim JW, Sohn MH, Kim DS, Sohn SM, Kwon YS (2001) Production of granular activated carbon from waste walnut shell and its adsorption characteristics for Cu2+ ion. Journal of Hazardous Materials 85: 301-315.

DOI: 10.1016/s0304-3894(01)00239-4

[15] Nowicki P, Pietrzak R, Wachowska H (2010) Sorption properties of active carbons obtained from walnut shells by chemical and physical activation. Catalysis Today 150: 107-114.

DOI: 10.1016/j.cattod.2009.11.009

[16] Srinivasan A, Viraraghavan T (2008) Removal of oil by walnut shell media. Bioresource Technology 99: 8217-8220.

DOI: 10.1016/j.biortech.2008.03.072

[17] Orhan Y, Buyukgungor H (1993) THE REMOVAL OF HEAVY-METALS BY USING AGRICULTURAL WASTES. Water Science and Technology 28: 247-255.

DOI: 10.2166/wst.1993.0114

[18] Pehlivan E, Altun T (2008) Biosorption of chromium(VI) ion from aqueous solutions using walnut, hazelnut and almond shell. Journal of Hazardous Materials 155: 378-384.

DOI: 10.1016/j.jhazmat.2007.11.071

[19] Ahmedna M, Marshall WE, Husseiny AA, Rao RM, Goktepe I (2004) The use of nutshell carbons in drinking water filters for removal of trace metals. Water Research 38: 1062-1068.

DOI: 10.1016/j.watres.2003.10.047

[20] Jing LX, Wang HL, Jiang TL, Li D, Feng HG, et al. Denitrification of Groundwater Using Walnut Shell as Solid Carbon Source; 2010; Irvin. Sci Res Publ, Inc-Srp. pp.1059-1063.

[21] Seifert D, Engesgaard P (2007) Use of tracer tests to investigate changes in flow and transport properties due to bioclogging of porous media. Journal of Contaminant Hydrology 93: 58-71.

DOI: 10.1016/j.jconhyd.2007.01.014

[22] Barkle GF, Schipper LA, Burgess CP, Painter BDM (2008) In situ mixing of organic matter decreases hydraulic conductivity of denitrification walls in sand aquifers. Ground Water Monitoring and Remediation 28: 57-64.

DOI: 10.1111/j.1745-6592.2007.00185.x

[23] Volokita M, Abeliovich A, Soares MIM (1996) Denitrification of groundwater using cotton as energy source. Water Science and Technology 34: 379-385.

DOI: 10.2166/wst.1996.0394

[24] Volokita M, Belkin S, Abeliovich A, Soares MIM (1996) Biological denitrification of drinking water using newspaper. Water Research 30: 965-971.

DOI: 10.1016/0043-1354(95)00242-1

[25] Ines M, Soares M, Abeliovich A (1998) Wheat straw as substrate for water denitrification. Water Research 32: 3790-3794.

DOI: 10.1016/s0043-1354(98)00136-5

[26] Soares MIM, Braester C, Belkin S, Abeliovich A (1991) DENITRIFICATION IN LABORATORY SAND COLUMNS - CARBON REGIME, GAS ACCUMULATION AND HYDRAULIC-PROPERTIES. Water Research 25: 325-332.

DOI: 10.1016/0043-1354(91)90013-g

[27] Gibert O, Pomierny S, Rowe I, Kalin RM (2008) Selection of organic substrates as potential reactive materials for use in a denitrification permeable reactive barrier (PRB). Bioresource Technology 99: 7587-7596.

DOI: 10.1016/j.biortech.2008.02.012

[28] Barton L, McLay CDA, Schipper LA, Smith CT (1999) Annual denitrification rates in agricultural and forest soils: a review. Australian Journal of Soil Research 37: 1073-1093.

DOI: 10.1071/sr99009

[29] Schipper LA, Barkle GF, Vojvodic-Vukovic M (2005) Maximum rates of nitrate removal in a denitrification wall. Journal of Environmental Quality 34: 1270-1276.

DOI: 10.2134/jeq2005.0008

[30] Schipper LA, Vojvodic-Vukovic M (2000) Nitrate removal from groundwater and denitrification rates in a porous treatment wall amended with sawdust. Ecological Engineering 14: 269-278.

DOI: 10.1016/s0925-8574(99)00002-6

[31] Schipper LA, Vojvodic-Vukovic M (2001) Five years of nitrate removal, denitrification and carbon dynamics in a denitrification wall. Water Research 35: 3473-3477.

DOI: 10.1016/s0043-1354(01)00052-5

[32] Morris JT, Whiting GJ, Chapelle FH (1988) Potential denitrification rates in deep sediments from the southeastern coastal plain. Environmental Science & Technology 22: 832-836.

DOI: 10.1021/es00172a014

[33] Bekins BA, Warren E, Godsy EM (1998) A Comparison of Zero-Order, First-Order, and Monod Biotransformation Models. Ground Water 36: 261-268.

DOI: 10.1111/j.1745-6584.1998.tb01091.x

[34] Monod J (1949) The Growth of Bacterial Cultures. Annual Review of Microbiology 3: 371-394.

[35] Chiu YC, Chung MS (2003) Determination of optimal COD/nitrate ratio for biological denitrification. International Biodeterioration & Biodegradation 51: 43-49.

DOI: 10.1016/s0964-8305(02)00074-4

[36] Robertson WD, Vogan JL, Lombardo PS (2008) Nitrate removal rates in a 15-year-old permeable reactive barrier treating septic system nitrate. Ground Water Monitoring and Remediation 28: 65-72.

DOI: 10.1111/j.1745-6592.2008.00205.x

[37] DeSimone LA, Howes BL (1998) Nitrogen transport and transformations in a shallow aquifer receiving wastewater discharge: A mass balance approach. WATER RESOURCES RESEARCH 34: 271-285.

DOI: 10.1029/97wr03040

[38] Bugg TDH, Ahmad M, Hardiman EM, Singh R (2011) The emerging role for bacteria in lignin degradation and bio-product formation. Current Opinion in Biotechnology 22: 394-400.

DOI: 10.1016/j.copbio.2010.10.009

[39] de Boer W, Folman LB, Summerbell RC, Boddy L (2005) Living in a fungal world: impact of fungi on soil bacterial niche development. Fems Microbiology Reviews 29: 795-811.

DOI: 10.1016/j.femsre.2004.11.005

[40] Harwood CS, Parales RE (1996) The beta-ketoadipate pathway and the biology of self-identity. Annual Review of Microbiology 50: 553-590.

DOI: 10.1146/annurev.micro.50.1.553

[41] Morii H, Nakamiya K, Kinoshita S (1995) ISOLATION OF A LIGNIN-DECOLORIZING BACTERIUM. Journal of Fermentation and Bioengineering 80: 296-299.

DOI: 10.1016/0922-338x(95)90835-n

[42] Hill AR, Cardaci M (2004) Denitrification and organic carbon availability in riparian wetland soils and subsurface sediments. Soil Science Society of America Journal 68: 320-325.

DOI: 10.2136/sssaj2004.0320

[43] Frazier SW, Kaplan LA, Hatcher PG (2005) Molecular characterization of biodegradable dissolved organic matter using bioreactors and C-12/C-13 tetramethylammonium hydroxide thermochemolysis GC-MS. Environmental Science & Technology 39: 1479-1491.

DOI: 10.1021/es0494959
