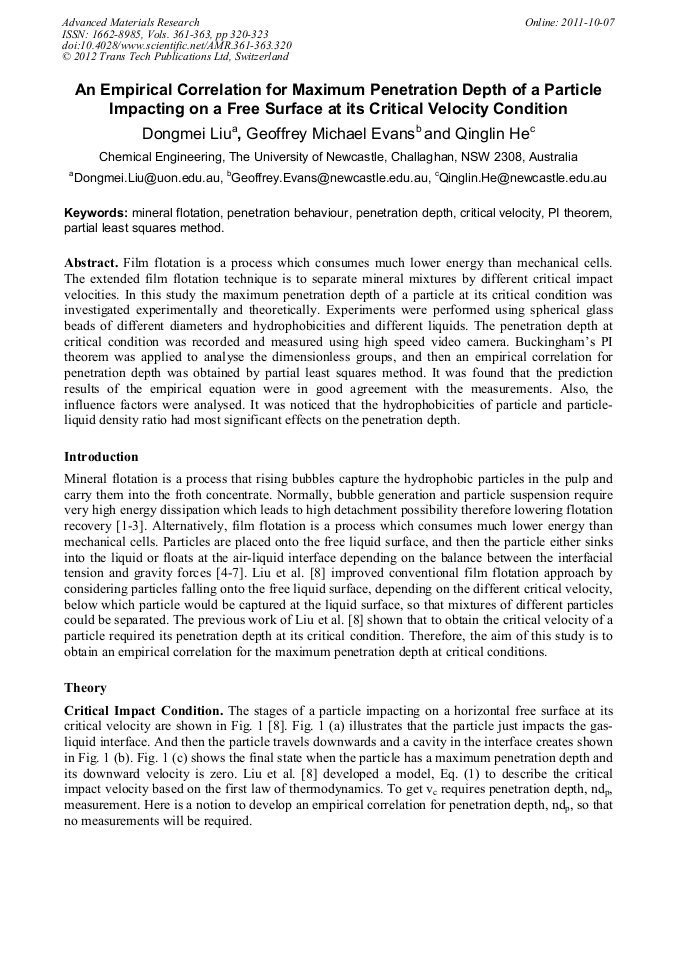

An Empirical Correlation for Maximum Penetration Depth of a Particle Impacting on a Free Surface at its Critical Velocity Condition

Abstract:

Film flotation is a process which consumes much lower energy than mechanical cells. The extended film flotation technique is to separate mineral mixtures by different critical impact velocities. In this study the maximum penetration depth of a particle at its critical condition was investigated experimentally and theoretically. Experiments were performed using spherical glass beads of different diameters and hydrophobicities and different liquids. The penetration depth at critical condition was recorded and measured using high speed video camera. Buckingham’s PI theorem was applied to analyse the dimensionless groups, and then an empirical correlation for penetration depth was obtained by partial least squares method. It was found that the prediction results of the empirical equation were in good agreement with the measurements. Also, the influence factors were analysed. It was noticed that the hydrophobicities of particle and particle-liquid density ratio had most significant effects on the penetration depth.

• Periodical: Advanced Materials Research (Volumes 361-363)
• Pages: 320-323
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.361-363.320
• Online since: October 2011
• Authors: Dong Mei Liu, Geoffrey Michael Evans, Qing Lin He
• Keywords: Critical Velocity, Mineral Flotation, Partial Least Squares Method, Penetration Behaviour, Penetration Depth, PI Theorem

References

[1] B. Shahbazi, B. Rezai, S.M.J. Koleini, The effect of hydrodynamic parameters on probability of bubble-particle collision and attachment, Minerals Engineering, Vol. 22 (1) (2009), pp.57-63.

DOI: 10.1016/j.mineng.2008.03.013

[2] H.C.R. Schimann, Force and energy measurement of bubble-particle detachment, Virginia Polytechnic Institute and State University, Blacksburg, Virginia (2004).

[3] D. Tao, Role of bubble size in flotation of coarse and fine particles-a review, Separation Science and Technology, Vol. 39 (4) (2004), pp.741-760.

DOI: 10.1081/ss-120028444

[4] W.A. Zisman, Relation of the equilibrium contact angle to liquid and solid constitution', Advances In Chemistry, Vol. 43 (1964), pp.1-51.

DOI: 10.1021/ba-1964-0043.ch001

[5] D.W. Fuerstenau, M.C. Williams, Characterization of the lyophobicity of particles by film flotation, Colloids and Surfaces, Vol. 22 (1987), pp.87-91.

DOI: 10.1016/0166-6622(87)80008-2

[6] D.W. Fuerstenau, J. Diao, M.C. Williams, Characterization of the wettability of solid particles by film flotation 1. Experimental investigation, Colloids and Surfaces, Vol. 60 (1991), pp.127-144.

DOI: 10.1016/0166-6622(91)80273-q

[7] D.N.H. Tran, C.P. Whitby, D. Fornasiero, J. Ralston, Selective separation of very fine particles at a planar air–water interface, International Journal of Mineral Processing, Vol. 94 (1-2) (2010), pp.35-42.

DOI: 10.1016/j.minpro.2009.11.007

[8] D. Liu, Q. He, G.M. Evans, Penetration behaviour of individual hydrophilic particle at a gas-liquid interface, Advanced Powder Technology, Vol. 21 (4) (2010), pp.401-411.

DOI: 10.1016/j.apt.2010.04.004

[9] L. Brand, The Pi theorem of dimensional analysis, Archive for Rational Mechanics and Analysis, Vol. 1(1) (1957), pp.35-45.

DOI: 10.1007/bf00297994

[10] D. Liu, Z. Zou and A. Yu, Prediction Model of End-Point Phosphorus Content in BOF Process. China Metallurgy, Vol. 17 (1) (2007), pp.34-37.
