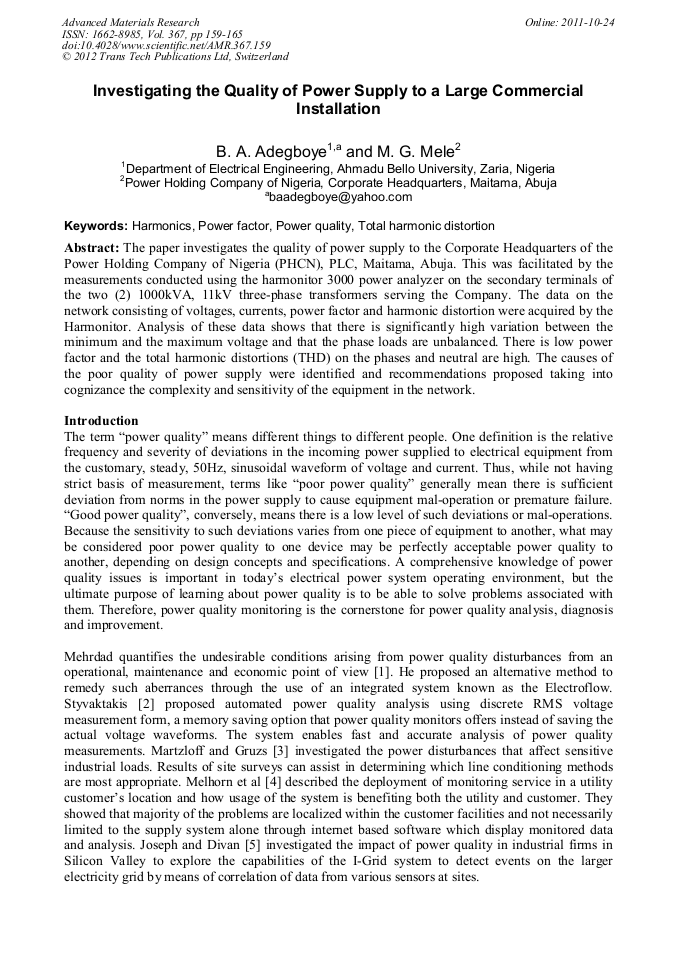

Investigating the Quality of Power Supply to a Large Commercial Installation

Abstract:

The paper investigates the quality of power supply to the Corporate Headquarters of the Power Holding Company of Nigeria (PHCN), PLC, Maitama, Abuja. This was facilitated by the measurements conducted using the harmonitor 3000 power analyzer on the secondary terminals of the two (2) 1000kVA, 11kV three-phase transformers serving the Company. The data on the network consisting of voltages, currents, power factor and harmonic distortion were acquired by the Harmonitor. Analysis of these data shows that there is significantly high variation between the minimum and the maximum voltage and that the phase loads are unbalanced. There is low power factor and the total harmonic distortions (THD) on the phases and neutral are high. The causes of the poor quality of power supply were identified and recommendations proposed taking into cognizance the complexity and sensitivity of the equipment in the network.

• Periodical: Advanced Materials Research (Volume 367)
• Pages: 159-165
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.367.159
• Online since: October 2011
• Authors: B.A. Adegboye, M.G. Mele
• Keywords: Harmonics, Power Factor, Power Quality (PQ), Total Harmonic Distortion (THD)

References

[1] M. Mehrdad, A Unique Solution to Energy Savings through Power Quality – An Introduction to Electroflow, Paper Presented at Power Engineering Workshop held at University of Columbia, Missouri, April (2001).

[2] E. Styvaktakis, Automating Power Quality Analysis, Doctoral Thesis, Chalmers University of Technology, Department of Signal and Systems, Department of Electric Power Engineering Technical Report, No. 423 (2002).

[3] F. Martzoff and T. Gruzs, Monitoring Power Quality, IEEE Transactions on Industry Applications, 1A-2A, No. 6, (1998), pp.1005-1018, November/December.

[4] C. Melhon, S. Sandy, S. Frank and M. Peter, Utilization of Web-Based Power Quality Monitoring to Assess Customer Power System Performance, IEEE Transactions on Industry Applications, 3, No. 6, 1 (2004), pp.1363-70, November/December.

[5] E. Joseph and D. Divan, Pilot Evaluation of Electricity-Reliability and Power Quality Monitoring in California's Silicon Valley with the I-Grid System, Power Engineering Journal, 15, Issue 2, (2004), pp.81-85, April.

DOI: 10.2172/826104

[6] D. Divan, A New Web-Based Monitoring System, IEE Proceedings of 8th International Conference on Harmonics and Quality of Power, 1 (2003), pp.244-248.

[7] Y. Liu, S. Srivastava and D. Cartes, A Novel Architecture for Power Quality Monitoring Based on Multi Agent Systems Theory, IEEE Transactions on Instrumentation and Measurement, 49, No. 3, (2003), pp.579-584, June.

[8] M. Zhang, Z. Jiyan and S. Hui, An Optimized Shunt Hybrid Power Quality Conditioner for Harmonic and Reactive Power Compensation in Distribution Networks, IEEE Power Conference, 2 (2004), pp.1111-1116, November.

DOI: 10.1109/icpst.2004.1460167
