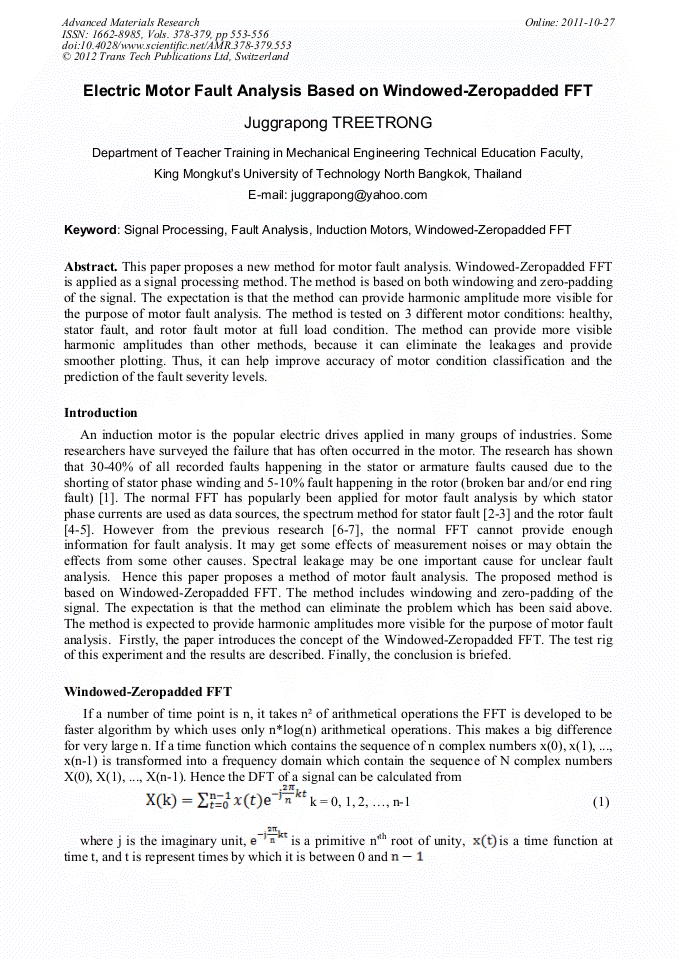

Electric Motor Fault Analysis Based on Windowed-Zeropadded FFT

Abstract:

This paper proposes a new method for motor fault analysis. Windowed-Zeropadded FFT is applied as a signal processing method. The method is based on both windowing and zero-padding of the signal. The expectation is that the method can provide harmonic amplitude more visible for the purpose of motor fault analysis. The method is tested on 3 different motor conditions: healthy, stator fault, and rotor fault motor at full load condition. The method can provide more visible harmonic amplitudes than other methods, because it can eliminate the leakages and provide smoother plotting. Thus, it can help improve accuracy of motor condition classification and the prediction of the fault severity levels.

• Periodical: Advanced Materials Research (Volumes 378-379)
• Pages: 553-556
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.378-379.553
• Online since: October 2011
• Authors: Juggrapong Treetrong
• Keywords: Fault Analysis, Induction Motor (IM), Signal Processing, Windowed-Zeropadded FFT

References

[1] Nandi, S., Toliyat, H.A., Li, X., Condition Monitoring and Fault Diagnosis of Electrical Motors—A Review, Energy Conversion, IEEE Transactions 20(4), 2005, p.719 – 729.

DOI: 10.1109/tec.2005.847955

[2] Miranda R.S.; Toliyat H.A.; Jacobina C.B.; Lima, A.M.N.; Short-Circuit Fault Mitigation in Six-Phase Induction Machine Drives, IEEE Vehicle Power and Propulsion Conference 2007 (VPPC 2007), 9-12 Sept. 2007, p.370 – 376.

DOI: 10.1109/vppc.2007.4544154

[3] Marques Cardoso A.J.; Cruz S.M.A.; Fonseca D.S.B.; Inter-turn stator winding fault diagnosis in three-phase induction motors, by Park's vector approach, IEEE Transaction on Energy Conversion, V. 14-3,  Sept. 1999, pp.595-598.

DOI: 10.1109/60.790920

[4] Henao H.; Razik H.; Capolino, G. -A.; Analytical approach of the stator current frequency harmonics computation for detection of induction machine rotor faults, IEEE Transactions on Industry Applications, V. 41-3,  May-June 2005, p.801 – 807.

DOI: 10.1109/tia.2005.847320

[5] Yazidi A.; Henao H.; Capolino G. -A.; Broken rotor bars fault detection in squirrel cage induction machines, 2005 IEEE International Conference on Electric Machines and Drives, 15-18 May 2005, p.741 – 747.

DOI: 10.1109/iemdc.2005.195805

[6] J. Treetrong , J.K. Sinha, F. Gu, and A. Ball; Bispectrum of stator phase current for fault detection of induction motors, Elsevier on ISA Transactions (2009), V. 48 (3), July 2009, pp.378-382.

DOI: 10.1016/j.isatra.2009.03.002

[7] J. Treetrong, " The Use of Higher-Order Spectrum for Fault Quantification of Industrial Electric Motors, Intelligent Control and Computer Engineering (Lecture Notes in Electrical Engineering), Springer, 2010, pp.59-68.

DOI: 10.1007/978-94-007-0286-8_6
