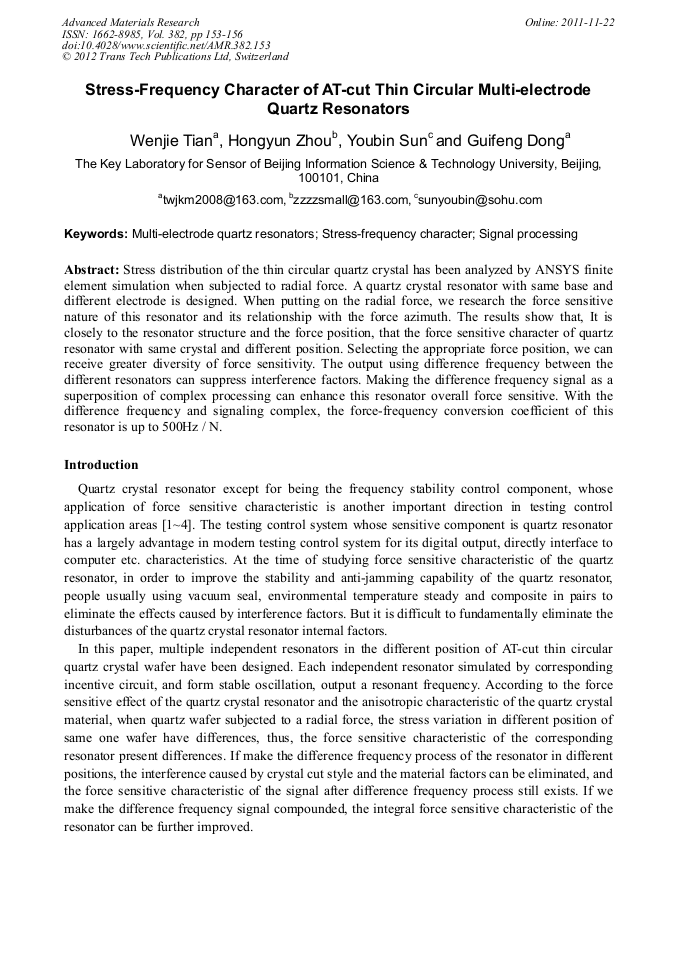

Stress-Frequency Character of AT-Cut Thin Circular Multi-Electrode Quartz Resonators

Abstract:

Stress distribution of the thin circular quartz crystal has been analyzed by ANSYS finite element simulation when subjected to radial force. A quartz crystal resonator with same base and different electrode is designed. When putting on the radial force, we research the force sensitive nature of this resonator and its relationship with the force azimuth. The results show that, It is closely to the resonator structure and the force position, that the force sensitive character of quartz resonator with same crystal and different position. Selecting the appropriate force position, we can receive greater diversity of force sensitivity. The output using difference frequency between the different resonators can suppress interference factors. Making the difference frequency signal as a superposition of complex processing can enhance this resonator overall force sensitive. With the difference frequency and signaling complex, the force-frequency conversion coefficient of this resonator is up to 500Hz / N.

• Periodical: Advanced Materials Research (Volume 382)
• Pages: 153-156
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.382.153
• Online since: November 2011
• Authors: Wen Jie Tian, Hong Yun Zhou, You Bin Sun, Gui Feng Dong
• Keywords: Multi-Electrode Quartz Resonators, Signal Processing, Stress-Frequency Character

References

[1] Zheyao Wang, Huizhong Zhu, Yonggui Dong, Jinsong Wang, etal. Force-Frequency Coefficient of Symmetrical Incomplete Circular Quartz Crystal Resonator. IEEE Transactions on Ultrasonics, Ferroelectrics, and Frequency Control , 2001, 48, pp.1471-1479.

DOI: 10.1109/58.949758

[2] Wang Zheyao. Effect of transverse force on the performance of quartz resonator force sensors . IEEE Transactions on Ultrasonics, Ferroelectrics and Frequency Control, VOL. 51, NO. 4, APRIL 2004. pp.470-476.

DOI: 10.1109/tuffc.2004.1295433

[3] CHEN Min, Temperature compensation and application of quartz pressure gauge, Journal of Transducer Technology, 2003, vol. 22, no. 11, pp.63-65.

[4] Feng guanping, Wang xiaohong, Wang jinsong. Review of Stress-Frequency Effect of Quartz Crystal Resonators and Its Applications . Journal of Tsinghua University (Sci & Tech), 1998, vol. 38, no. 8, pp.35-38.

[5] Tian Wenjie, Lu Junling, Liu Lingling, Zhang Fuxue. The Characteristics and Applications of a Shear-Vibrating Quartz Crystal Resonator. Piezoelectrics & Acoustooptics, 2006, vol. 28, no. 2, p.: 150- 152.

[6] B.B. Маnоb, Piezoelectric Resonance Sensors . (Shanchen Weng). Beijing: national defense industrial publishing company, (1984).
