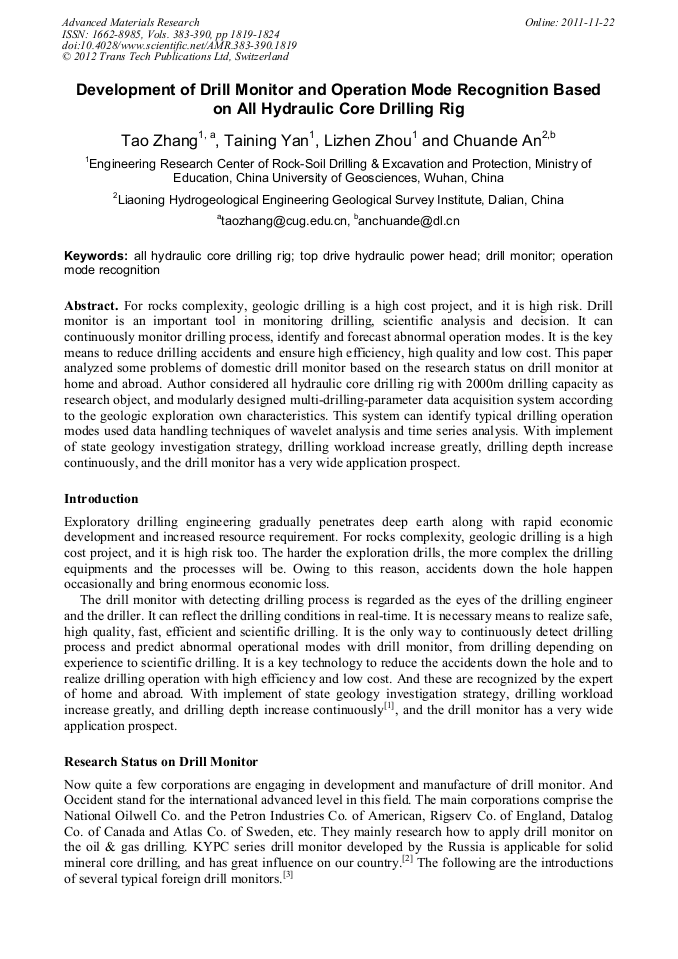

Development of Drill Monitor and Operation Mode Recognition Based on All Hydraulic Core Drilling Rig

Abstract:

For rocks complexity, geologic drilling is a high cost project, and it is high risk. Drill monitor is an important tool in monitoring drilling, scientific analysis and decision. It can continuously monitor drilling process, identify and forecast abnormal operation modes. It is the key means to reduce drilling accidents and ensure high efficiency, high quality and low cost. This paper analyzed some problems of domestic drill monitor based on the research status on drill monitor at home and abroad. Author considered all hydraulic core drilling rig with 2000m drilling capacity as research object, and modularly designed multi-drilling-parameter data acquisition system according to the geologic exploration own characteristics. This system can identify typical drilling operation modes used data handling techniques of wavelet analysis and time series analysis. With implement of state geology investigation strategy, drilling workload increase greatly, drilling depth increase continuously, and the drill monitor has a very wide application prospect.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 1819-1824
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.1819
• Online since: November 2011
• Authors: Tao Zhang, Tai Ning Yan, Li Zhen Zhou, Chuan De An
• Keywords: All Hydraulic Core Drilling Rig, Drill Monitor, Operation Mode Recognition, Top Drive Hydraulic Power Head

References

[1] Da WANG, Key Techn iques of Deep Hole Dr illing, Exploration Engneering(Rock & Soil Drilling and Tunneling) , 2009, (S1), pp.1-4.

[2] Project team inner data of the National 863 Program key techniques and equipments of 2000m core drilling.

[3] External Websites of the corporation working on drill monitor, www. nov. com, www. petronworld . com, etc.

[4] Internal Websites of the corporation working on drill monitor, www. shenkai. com, www. cgif. com. cn, etc.

[5] Fengchun Zhang, Application of Drilling Parameter monitor(ZCY-1) in Coalfield drilling, Coal Geology & Exploration, Vol. 27, 1999, pp.76-78.

[6] Taining Yan, Yule Hu, Tao zhang, inspection technology and drilling instrument, 1st ed., Wuhan: China University of Geosciences Press, Jan. (2009).

[7] Chunjie Yang, Shuguang Wang, Hongbo Kang, CAN BUS Technology, Beijing: Beijin University of Aeronautic & Astronautics Press, Feb. (2010).

[8] Jun Fang; Taining Yan; Chunhua Lu, Parameter Detection Principle of CUG-2 Drilling Parameter Monitor and Lectotype Installation of the Senor, Exploration Engineering(Rock & Soil Drilling and Tunneling), 2010, (4), pp.1-5.

[9] Qifu Wang, 2007. The Research & Application of Drilling Monitoring and Controlling Hardware System, Master Paper of China University of Geosciences.

[10] Jiao Yang, 2006. Development of a Monitor for Driller Parameters, Master Paper of Jilin University.

[11] Jie Zhang, 2009. Recognition Technology of Typical Working Condition in Drilling Hole Research and Its Implementation in High-Precision Drilling Monitor, Master Paper of China University of Geosciences(Wuhan).
