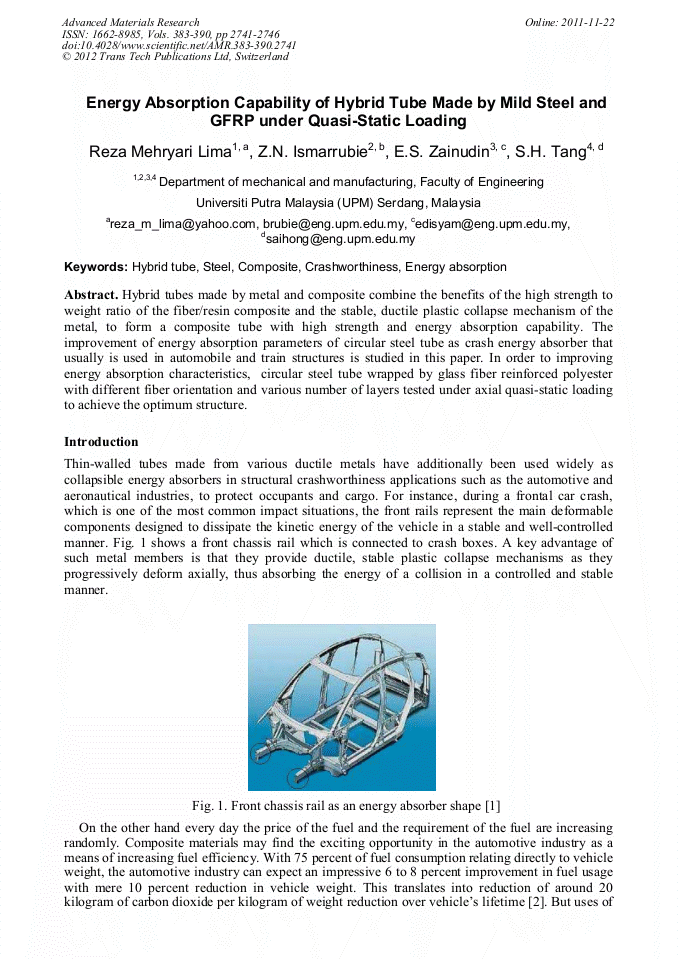

Energy Absorption Capability of Hybrid Tube Made by Mild Steel and GFRP under Quasi-Static Loading

Abstract:

Hybrid tubes made by metal and composite combine the benefits of the high strength to weight ratio of the fiber/resin composite and the stable, ductile plastic collapse mechanism of the metal, to form a composite tube with high strength and energy absorption capability. The improvement of energy absorption parameters of circular steel tube as crash energy absorber that usually is used in automobile and train structures is studied in this paper. In order to improving energy absorption characteristics, circular steel tube wrapped by glass fiber reinforced polyester with different fiber orientation and various number of layers tested under axial quasi-static loading to achieve the optimum structure.

You might also be interested in these eBooks

Manufacturing Science and Technology, ICMST2011

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 383-390)

Pages:

2741-2746

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.383-390.2741

Citation:

Cite this paper

Online since:

November 2011

Authors:

Reza Mehryari Lima, Z.N. Ismarrubie, E.S. Zainudin, S.H. Tang

Keywords:

Composite, Crashworthiness, Energy Absorption, Hybrid Tube, Steel

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] G. Nagel, Impact and energy absorption of straight and tapered rectangular tubes, PhD thesis, School of civil Engineering, Queensland University of Technology, February (2005).

Google Scholar

[2] J.N. Kanianthra, G.C. Rains, and T.J. Trella, Strategies for passenger car design to improve occupant protection in real world side crashes, International Congress & Exposition , Detroit, MI, USA, March (1994).

DOI: 10.4271/930482

Google Scholar

[3] A.G. Mamalies, D.E. Manolakos, G.A. Demosthenous, and W. Johnson, Axial Plastic collapse of thin bi-material tubes as energy dissipating system,. Int. J. Impact Eng., vol. 11, pp.185-196, (1991).

DOI: 10.1016/0734-743x(91)90005-z

Google Scholar

[4] H.W. Song, Z.M. Wan, Z.M. Xie, and X.W. Du, Axial impact behavior and energy absorption efficiency of composite wrapped metal tubes, Int. J. Impact Eng., vol. 24, pp.385-401, April (2000).

DOI: 10.1016/s0734-743x(99)00165-7

Google Scholar

[5] J. Bouchet, E. Jacquelin, and P. Hamelin, Static and dynamic behavior of combined composite aluminium tube for automotive applications, Composites Science and Technology, vol. 60, pp.1891-1900, August (2000).

DOI: 10.1016/s0266-3538(00)00058-0

Google Scholar

[6] K.C. Shin, J.J. Lee, K.H. Kim, M.C. Song, and J.S. Huh, Axial crush and bending collapse of an aluminum/GFRP hybrid square tube and its energy absorption capability, Composite Structures, vol. 57, p.279–287, July (2002).

DOI: 10.1016/s0263-8223(02)00094-6

Google Scholar

[7] J.M. Babbage, and P.K. Mallick, Static axial crush performance of unfilled and foam-filled aluminum–composite hybrid tubes, Composite Structures, vol. 70, p.177–184, September (2005).

DOI: 10.1016/j.compstruct.2004.08.021

Google Scholar

[8] M.R. Bambach, and M. Elchalakani, Plastic mechanism analysis of steel SHS strengthened with CFRP under large axial deformation, Thin-Walled Structures, vol. 45, p.159–170, February (2007).

DOI: 10.1016/j.tws.2007.02.004

Google Scholar

[9] M.R. Bambach, M. Elchalakani, and X.L. Zhao, Composite steel–CFRP SHS tubes under axial impact, Composite Structures, vol. 87, p.282–292, February (2008).

DOI: 10.1016/j.compstruct.2008.02.008

Google Scholar
