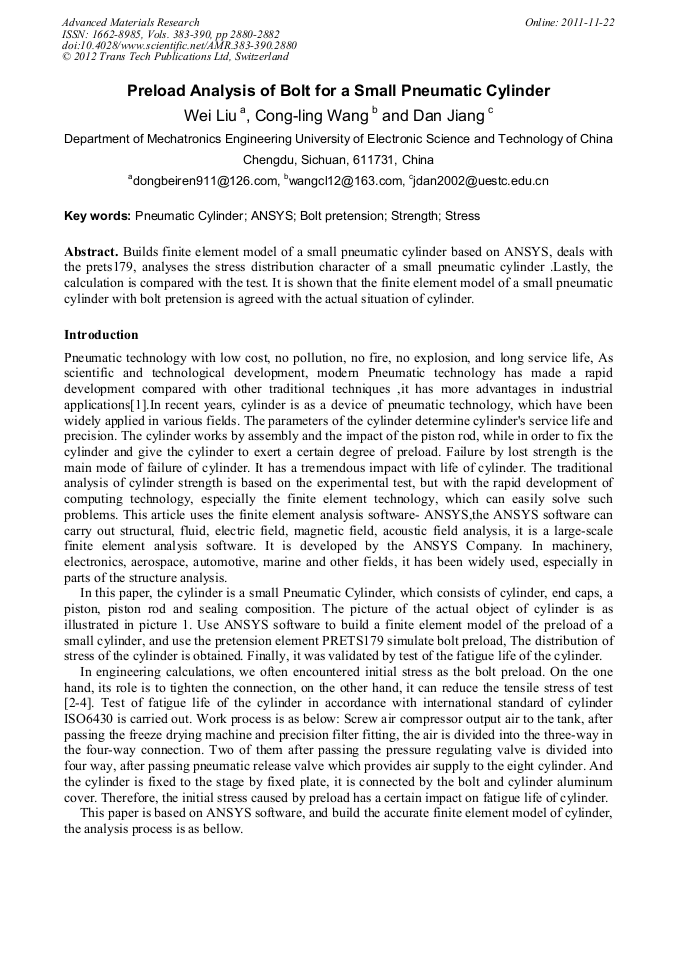

Preload Analysis of Bolt for a Small Pneumatic Cylinder

Abstract:

Builds finite element model of a small pneumatic cylinder based on ANSYS, deals with the prets179, analyses the stress distribution character of a small pneumatic cylinder .Lastly, the calculation is compared with the test. It is shown that the finite element model of a small pneumatic cylinder with bolt pretension is agreed with the actual situation of cylinder.
