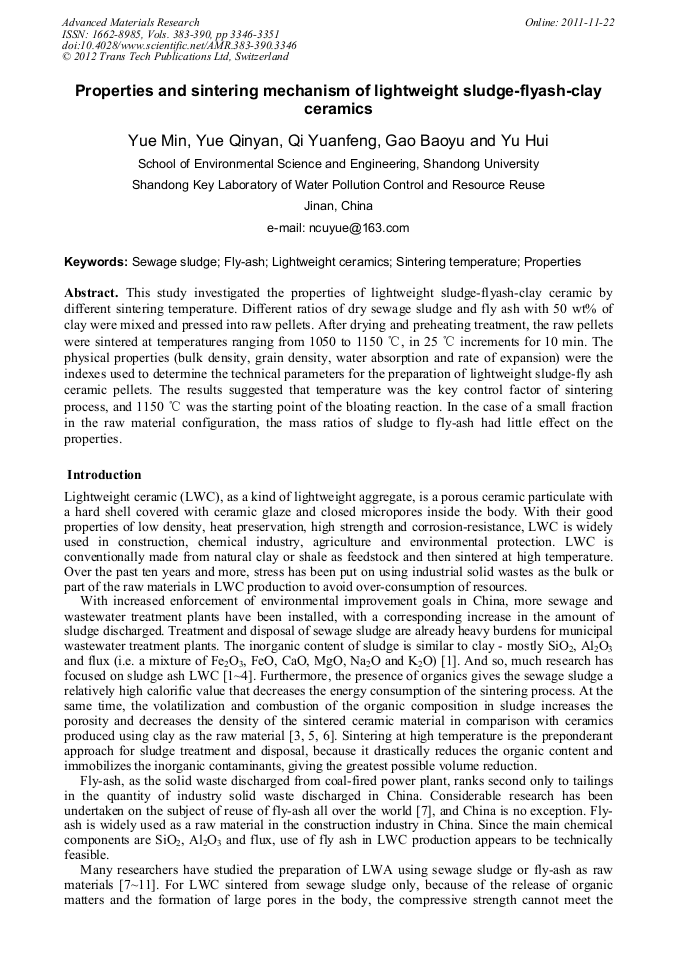

Properties and Sintering Mechanism of Lightweight Sludge-Flyash-Clay Ceramics

Abstract:

This study investigated the properties of lightweight sludge-flyash-clay ceramic by different sintering temperature. Different ratios of dry sewage sludge and fly ash with 50 wt% of clay were mixed and pressed into raw pellets. After drying and preheating treatment, the raw pellets were sintered at temperatures ranging from 1050 to 1150 °C, in 25 °C increments for 10 min. The physical properties (bulk density, grain density, water absorption and rate of expansion) were the indexes used to determine the technical parameters for the preparation of lightweight sludge-fly ash ceramic pellets. The results suggested that temperature was the key control factor of sintering process, and 1150 °C was the starting point of the bloating reaction. In the case of a small fraction in the raw material configuration, the mass ratios of sludge to fly-ash had little effect on the properties.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 3346-3351
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.3346
• Online since: November 2011
• Authors: Min Yue, Qin Yan Yue, Yuan Feng Qi, Baoyu Gao, Hui Yu
• Keywords: Fly Ash (FA), Lightweight Ceramics, Property Analysis, Sewage Sludge, Sintering Temperature

References

[1] C. C. Tsai, K. S. Wang, and I. J. Chiou, Effect of SiO2 –Al2O3 –flux ratio change on the bloating characteristics of lightweight aggregate material produced from recycled sewage sludge, J. Hazardous Materials. vol. B134, 2006, p.87–93.

DOI: 10.1016/j.jhazmat.2005.10.035

[2] K. S. Wang, I. J. Chiou, C. H. Chen, D. Wang, Lightweight properties and pore structure of foamed material made from sewage sludge ash, Construction and Building Materials. vol. 19, 2005, p.627–633.

DOI: 10.1016/j.conbuildmat.2005.01.002

[3] I. J. Chiou, K. S. Wang, C. H. Chen, Y. T. Lin, Lightweight aggregate made from sewage sludge and incinerated ash, Waste Management. vol. 26, 2006, p.1453–1461.

DOI: 10.1016/j.wasman.2005.11.024

[4] I. Merino, L. F. Arevalo, F. Romero, Characterization and possible uses of ashes from wastewater treatment plants, Waste Management. vol. 25, 2005, p.1046–1054.

DOI: 10.1016/j.wasman.2004.12.023

[5] K. J. Mun, Development and test of lightweight aggregate using sewage sludge for nonstructural concrete, Construction and Building Materials. vol. 21, 2007, p.1583–1588.

DOI: 10.1016/j.conbuildmat.2005.09.009

[6] S. N. Monteiro, J. Alexandre, J. I. Margem, Incorporation of sludge waste from water treatment plant into red ceramic, J. Construction and Building Materials. vol. 22, 2008, pp.1281-1287.

DOI: 10.1016/j.conbuildmat.2007.01.013

[7] Ahmaruzzaman, A review on the utilization of fly ash, Progress in Energy and Combustion Science. vol. 36, 2010, p.327–363.

DOI: 10.1016/j.pecs.2009.11.003

[8] B. González-Corrochano, J. Alonso-Azcárate, M. Rodas, Characterization of lightweight aggregates manufactured from washing aggregate sludge and fly ash, Resources, Conservation and Recycling. vol. 53, 2009, p.571–581.

DOI: 10.1016/j.resconrec.2009.04.008

[9] X. R. Wang, Y. Y. Jin, Z. Y. Wang, Y. F. Nie, Q. F. Huang, Q. Wang, Development of lightweight aggregate from dry sewage sludge and coal ash, Waste Management. vol. 29, 2009, p.1330–1335.

DOI: 10.1016/j.wasman.2008.09.006

[10] S. G. Hu, T. T. Yang, F. Z. Wang, Influence of mineralogical composition on the properties of lightweight aggregate, Cement & Concrete Composites. vol. 32, 2010, p.15–18.

DOI: 10.1016/j.cemconcomp.2009.10.001

[11] G. R. Xu, J. L. Zou, G.B. Li, Effect of sintering temperature on the characteristics of sludge ceramsite, Journal of Hazardous Materials. vol. 150, 2008, p.394–400.

DOI: 10.1016/j.jhazmat.2007.04.121

[12] X. R. Wang, Y. Y. Jin, Z. Y. Wang, R. B. Mahar, Y. F. Nie, A research on sintering characteristics and mechanisms of dried sewage sludge, Journal of Hazardous Materials. vol. 160, 2008, p.489–494.

DOI: 10.1016/j.jhazmat.2008.03.054

[13] Y. F. Qi, Q. Y. Yue, S. X. Han, Preparation and mechanism of Ultra-Lightweight Ceramics produced from sewage sludge, Journal of Hazardous Materials. vol. 176, 2010, p.76–84.

DOI: 10.1016/j.jhazmat.2009.11.001

[14] Administration of Quality and Technology Supervision of China, Lightweight aggregates and its test methods, Part 2：Test methods for lightweight aggregates (GB/T 17431. 2-1998). (1998).

[15] R. Gennaro, A. Langella, M. D'Amore, Use of zeolite-rich rocks and waste materials for the production of structural lightweight concretes, Applied Clay Science. vol. 41, 2008, pp.61-72.

DOI: 10.1016/j.clay.2007.09.008
