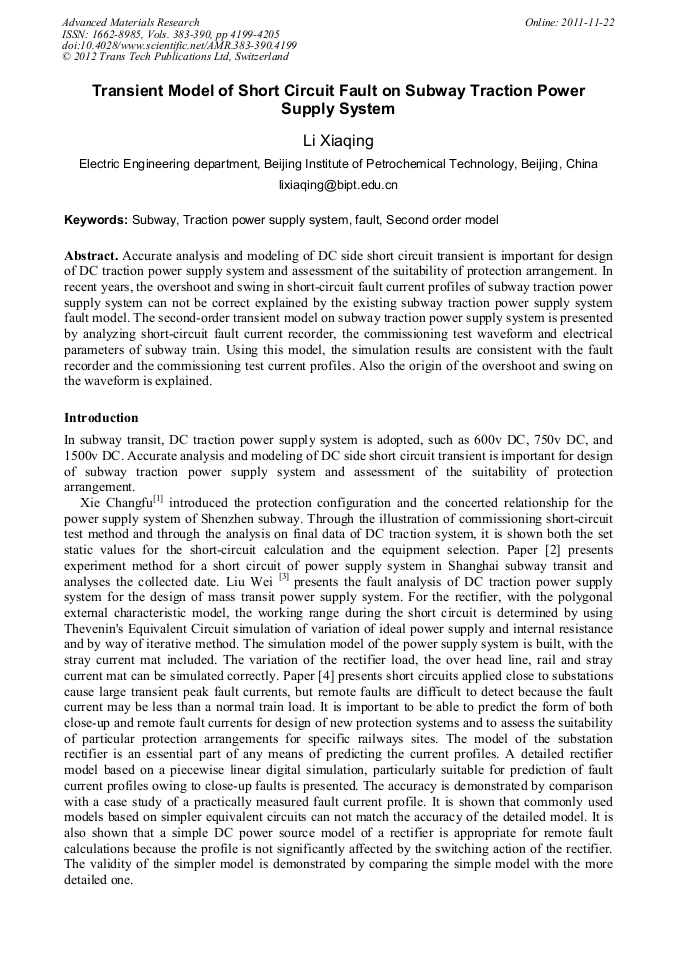

Transient Model of Short Circuit Fault on Subway Traction Power Supply System

Abstract:

Accurate analysis and modeling of DC side short circuit transient is important for design of DC traction power supply system and assessment of the suitability of protection arrangement. In recent years, the overshoot and swing in short-circuit fault current profiles of subway traction power supply system can not be correct explained by the existing subway traction power supply system fault model. The second-order transient model on subway traction power supply system is presented by analyzing short-circuit fault current recorder, the commissioning test waveform and electrical parameters of subway train. Using this model, the simulation results are consistent with the fault recorder and the commissioning test current profiles. Also the origin of the overshoot and swing on the waveform is explained.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 4199-4205
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.4199
• Online since: November 2011
• Authors: Xia Qing Li
• Keywords: Fault, Second Order Model, Subway, Traction Power Supply System

References

[1] C. F. Xie, Study on Short-circuit Resistant Performance of Power Supply System in Shenzhen Metro Vehicles, Electric Drive for Locomotives. Beijing, № . 1. 2007, pp.42-45, Jan. (2007).

[2] B.W. Su, Y.K. Zhang, A short-circuit test of the power supply system in Shanghai urban rail line 3, Urban Railway Transit Research. Shanghai, No. 1 2005, pp.68-70.

[3] W. Liu，Q. ZH. Li，L.W. Li, Steady-state Short-circuit Calculation of DC Traction Supply System Based on Polygonal External Characteristic, Electric Drive for Locomotives, Beijing No. 1. 2008, Jan. 2008. pp.61-64.

[4] J. C. Brown, J. Allan, B. Mellitt, Six-pulse three-phase rectifier bridge models for calculating closeup and remote short circuit transients on DC supplied railways, IEE PROC.B. Vol. 138, No. 6, NOV 1991, pp.303-340.

DOI: 10.1049/ip-b.1991.0037

[5] W. Kong, L.J. Qin, Q.X. Yang, F.H. Ding, DC Side Short Circuit Transient Simulation of DC Traction Power Supply System, IEEE 2004 International Conference on Power System Technology, Singapore, 2004, pp.182-196.

DOI: 10.1109/icpst.2004.1459989

[6] J. C. Brown, J. Allan, B. Mellitt, Calculation of remote short circuit fault currents for DC railways, IEE Proc. B. vol. 139. No. 4, 1992, pp.289-294.

DOI: 10.1049/ip-b.1992.0034

[7] S.W. Yu, X. SH. Yang, L.X. Han, W. Zhang, Urban Rail Transit Design Principles and Application of Power System,. Southwest Jiaotong University Press, Chengdu, (2008).

[8] W.G. Chen, R.J. Ding, Design of Electric Drive System for Localized Metro Vehicle in Beijing, , Electric Drive for Locomotives, №4, 2006, July, 2006, pp.31-36.
