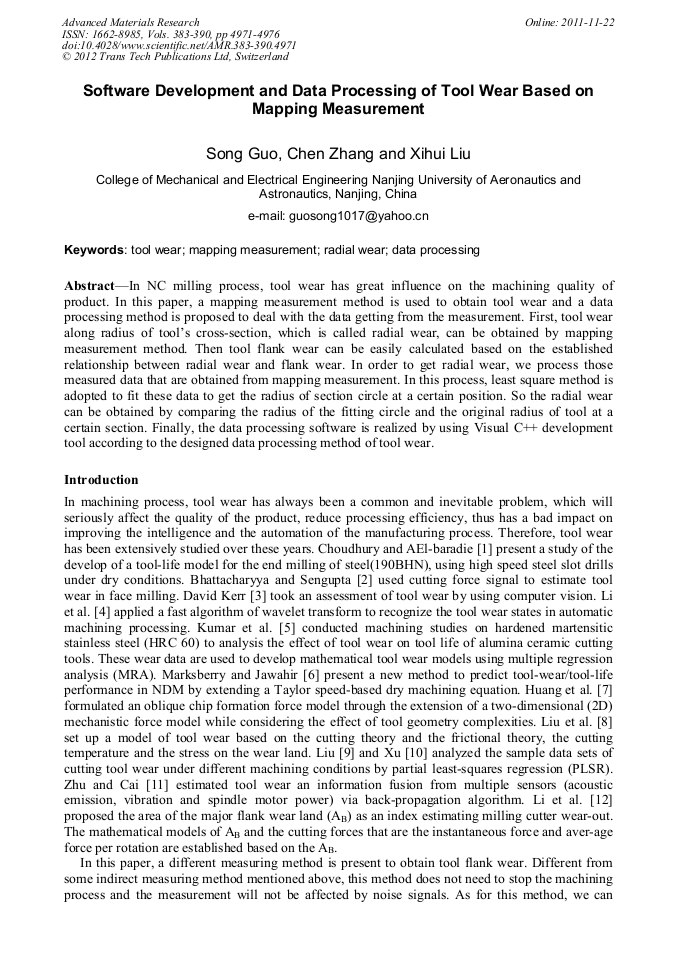

Software Development and Data Processing of Tool Wear Based on Mapping Measurement

Abstract:

In NC milling process, tool wear has great influence on the machining quality of product. In this paper, a mapping measurement method is used to obtain tool wear and a data processing method is proposed to deal with the data getting from the measurement. First, tool wear along radius of tool’s cross-section, which is called radial wear, can be obtained by mapping measurement method. Then tool flank wear can be easily calculated based on the established relationship between radial wear and flank wear. In order to get radial wear, we process those measured data that are obtained from mapping measurement. In this process, least square method is adopted to fit these data to get the radius of section circle at a certain position. So the radial wear can be obtained by comparing the radius of the fitting circle and the original radius of tool at a certain section. Finally, the data processing software is realized by using Visual C++ development tool according to the designed data processing method of tool wear.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 4971-4976
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.4971
• Online since: November 2011
• Authors: Song Guo, Chen Zhang, Xi Hui Liu
• Keywords: Data Processing, Mapping Measurement, Radial Wear, Tool Wear

References

[1] I. A Choudhury and M. AEl-baradie, Tool-life prediction model by design of experiments for turning high strength steel(290 BHN), Journal of Materials Processing Technology, Vol. 77, 1998, pp.319-326.

DOI: 10.1016/s0924-0136(97)00435-4

[2] P. Bhattacharyya, D. Sengupta and S. Mukhopadhyay, Cutting force-based real-time estimation of tool wear in face milling using a combination of signal processing techniques, Mechanical Systems and Signal Processing, Vol. 21, No. 6, 2007, pp.2665-2683.

DOI: 10.1016/j.ymssp.2007.01.004

[3] David Kerr, James Pengilley and Robert Garwood, Assessment and visualization of machine tool wear using computer vision, Int J Adv Manuf Technol, Vol. 28, 2006, p.781–791.

DOI: 10.1007/s00170-004-2420-0

[4] Weihong Li, Weiguo Gong, T. Obikawa and T. Shirakashi, A method of recognizing tool-wear states based on a fast algorithm of wavelet transform, Journal of Materials Processing Technology, Vol. 170, 2005, pp.374-380.

DOI: 10.1016/j.jmatprotec.2005.05.018

[5] A. Senthil Kumar, A. Raja Durai and T. Sornakumar, The effect of tool wear on tool life of alumina-based ceramic cutting tools while machining hardened martensitic stainless steel, Journal of Materials Processing Technology, Vol. 173, 2006, pp.151-156.

DOI: 10.1016/j.jmatprotec.2005.11.012

[6] P. W. Marksberry, I. S. Jawahir, A comprehensive tool-wear/tool –life performance model in the evaluation of NDM (near dry machining) for sustainable manufacturing, International Journal of Machine Tools & Manufacture, Vol. 48, 2008, pp.878-886.

DOI: 10.1016/j.ijmachtools.2007.11.006

[7] Yong Huang and Steven Y. Liang, Modeling of cutting forces under hard turing conditons considering tool wear effect, Journal of Manufacturing Science and Engineering, Vol. 127, May, 2005, pp.262-270.

DOI: 10.1115/1.1852571

[8] Weina Liu, Lifeng Yang and Fengming Bai, Computer simulation on prediction on cutting tool's flank wear in the cutting process, Transactions of the Chinese Society for Agricultural Machinery, Vol. 28, No. 4, Dec. 1997, pp.148-151.

[9] Qiang Liu, Partial least-squares regressive analysis and modeling for tool wear, Journal of Beijing University of Aeronautics and Astronautics, Vol. 26, No. 4, Aug. 2000, pp.457-460.

[10] Chuangwen Xu, Hualing Chen and Xiaobin Liu, Application of Partial Least-squares Regression analysis method in modeling analysis of tool wear, Journal of System Simulation, Vol. 19, No. 13, July, 2007, pp.3115-3118.

[11] Mingquan Zhu and Yongxia Cai, Sensor fusion via neural networks for estimation of tool wear, Acta Aeronautica et Astronautica Sinica, Vol. 18, No. 1, Jan. 1997, pp.120-122.

[12] Xiwen Li, Runsheng Du and Shuzi Yang, Tool wear modeling based on the area of the major flank wear land, J. Huazhong Univ. of Sci. & Tech., Vol. 29, No. 4, Apr. 2001, pp.53-56.
