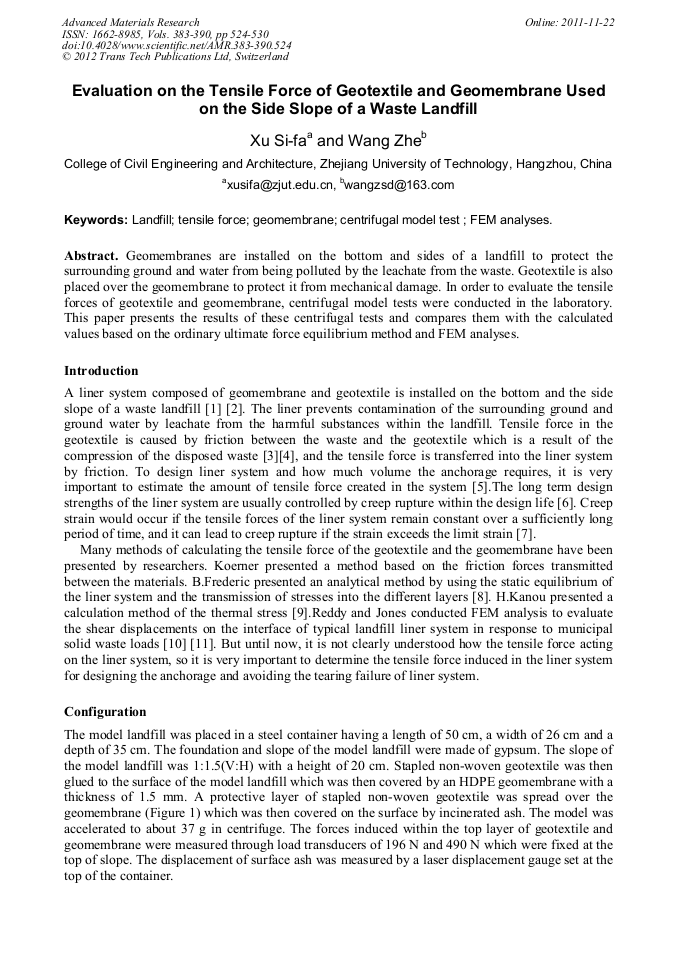

Evaluation on the Tensile Force of Geotextile and Geomembrane Used on the Side Slope of a Waste Landfill

Abstract:

Geomembranes are installed on the bottom and sides of a landfill to protect the surrounding ground and water from being polluted by the leachate from the waste. Geotextile is also placed over the geomembrane to protect it from mechanical damage. In order to evaluate the tensile forces of geotextile and geomembrane, centrifugal model tests were conducted in the laboratory. This paper presents the results of these centrifugal tests and compares them with the calculated values based on the ordinary ultimate force equilibrium method and FEM analyses.

• Periodical: Advanced Materials Research (Volumes 383-390)
• Pages: 524-530
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.383-390.524
• Online since: November 2011
• Authors: Si Fa Xu, Zhe Wang
• Keywords: Centrifugal Model Test, FEM Analyses, Geomembrane, Landfill, Tensile Force

References

[1] R.M. Koerner, Designing with Geomembrane, Prentice hall Englewood cliffs, New Jersey 07632, 1994, pp.545-549.

[2] Wang Xiequn, Wang Junqi, Development and application of geomembrane liner system in solid waste landfills, Environmental protection science, vol. 32, 2004, pp.24-26. (in Chinese).

[3] L. Briancon, H. Girard, D. Poulain, Slope stability of lining systems-experimental modeling of friction at geosynthetic interfaces, Geotextiles and Geomembranes, vol. 20(3), 2002, pp.147-172.

DOI: 10.1016/s0266-1144(02)00009-2

[4] N. Dixon, D.R.V. Jones, G.J. Fowmes, Interface shear strength variability and its use in reliability-based landfill stability analysis, , Geosynthetics International, vol. 13 (1), 2006, pp.1-14.

DOI: 10.1680/gein.2006.13.1.1

[5] D.F. Hullings, L.J. Sansone, Design Concerns and Performance of Geomembrane Anchor Trenches, Geotextiles and Geomembranes , vol. 15 (4-6), 1997, pp.403-417.

DOI: 10.1016/s0266-1144(97)00018-6

[6] S.M. Merry, J.D. Bray, S. Yoshitomi, Axisymmetric temperature- and stress-dependent creep response of 'new' and 'old' HDPE geomembranes, Geosynthetics International, vol. 12(3), 2005, pp.156-161.

DOI: 10.1680/gein.12.3.156.65375

[7] K.R. Krishnaswamy, Analysis of ductile and brittle failures from creep rupture testing of high-density polyethylene (HDPE) pipes, Polymer, vol. 46(25), 2005, pp.11664-11672.

DOI: 10.1016/j.polymer.2005.09.084

[8] B. Frederic, J.M. Rigo, A. Bolle, L. courard and C. Legrand, Lining systems stability in landfill slopes: parametric study, Proceedings of Fifth International Landfill Symposium, Vol. 3, 1995, pp.587-594.

[9] H. Kanou, Y. Doi, S. Imaizumi and M. Tsuboi, Evaluation of geomembrane stress on side slope caused by settement of wastes, Proceedings of Sixth International Landfill Symposium, Vol. 3, 1997, pp.525-534.

[10] K.R. Reddy, S. Kosgi, and S. Motan, Interface shear behavior of landfill composite liner systems: a finite element analysis, Geosynthetics International, vol. 3(2), 1996, p.247–275.

DOI: 10.1680/gein.3.0062

[11] C.N. Liu, R.B. Gilbert, Simplified method for estimating geosynthetic loads in landfill liner side slopes during filling, Geosynthetics International, vol. 10(1), 2003, pp.24-33.

DOI: 10.1680/gein.2003.10.1.24

[12] J.M. Duncan, C.Y. Chang, Nonlinear Analysis of Stress and Strain in Soil. , Journal of the Soil Mechanics and Foundations Division, ASCE, Vol. 96(SM5), 1970, p.1629～1654.

DOI: 10.1061/jsfeaq.0001458

[13] G.W. Clough, J.M. Duncan, Finite element analysis of retaining wall behavior, Journal of Soil Mechanics and Foundations Division, ASCE, vol. 97(12), 1971, p.1657–1672.

DOI: 10.1061/jsfeaq.0001713
