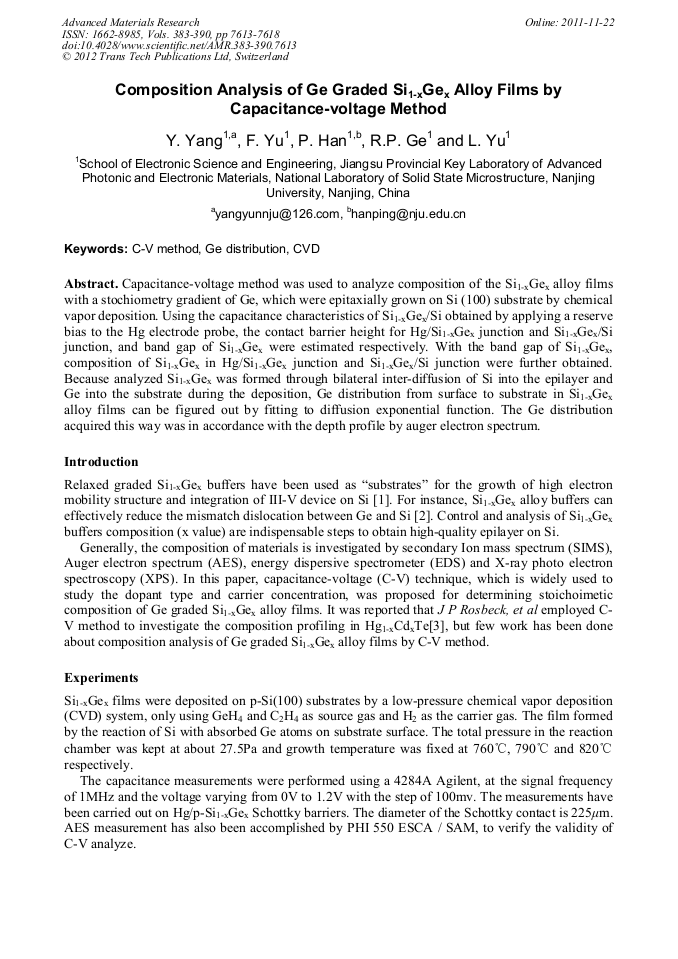

Composition Analysis of Ge Graded Si_1-xGe_x Alloy Films by Capacitance-Voltage Method

Abstract:

Capacitance-voltage method was used to analyze composition of the Si_1-xGe_x alloy films with a stochiometry gradient of Ge, which were epitaxially grown on Si (100) substrate by chemical vapor deposition. Using the capacitance characteristics of Si_1-xGe_x/Si obtained by applying a reserve bias to the Hg electrode probe, the contact barrier height for Hg/Si_1-xGe_xjunction and Si_1-xGe_x/Si junction, and band gap of SSi_1-xGe_x were estimated respectively. With the band gap of Si_1-xGe_x, composition of Si_1-xGe_x in Hg/Si_1-xGe_x junction and Si_1-xGe_x/Si junction were further obtained. Because analyzed Si_1-xGe_x was formed through bilateral inter-diffusion of Si into the epilayer and Ge into the substrate during the deposition, Ge distribution from surface to substrate in Si_1-xGe_x alloy films can be figured out by fitting to diffusion exponential function. The Ge distribution acquired this way was in accordance with the depth profile by auger electron spectrum.

You might also be interested in these eBooks

Manufacturing Science and Technology, ICMST2011

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 383-390)

Pages:

7613-7618

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.383-390.7613

Citation:

Cite this paper

Online since:

November 2011

Authors:

Y. Yang, F. Yu, Ping Han, R.P. Ge, L. Yu

Keywords:

C-V Method, CVD, Ge Distribution

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] E. A. Fitzgerald, Y. H. Xie, D. Monroe, P. J. Silverman, J. M. Kuo, A. R. Kortan, F. A. Thiel, and B. E. Weir, 1992 J. Vac. Sci. Technol. B 10 1807.

Google Scholar

[2] S. B. Samavedam, E. A. Fitzgerald, 1997 J. Appl. Phys. 81 3108.

Google Scholar

[3] J. P. Rosbeck, M. E. Haper, 1987 J. Appl. Phys. 62 1717.

Google Scholar

[4] R.H. Wang, P. Han, Q. Mei, J. Wu, R.P. Ge, Z.L. Xie, X.Q. Xiu, S.L. Gu, Y. Shi, R. Zhang, Y.D. Zheng, 2008, SPIE, 6984, 6984-2M.

Google Scholar

[5] Qteish, V. Heine, and R. J. Needs, 1992 Phys. Rev. B. 45 6534.

Google Scholar

[6] M. E. Levinshtein, S. L. Rumyantsev, M. S. Sur, 2001, Properties of Advanced semiconductor materials, pp.151-153, p.159.

Google Scholar

[7] Q. C. Ouyang, X. Chen, A. F. Tasch, L. F. Register, S. K. Banerjee, 2001 IEEE Trans. Electron. Devices, 48 1245.

Google Scholar
