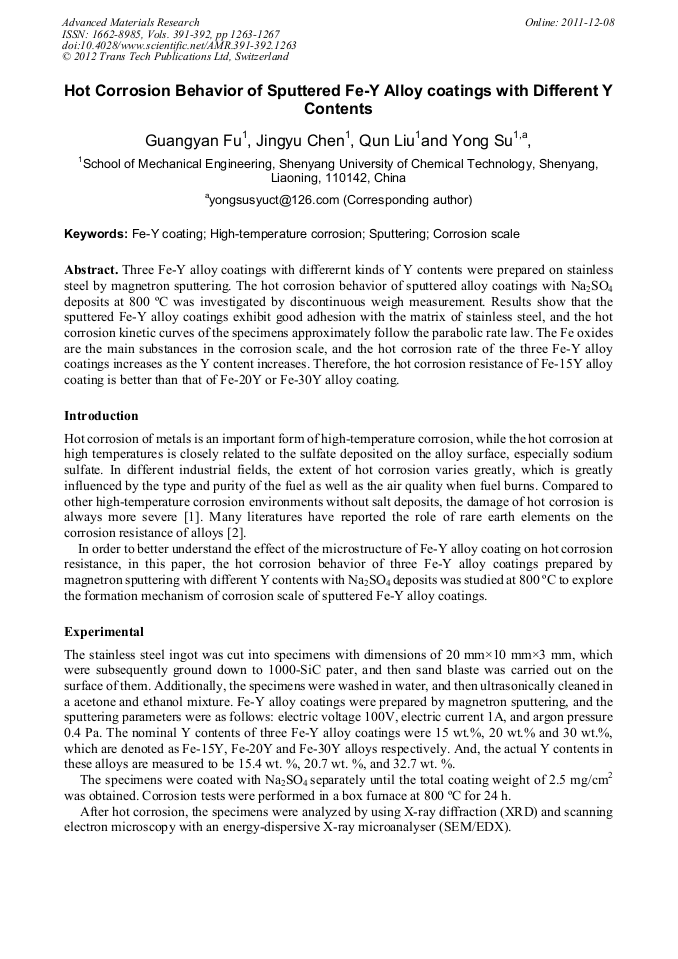

Hot Corrosion Behavior of Sputtered Fe-Y Alloy Coatings with Different Y Contents

Abstract:

Three Fe-Y alloy coatings with differernt kinds of Y contents were prepared on stainless steel by magnetron sputtering. The hot corrosion behavior of sputtered alloy coatings with Na2SO4 deposits at 800 °C was investigated by discontinuous weigh measurement. Results show that the sputtered Fe-Y alloy coatings exhibit good adhesion with the matrix of stainless steel, and the hot corrosion kinetic curves of the specimens approximately follow the parabolic rate law. The Fe oxides are the main substances in the corrosion scale, and the hot corrosion rate of the three Fe-Y alloy coatings increases as the Y content increases. Therefore, the hot corrosion resistance of Fe-15Y alloy coating is better than that of Fe-20Y or Fe-30Y alloy coating.

• Periodical: Advanced Materials Research (Volumes 391-392)
• Pages: 1263-1267
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.391-392.1263
• Online since: December 2011
• Authors: Guang Yan Fu, Jing Yu Chen, Qun Liu, Yong Su
• Keywords: Corrosion Scale, Fe-Y Coating, High-Temperature Corrosion, Sputtering

References

[1] M.S. Li: The High-temperature Corrosion of Metal, in Chinese (Metallurgical Industry Press, Beijing 2001).

[2] Y. Liang, Y. Y. Long, G.Y. Fu: Si Chuan Chemical Industry Vol. 7, No. 3 (2004), P. 37.

[3] Liu Z, Gao W, Dahm K, et al: Script Materialia Vol. 37 (1997), p.1551.

[4] Wang F: Oxidation of Metals Vol. 48, (1997), p.215.

[5] K.P. Yan, K.M. Chen: Process equipment Corrosion and Protection, in Chinese (Chemical Industry Press, Beijing 2009).
