Influence of Ion Current Density on the Surface Morphology of AZ31 Magnesium Alloy Irradiated by High-Intensity Pulsed Ion Beam

Peng Li; Y.X. Wang; L. Xue

doi:10.4028/www.scientific.net/AMR.391-392.868

Paper Titles

Thermal Cracking Resistance of Shotcrete Based on Temperature Matched Curing
p.849

Effect of Metakaolin Mixed with Fly Ash on the Strengths of Concrete
p.854

Preparing of the Nano ATO Heat-Insulation Glass Coating
p.859

Effect of Heat Treatment on Properties and Structural Changes of Poly(p-Phenylene Benzobisoxazole) Fiber
p.864

Influence of Ion Current Density on the Surface Morphology of AZ31 Magnesium Alloy Irradiated by High-Intensity Pulsed Ion Beam
p.868

Effect of Calcium Salts of Aliphatic Dicarboxylic Acids on the Formation of β Crystalline Form in Isotactic Poly(Propylene)
p.875

Study on Purification and Removal of Iron from Alloy Anode
p.883

Synthesis and Properties of Organosoluble and Transparent Fluorinated Aromatic Polyimides
p.888

The Feasibility Research of Using an Intensified Continuous Mini-Reactor to Replace a Discontinuous Reactor
p.894

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 391-392Influence of Ion Current Density on the Surface...

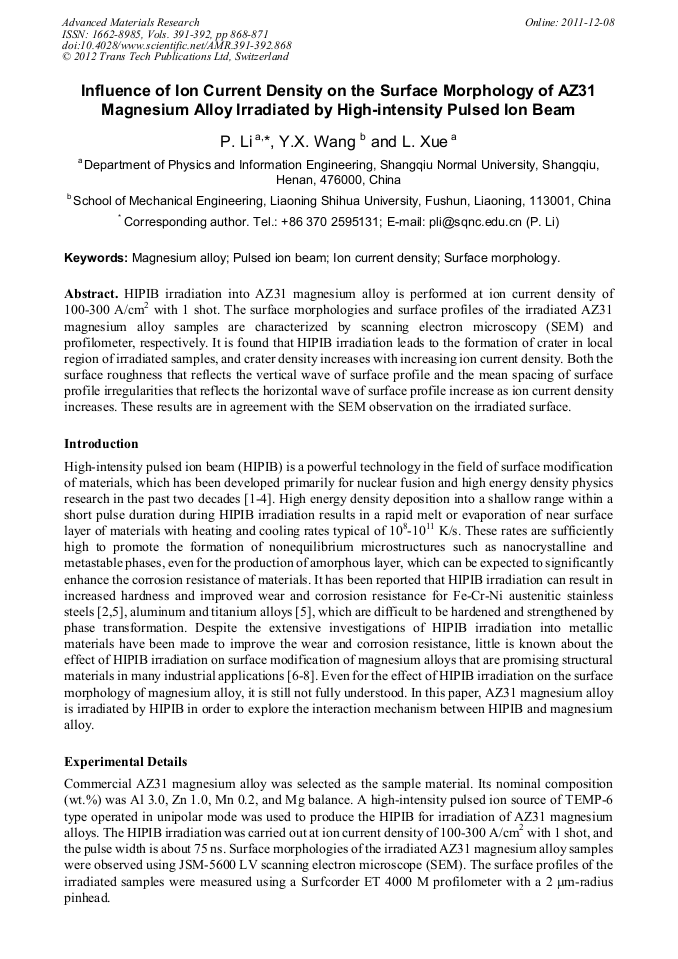

Influence of Ion Current Density on the Surface Morphology of AZ31 Magnesium Alloy Irradiated by High-Intensity Pulsed Ion Beam

Abstract:

HIPIB irradiation into AZ31 magnesium alloy is performed at ion current density of 100-300 A/cm² with 1 shot. The surface morphologies and surface profiles of the irradiated AZ31 magnesium alloy samples are characterized by scanning electron microscopy (SEM) and profilometer, respectively. It is found that HIPIB irradiation leads to the formation of crater in local region of irradiated samples, and crater density increases with increasing ion current density. Both the surface roughness that reflects the vertical wave of surface profile and the mean spacing of surface profile irregularities that reflects the horizontal wave of surface profile increase as ion current density increases. These results are in agreement with the SEM observation on the irradiated surface.
